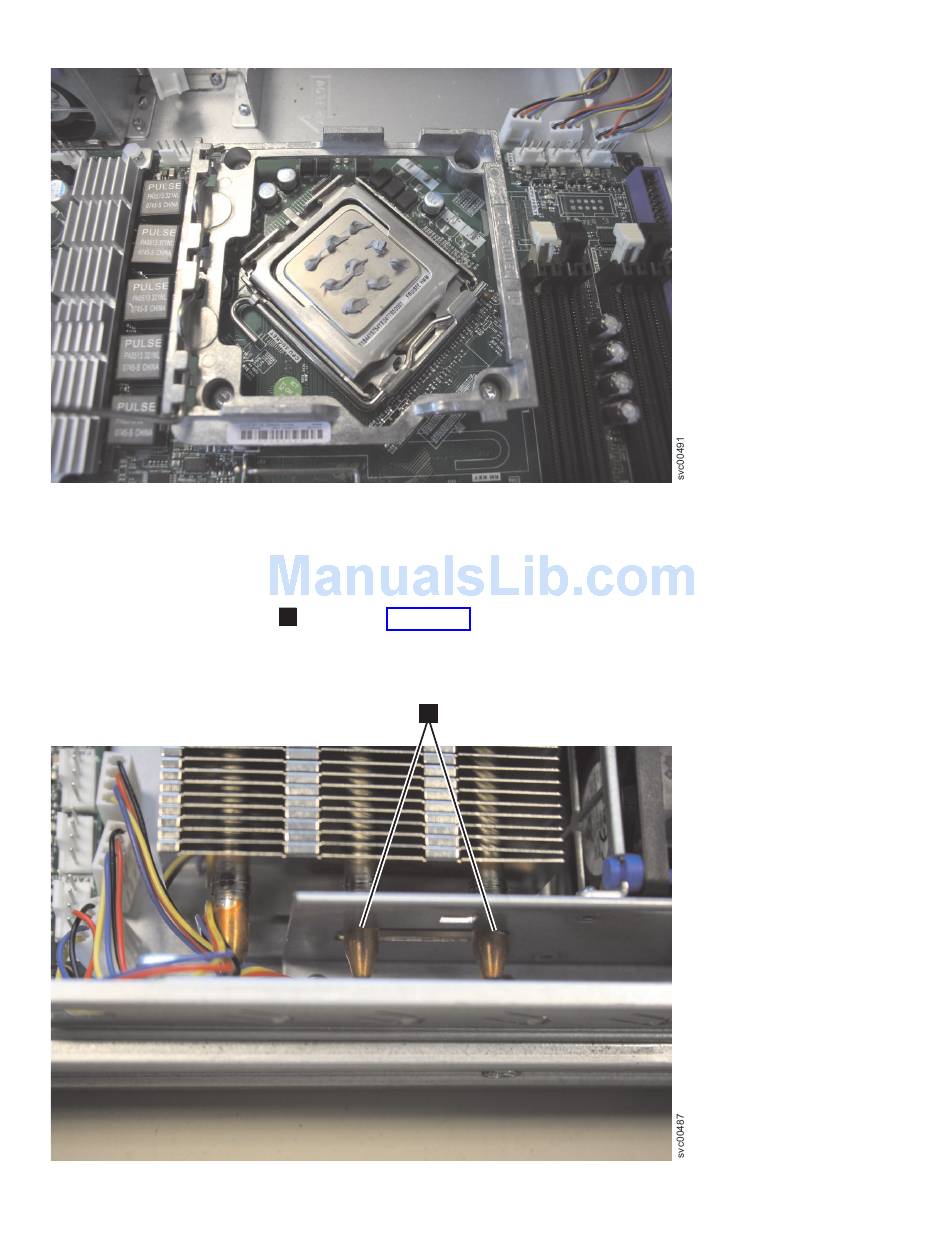

Figure 257. Complete set of nine thermal grease dots on the SAN Volume Controller 2145-8A4 microprocessor
4. Make sure that the heat-exchanger assembly release latch is fully opened.
5. With the heat-exchanger assembly at an angle, carefully align the heat-exchanger assembly with the
microprocessor and the heat exchanger retention module (socket) on the system board. Make sure
that the alignment pins
in the side of the heat-exchanger bracket) and that the flange of the heat sink rests under the lip of
the heat-exchanger socket.
Figure 258. Alignment pins on the SAN Volume Controller 2145-8A4 heat-exchanger assembly
234
IBM SAN Volume Controller Hardware Maintenance Guide
1
, shown in Figure 258, protrude through the alignment hole (the opening
