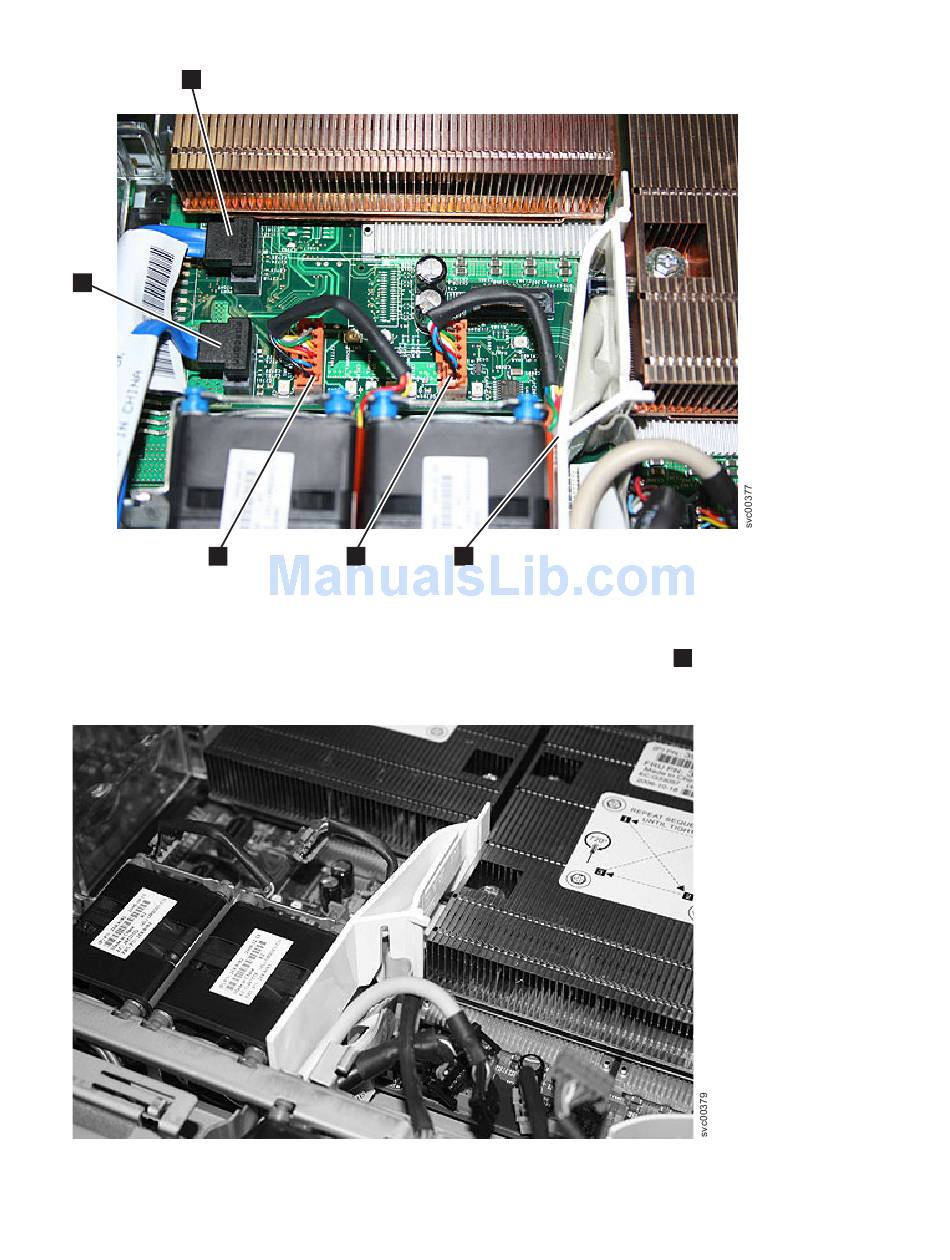

Figure 271. Connectors on the SAN Volume Controller 2145-8G4 system board
7. To ease other tasks, remove fan 2.
8. Notice how the cables are arranged within and beside the left air baffle
baffle by pulling up gently.
Figure 272. Left air baffle on the SAN Volume Controller 2145-8G4
4
5
5
. Then remove the left air
Chapter 2. Removing and replacing parts
249
