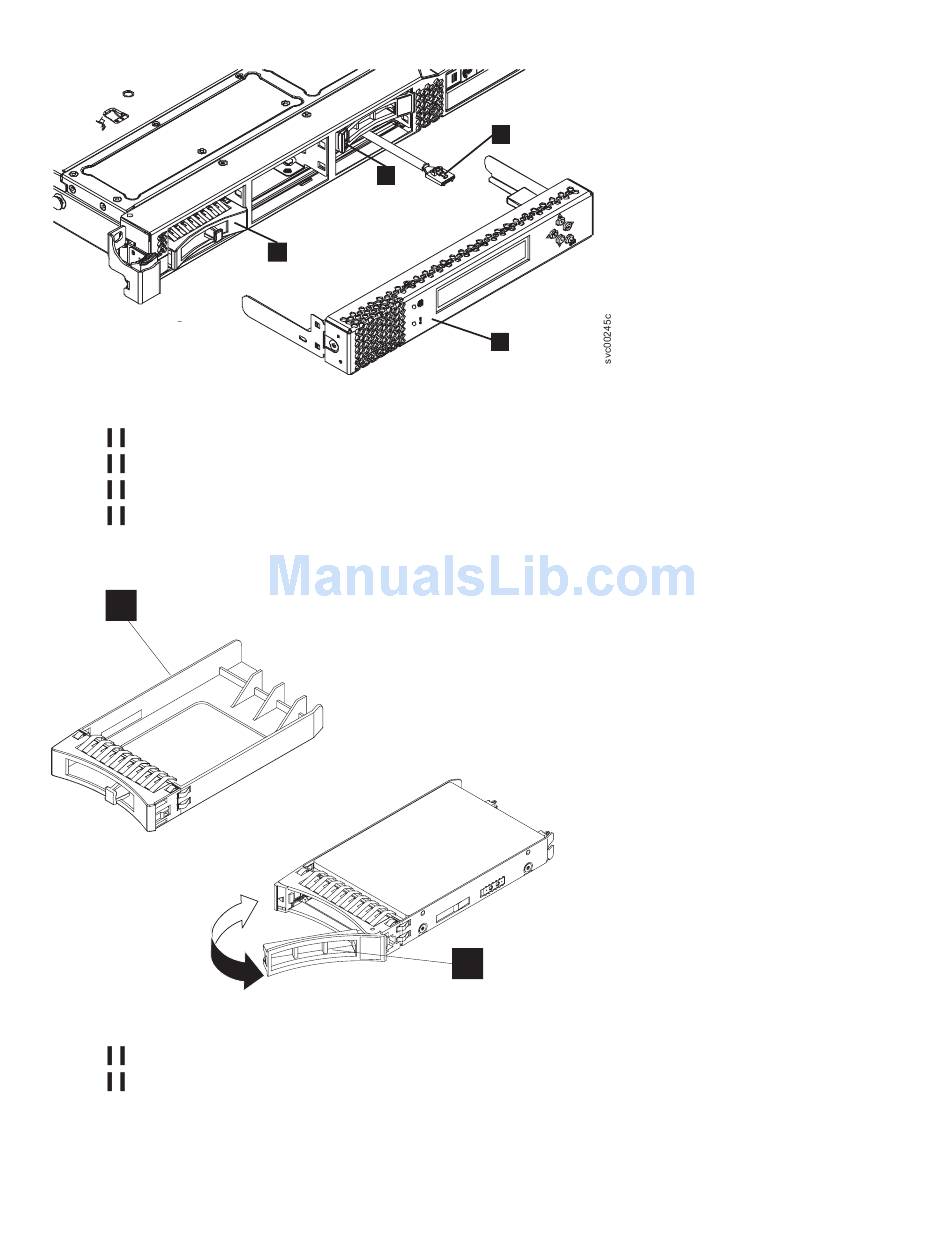

Figure 105. Boot drive for the SAN Volume Controller 2145-CF8
1 Boot-drive release latch (in drive bay 4)
2 Service-controller USB cable (in drive bay 5)
3 Service controller
4 Drive bay filler panel (shown in drive bay 1, but also in all other unused drive bays)
8. Grasp the open drive handle and slide the drive out of the drive bay.
1
Figure 106. Drive-bay filler panel and disk-drive handle for the SAN Volume Controller 2145-CF8
1 Drive bay blank EMC filler assembly (used in all empty drive bays)
2 Handle of SAS disk drive
9. If you are instructed to return the drive assembly, follow all packaging instructions, and use any
packaging materials for shipping that are supplied to you.
IDs for SAN Volume Controller 2145-CF8 disk drives
The hot-swap-drive ID that is assigned to each drive is printed on the front of the node, but is covered
by the service controller.
104
IBM SAN Volume Controller Hardware Maintenance Guide
1
4
2
3
2
