1

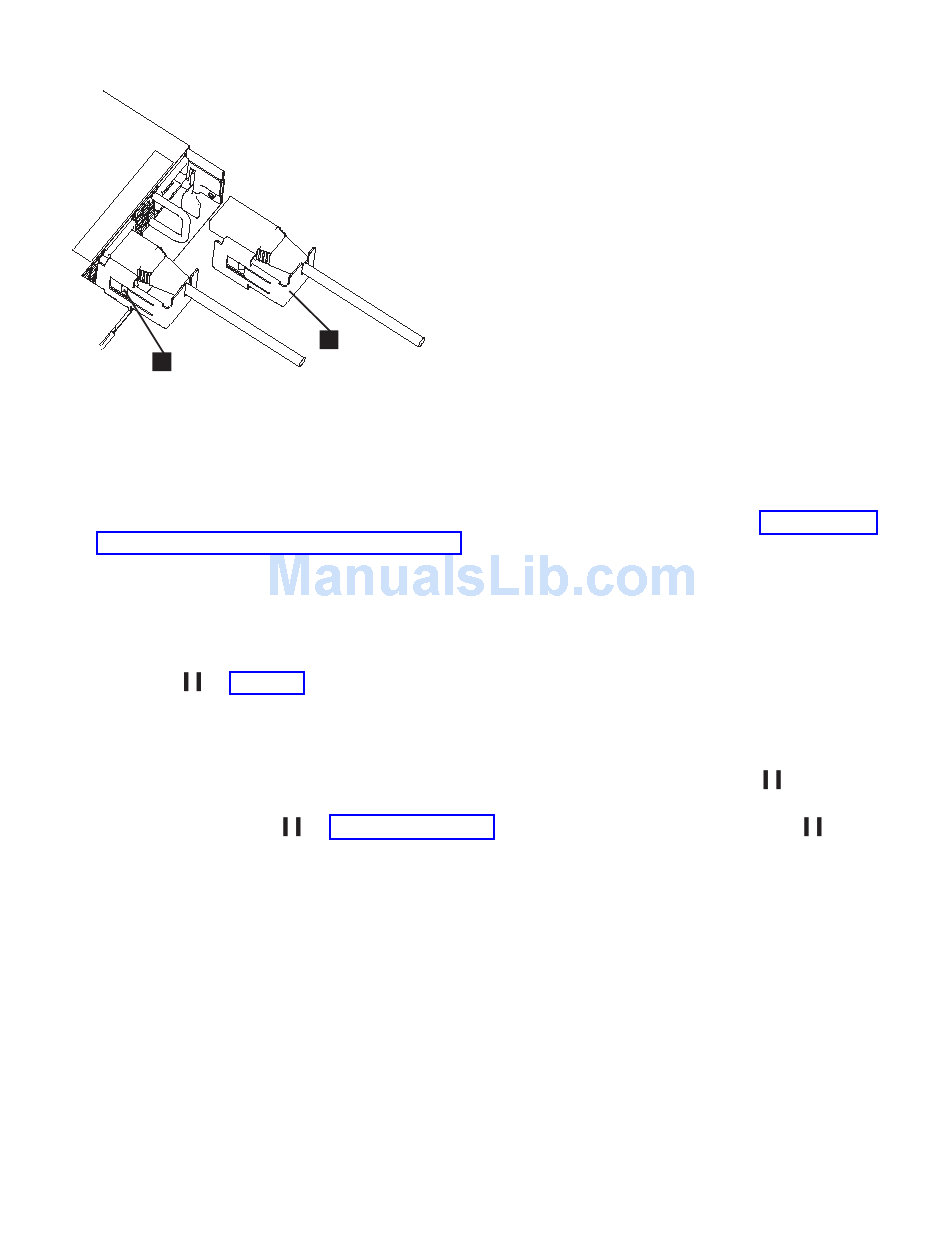

Figure 28. SAN Volume Controller 2145-CF8 cable-retention brackets
Each cable-retention bracket attaches to the back of the SAN Volume Controller 2145-CF8 node. The
brackets connect without screws.
To replace each cable-retention bracket, perform these steps:
1. If you removed the node from the rack, replace the node in the rack, as described in "Replacing the
SAN Volume Controller in a rack" on page 48.
2. If you removed any fibre-channel or Ethernet cables, use the labels you placed on each cable to
replace all fibre-channel and Ethernet cables in the same ports from which they were removed.
3. Loosely install the cable-retention bracket on a power cord by slipping the power cord into the notch
on the rear of the bracket.
4. Align the cable-retention bracket on the power cord so that the bracket is to the left of the cord, as
shown by 2 in Figure 28.
5. Align the power cord with the power connector on the power supply and the bracket with the
power-supply handle.
6. Push the power cord into the power connector on the power supply.
7. Carefully push the bracket against the power-supply handle to force the spring clip ( 1 ) over the
leading edge of the handle.
8. Lift the locking levers ( 1 in Figure 29 on page 36) on the slide rails and push the server 2 all the
way into the rack until it clicks into place.
2
