Rear
2

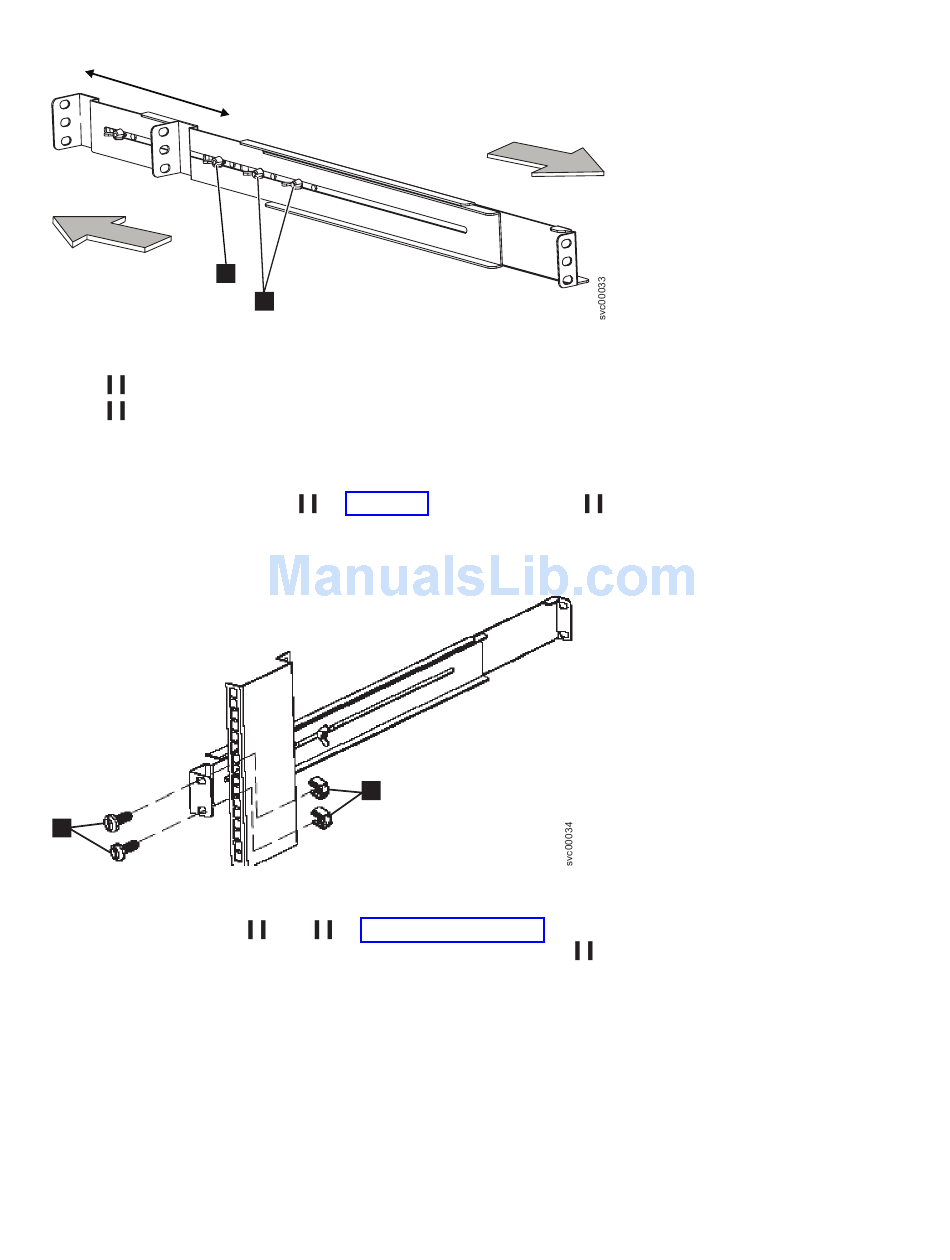

Figure 316. Adjusting the rail depth on the 2145 UPS-1U
1 Assembly wing nuts
2 Wing nut
5. Select the holes in the rail where you want to position the 2145 UPS-1U.
Note: The bottom flange of the support rail must align with the EIA mark on the rack.
6. Using two M6 × 10 screws ( 1 in Figure 317) and two clip nuts 2 , attach the rail to the rear of the
rack. The customer's rack might be different than the one shown here, and if so, might require
different clip nuts or fasteners.
1
Figure 317. Securing the rear rail on the 2145 UPS-1U
7. Install two clip nuts ( 2 and 3 in Figure 318 on page 283) to the front of the rack, then attach the
rail using just one M6 x 10 screw in the bottom mounting hole 1 .
282
IBM SAN Volume Controller Hardware Maintenance Guide
1
2
Front
