5. Push the back rail bracket 1 (Figure 65) toward the front of the rail until it stops. The rail is now at
its shortest adjustment.

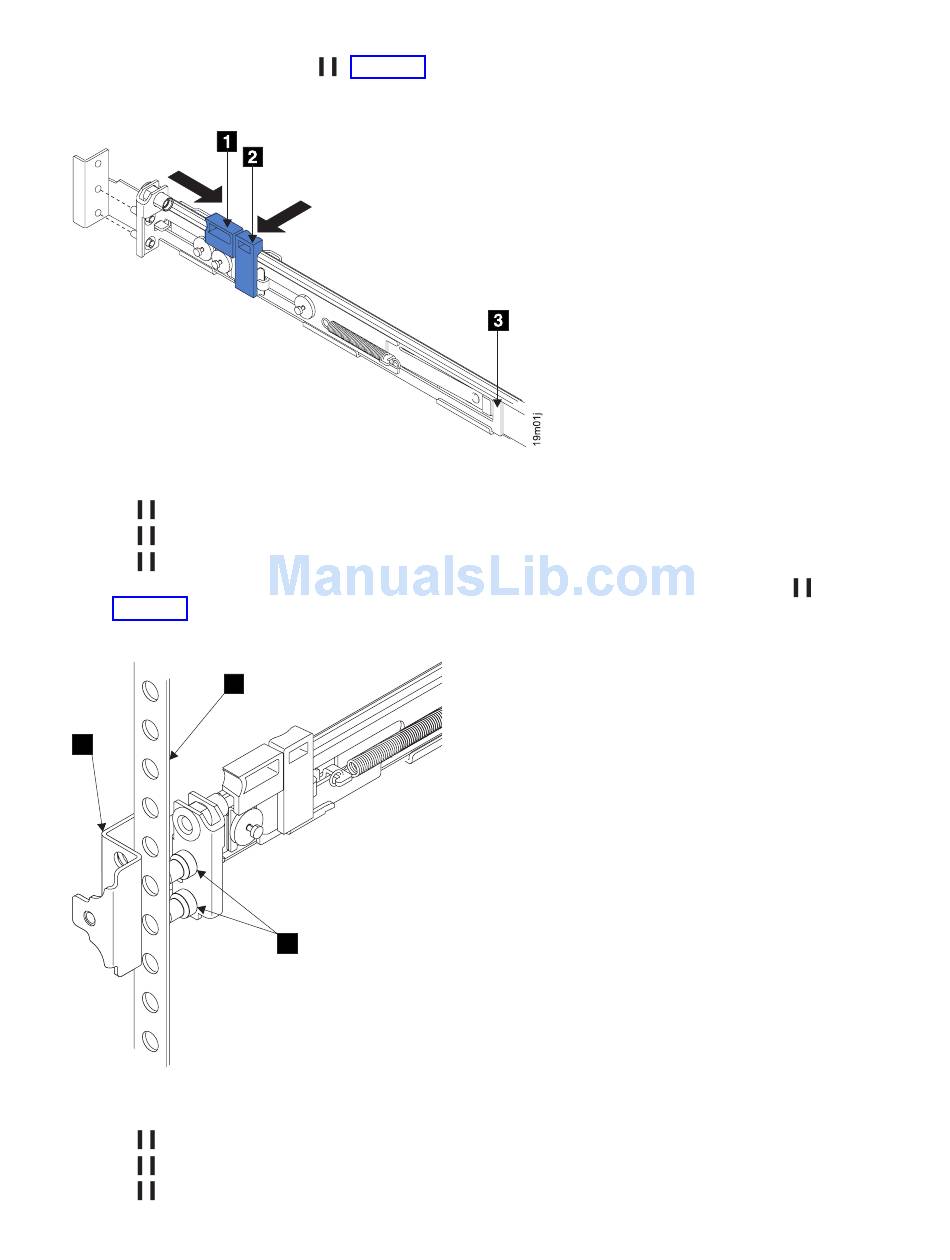

Figure 65. Opening the back latch-lock carrier assembly
1 Latch-lever
2 Latch-lock
3 Back rail bracket
6. Place the front end of the left rail in the rack cabinet. Align the top of the front bracket 1
(Figure 66) with the required EIA marking that is on the rack.
2
1
Figure 66. Installing the front end of the rail
1 Front bracket
2 Rack-mounting flange
3 Locating pins
3
Chapter 2. Removing and replacing parts
67
