DANGER
Uninterruptible power supply units contain specific hazardous materials. Observe the following
precautions if your product contains an uninterruptible power supply:
v The uninterruptible power supply contains lethal voltages. All repairs and service must be
performed only by an authorized service support representative. There are no user serviceable
parts inside the uninterruptible power supply.
v The uninterruptible power supply contains its own energy source (batteries). The output
receptacles might carry live voltage even when the uninterruptible power supply is not connected
to an ac supply.
v Do not remove or unplug the input cord when the uninterruptible power supply is turned on.
This removes the safety ground from the uninterruptible power supply and the equipment
connected to the uninterruptible power supply.
v The uninterruptible power supply is heavy because of the electronics and batteries that are
required. To avoid injury, observe the following precautions:
– Do not attempt to lift the uninterruptible power supply by yourself. Ask another service
representative for assistance.
– Remove the battery, electronics assembly, or both from the uninterruptible power supply
before removing the uninterruptible power supply from the shipping carton or installing or
removing the uninterruptible power supply in the rack.
(D007)
CAUTION:
This part or unit is heavy but has a weight smaller than 18 kg (39.7 lb). Use care when lifting,
removing, or installing this part or unit. (C008)
Perform the following steps to replace the 2145 UPS-1U:
1. Place the 2145 UPS-1U on a flat, stable surface with the front of the 2145 UPS-1U facing toward you.
2. On each side of the 2145 UPS-1U, attach the long end of a mounting bracket to the 2145 UPS-1U
using four of the supplied M3 × 6 screws ( 2 in Figure 304).

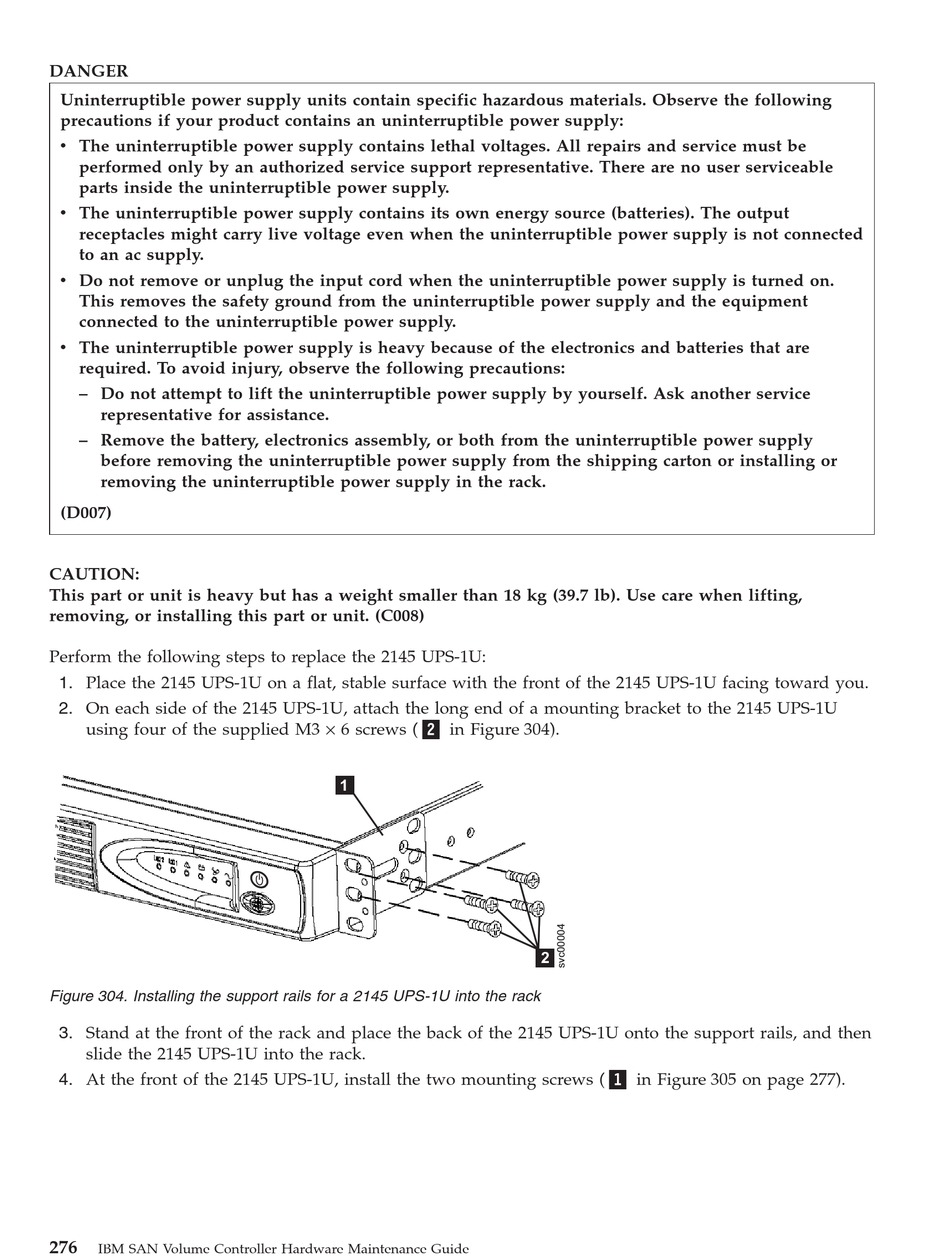

Figure 304. Installing the support rails for a 2145 UPS-1U into the rack
3. Stand at the front of the rack and place the back of the 2145 UPS-1U onto the support rails, and then
slide the 2145 UPS-1U into the rack.
4. At the front of the 2145 UPS-1U, install the two mounting screws ( 1 in Figure 305 on page 277).
276
IBM SAN Volume Controller Hardware Maintenance Guide
1
2
