Removing the support rails for the SAN Volume Controller 2145-CF8
This topic describes how to remove the SAN Volume Controller 2145-CF8 support rails.
Perform the following steps to remove the SAN Volume Controller 2145-CF8 support rails:
1. Remove the SAN Volume Controller 2145-CF8 node, as described in "Removing the SAN Volume
Controller 2145-CF8 from a rack" on page 41.
2. Remove the cable-management arm, as described in "Removing the SAN Volume Controller 2145-CF8
cable-management arm" on page 20.
3. Disengage the slide rails from the rear of the rack.
a. Push in the pins in the order shown by 1 and 2 in Figure 46.
b. Lift slightly; then push back on the rail 3 .

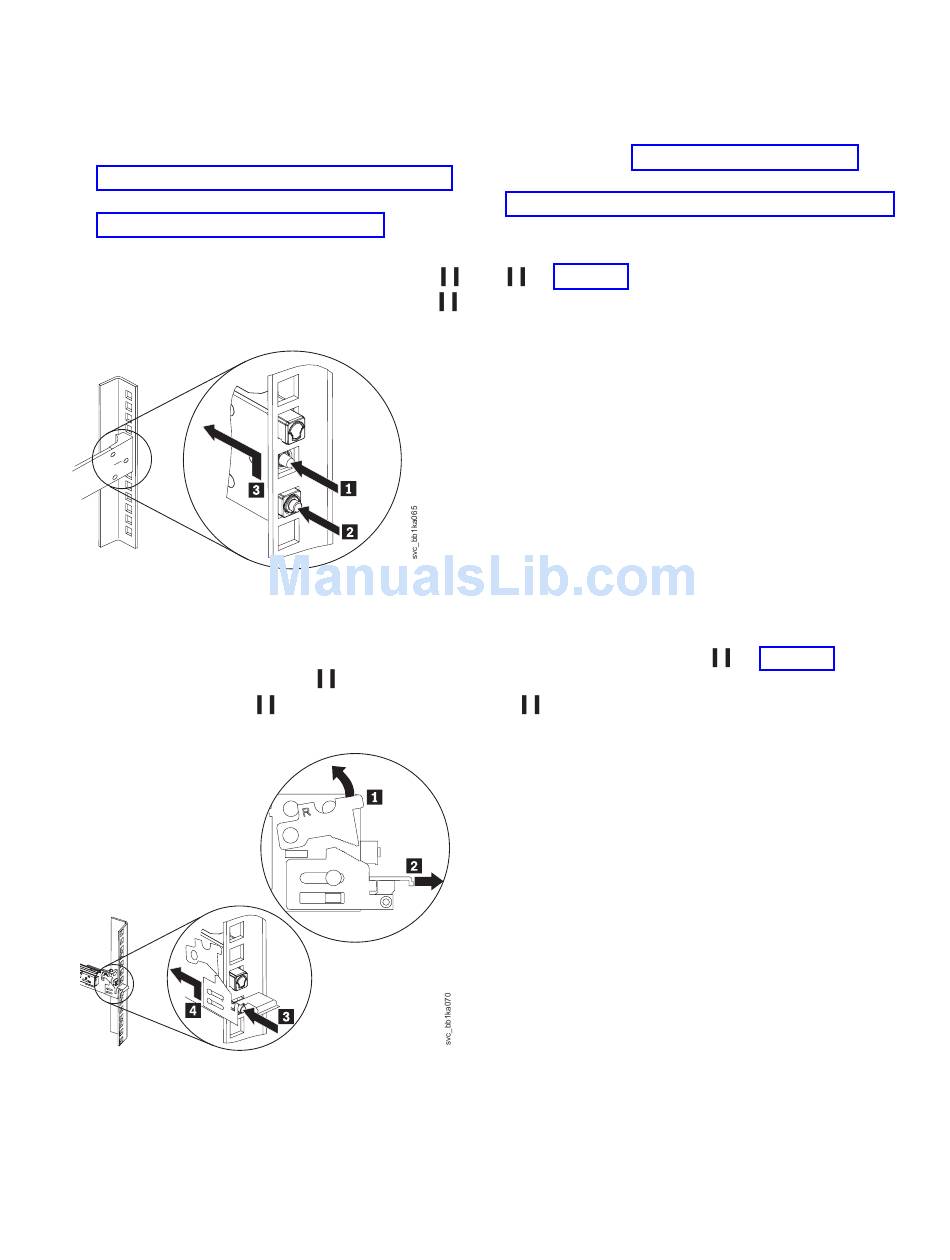

Figure 46. Disengaging the SAN Volume Controller 2145-CF8 slide rails from the rear of the rack
4. Remove the side rails from the front of the rack and remove the rails.
a. To remove the slide rails from the front of the rack, push up the front tab ( 1 in Figure 47) and
slide out the front latch 2 .
b. Lift up slightly ( 3 ); then slide the rail backward 4 . Remove the slide rail from the rack.
Figure 47. Removing the SAN Volume Controller 2145-CF8 slide rails from the rack
Removing the support rails for the SAN Volume Controller 2145-8A4
You can remove the support rails that hold the SAN Volume Controller 2145-8A4 node.
To remove the SAN Volume Controller 2145-8A4 support rails, perform the following steps:
