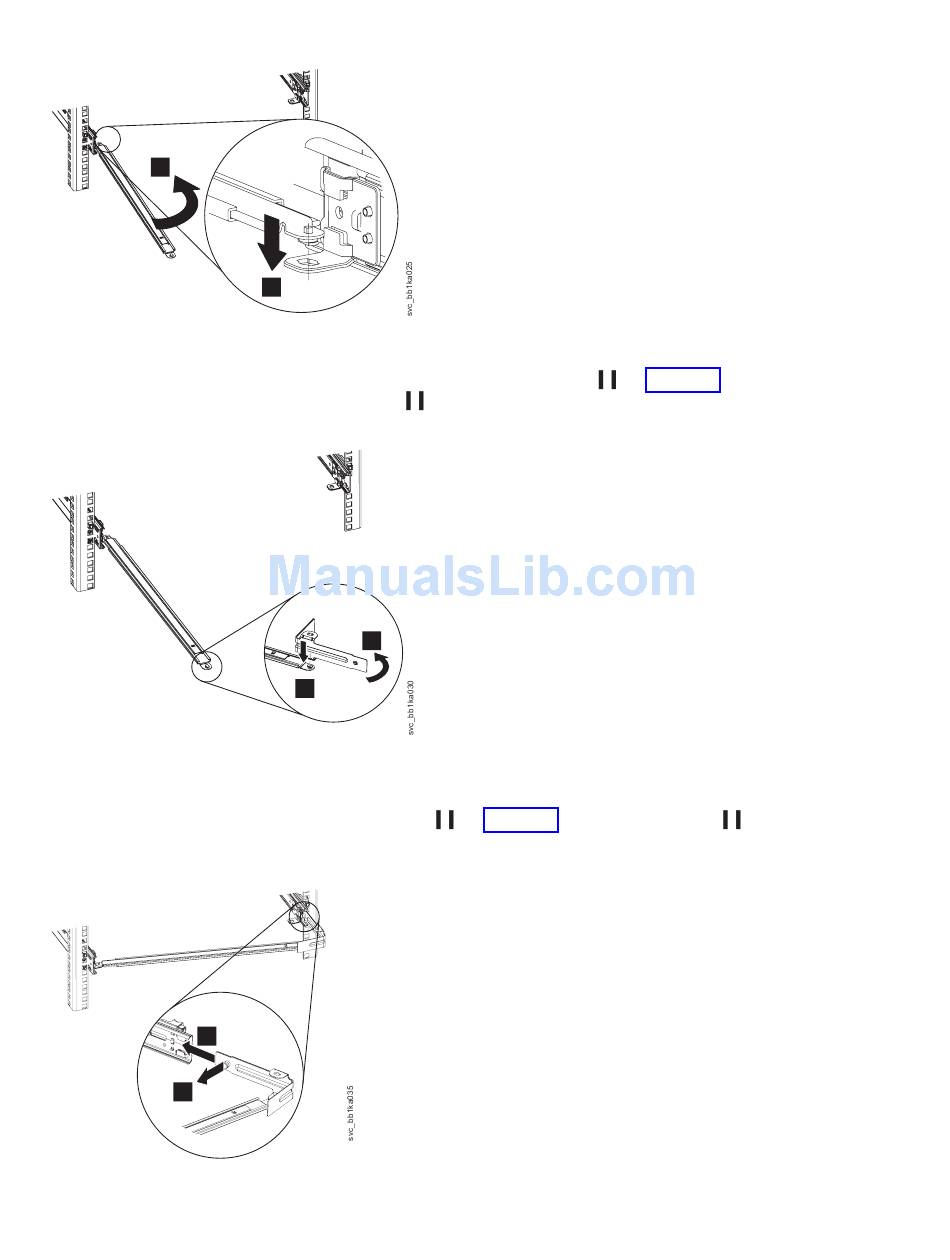

Figure 16. Rack rear: Attaching the SAN Volume Controller 2145-CF8 cable-management support arm
2. Install the L-shaped cable-management stop bracket, as shown by 1 in Figure 17 on the unattached
end of the support arm. Turn the bracket 2 to secure it to the support arm.
Figure 17. Rack rear: Installing the SAN Volume Controller 2145-CF8 cable-management stop bracket
3. To attach the other side of the support arm to the backside of the slide rail, push the blue latch on the
cable-support-arm stop bracket, as shown by 1 in Figure 18, to slide the bracket 2 into the slide
rail.
2
1
Figure 18. Attaching the free end of the SAN Volume Controller 2145-CF8 support arm
