7.
8. Remove the high-speed SAS adapter from the slot 2 riser-card connector at the rear of the system
board, as described in "Removing the SAN Volume Controller 2145-CF8 high-speed SAS adapter
assembly" on page 172.
The high-speed SAS cable is shown in Figure 192.
1

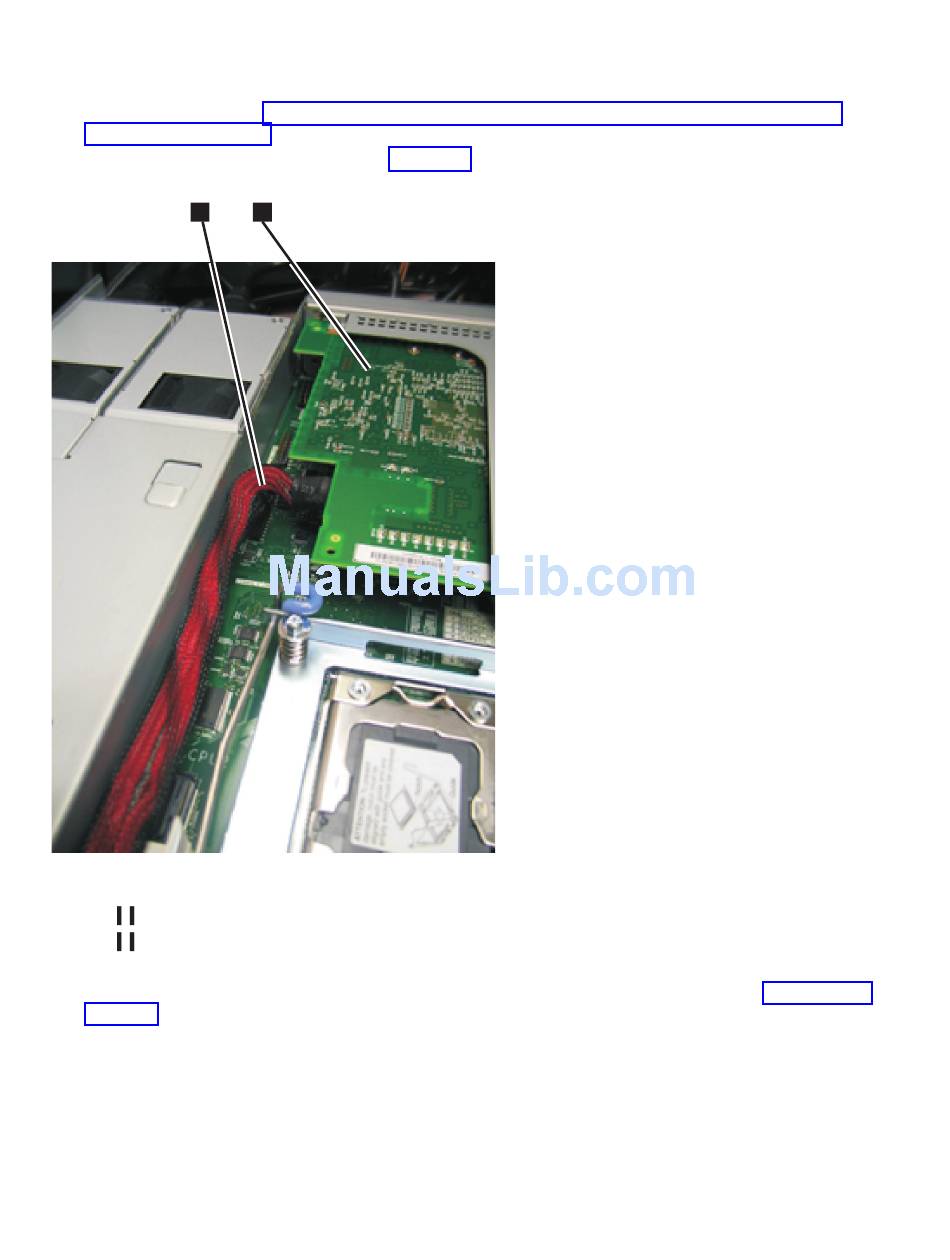

Figure 192. High-speed SAS adapter assembly and high-speed SAS cable in the SAN Volume Controller 2145-CF8
1 High-speed SAS cable plugged into the high-speed SAS adapter assembly
2 High-speed SAS adapter assembly
9. Disconnect the high-speed SAS cable from the high-speed SAS adapter.
10. Remove the cable from the blue bulkhead clip behind the disk backplane, as shown in Figure 193 on
page 177.
176
IBM SAN Volume Controller Hardware Maintenance Guide
2
