c. Pull the baffle slightly to the right to locate the two clips in the support rail.

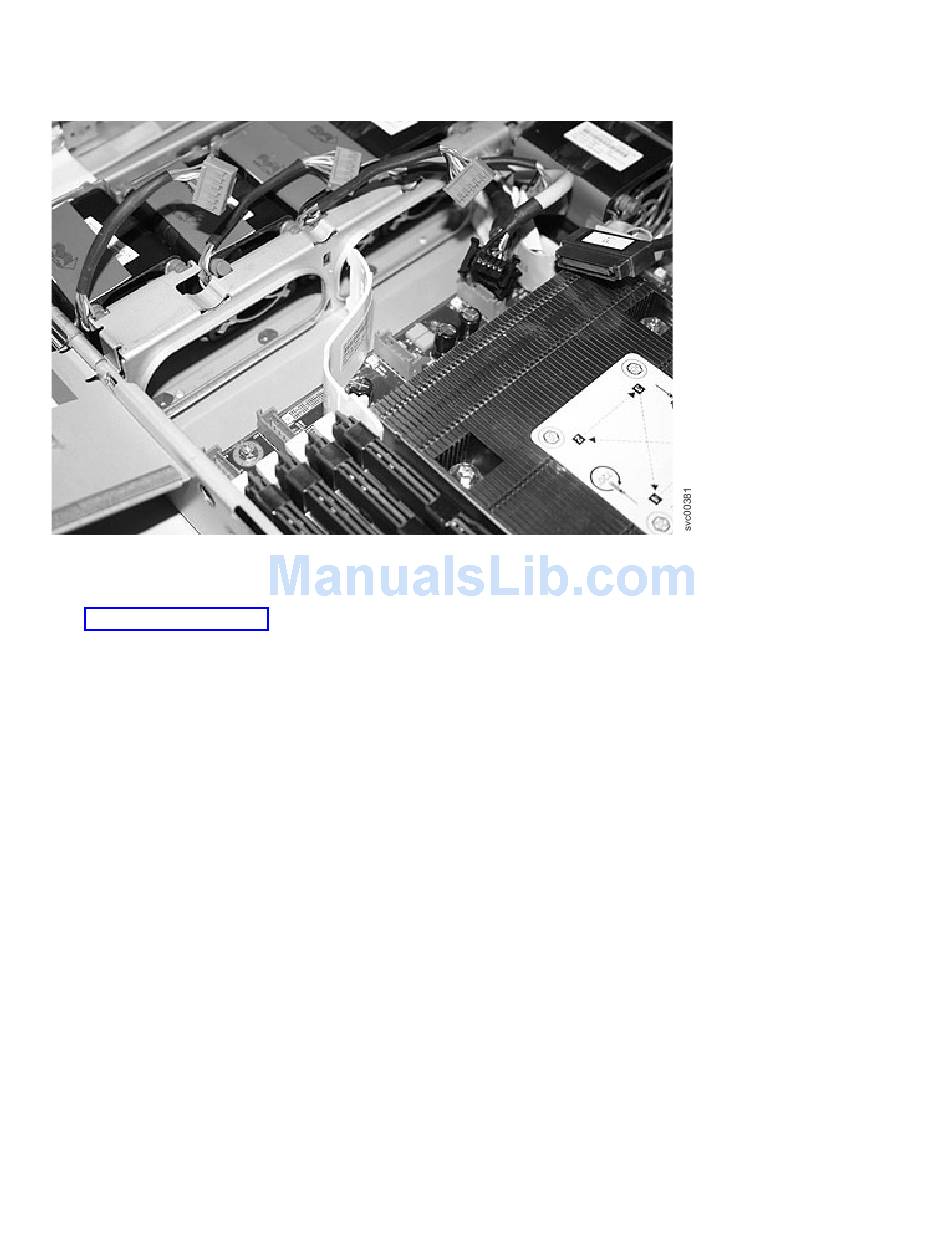

Figure 289. Right air baffle on the SAN Volume Controller 2145-8G4 system board
10. Reconnect the light path ribbon cable connector and the CD-RW ribbon cable connector, as shown in
Figure 290 on page 265.
a. Replace the video cable connector and the USB cable connector.
b. Replace the cable connectors for fans 6, 5, 4 and 3.
