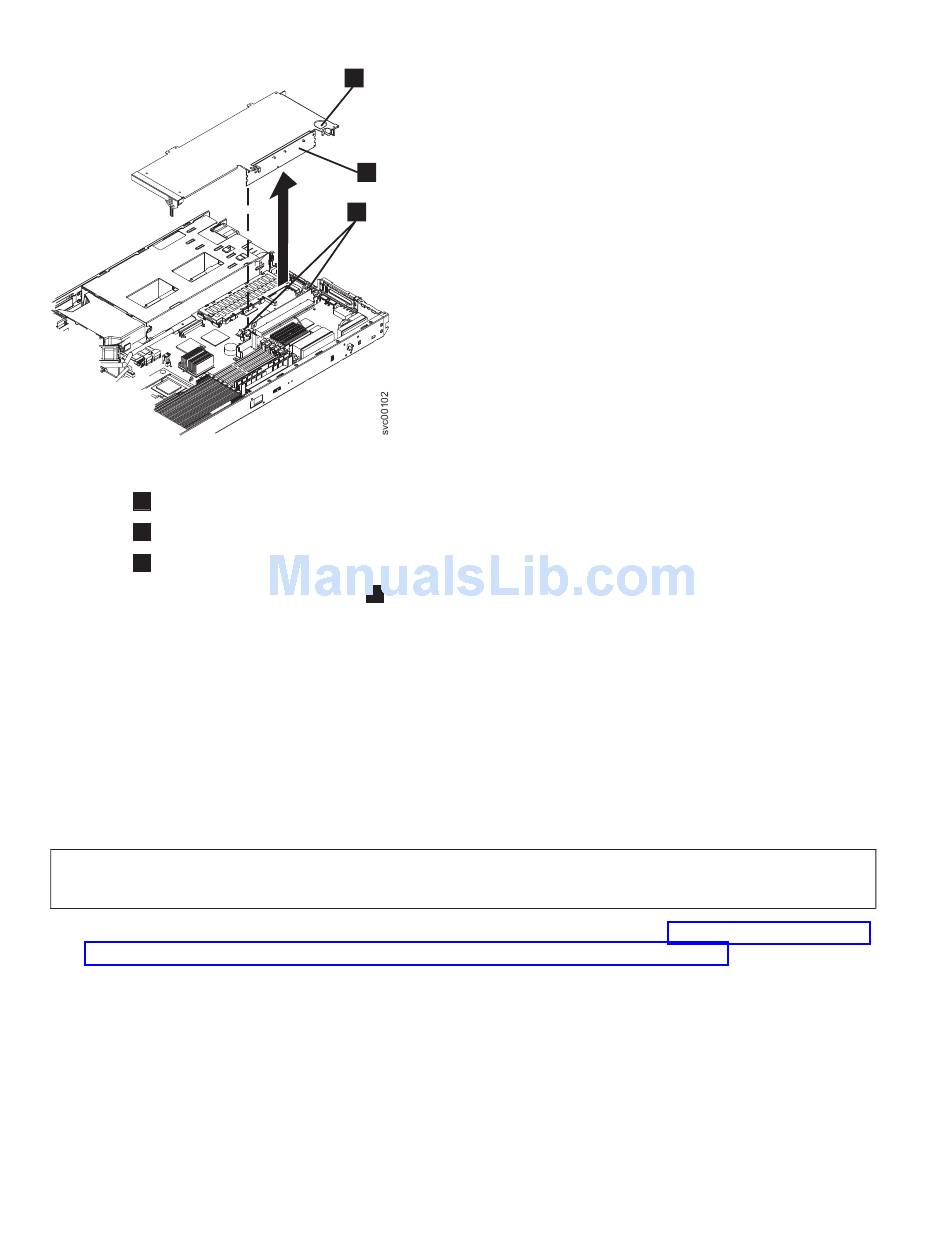

Figure 182. SAN Volume Controller 2145-8F2 or SAN Volume Controller 2145-8F4 slot 2 adapter
1
Access hole to retention latch
2
Riser card
3
Riser-card retention latches
b. Unlatch the PCI slot 2 riser card
c. Lift the riser card clear of the frame and pull the fibre-channel card from the riser-card edge
connector.
Replacing the fibre-channel adapter assembly
Use these instructions when you need to replace the adapter assemblies.
Replacing the SAN Volume Controller 2145-CF8 fibre-channel adapter assembly
Perform the following steps to replace the SAN Volume Controller 2145-CF8 fibre-channel adapter
assembly:
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords.
e
1. Remove all small form-factor pluggable (SFP) transceivers, as described in "Removing and replacing
the fibre-channel SFP transceiver on a SAN Volume Controller node" on page 160.
e
2. Grasp each end of the riser card, tilt the adapter card so that the side with the PCI riser card is
higher than the opposite side, and the back is higher than the front.
e
3. Locate the cage which houses the SFP transceivers through the hole in the back of the node.
4. Align the fibre-channel adapter riser-card connector with the connector on the system board.
168
IBM SAN Volume Controller Hardware Maintenance Guide
1
2
3
2
and pull it clear of the system-board edge connector.
