Exploded View Of The San Volume Controller 2145-Cf8 Node - IBM SAN Volume Controller Hardware Maintenance Manual

15
14
13
12
11
10
9
8
7

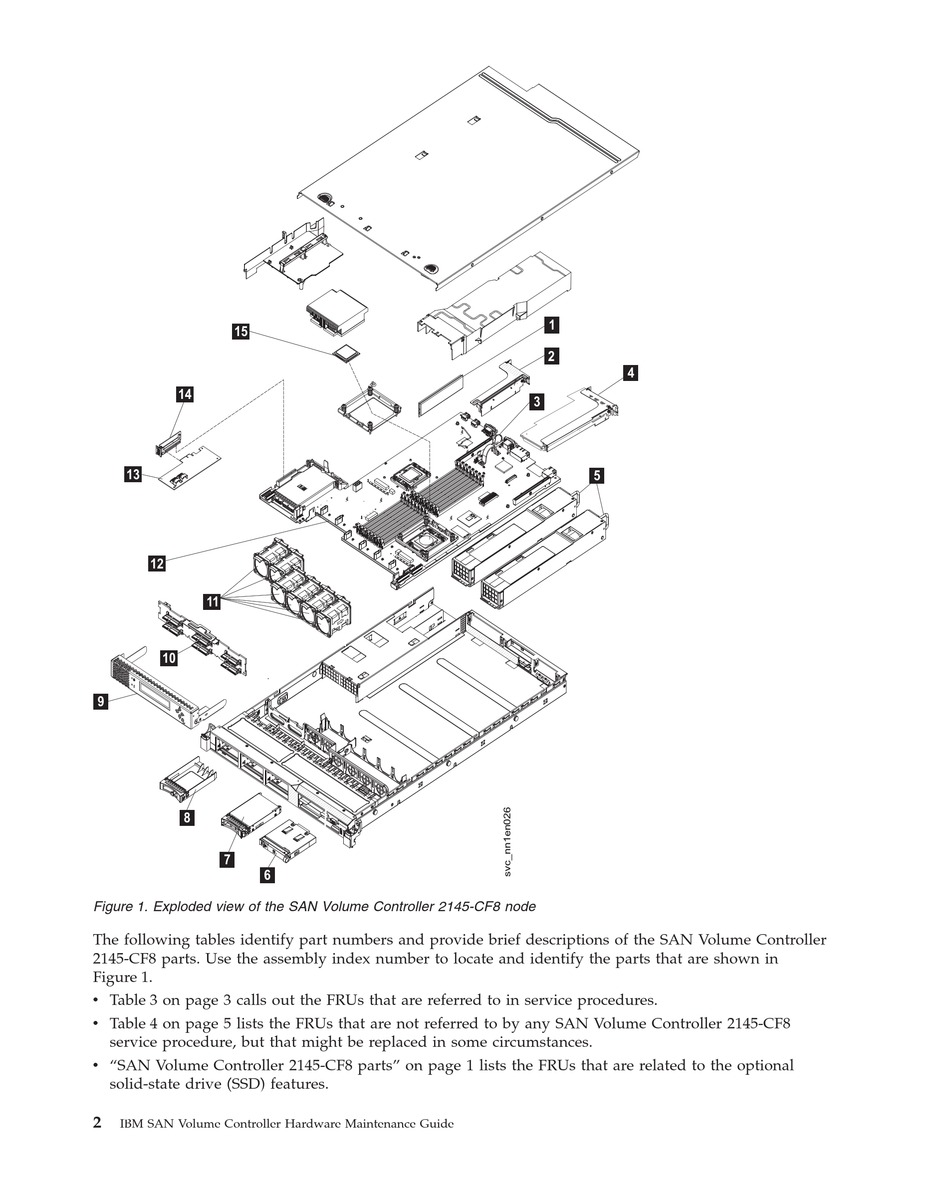

Figure 1. Exploded view of the SAN Volume Controller 2145-CF8 node
The following tables identify part numbers and provide brief descriptions of the SAN Volume Controller
2145-CF8 parts. Use the assembly index number to locate and identify the parts that are shown in
Figure 1.
v Table 3 on page 3 calls out the FRUs that are referred to in service procedures.
v Table 4 on page 5 lists the FRUs that are not referred to by any SAN Volume Controller 2145-CF8
service procedure, but that might be replaced in some circumstances.
v "SAN Volume Controller 2145-CF8 parts" on page 1 lists the FRUs that are related to the optional
solid-state drive (SSD) features.
2
IBM SAN Volume Controller Hardware Maintenance Guide
6
1
2
4
3
5
