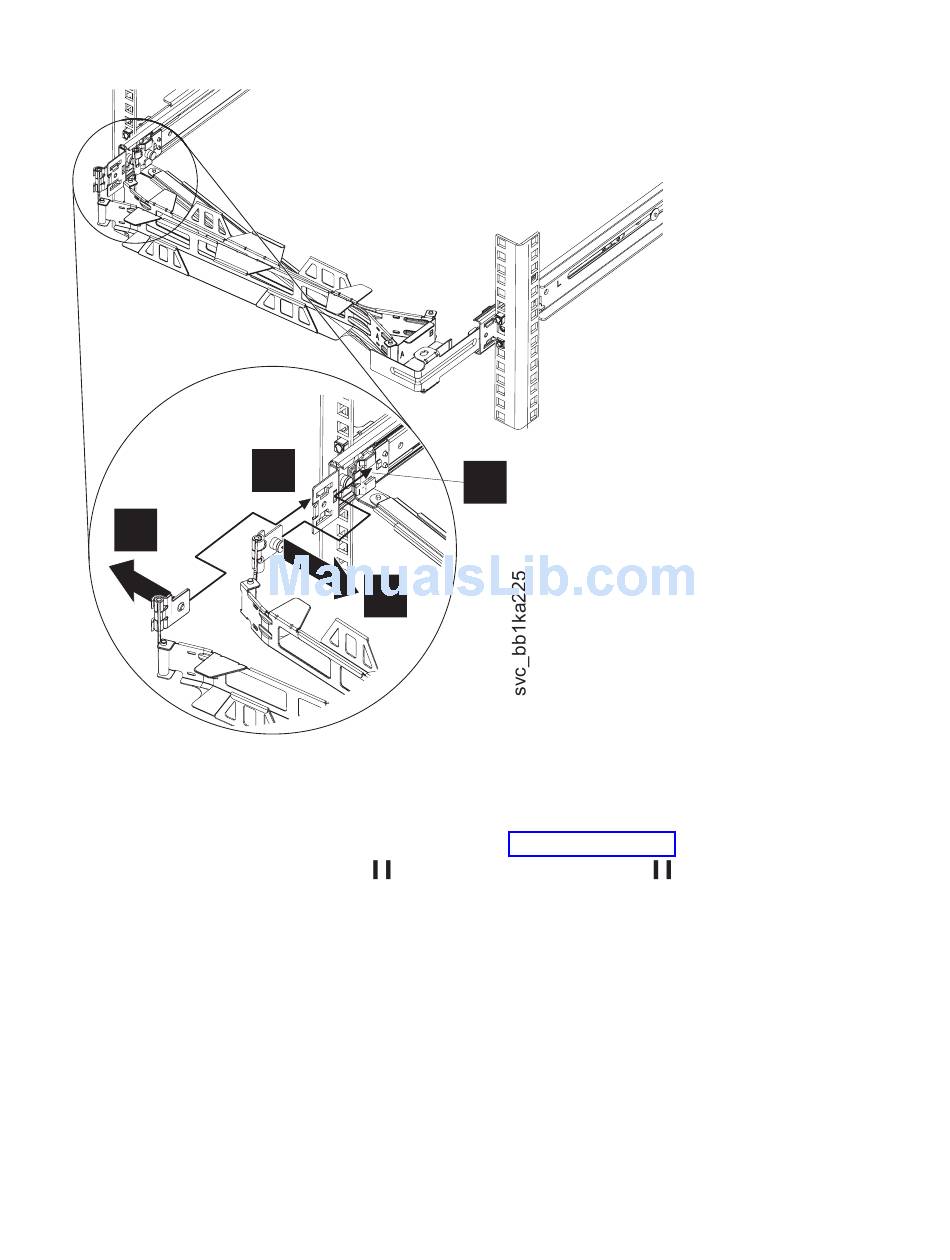

Figure 11. SAN Volume Controller 2145-CF8 cable-management arm on the support arm
6. Remove the cable-management mounting bracket from the same slide rail onto which the
cable-management arm was installed.
The cable-management support arm is not shown in Figure 12 on page 24.
Pull out the mounting bracket pin 1 and slide the mounting bracket 2 out of the left slide rail.
Pull the bracket from the slide rail until it is free.
4
1
2
Chapter 2. Removing and replacing parts
23
