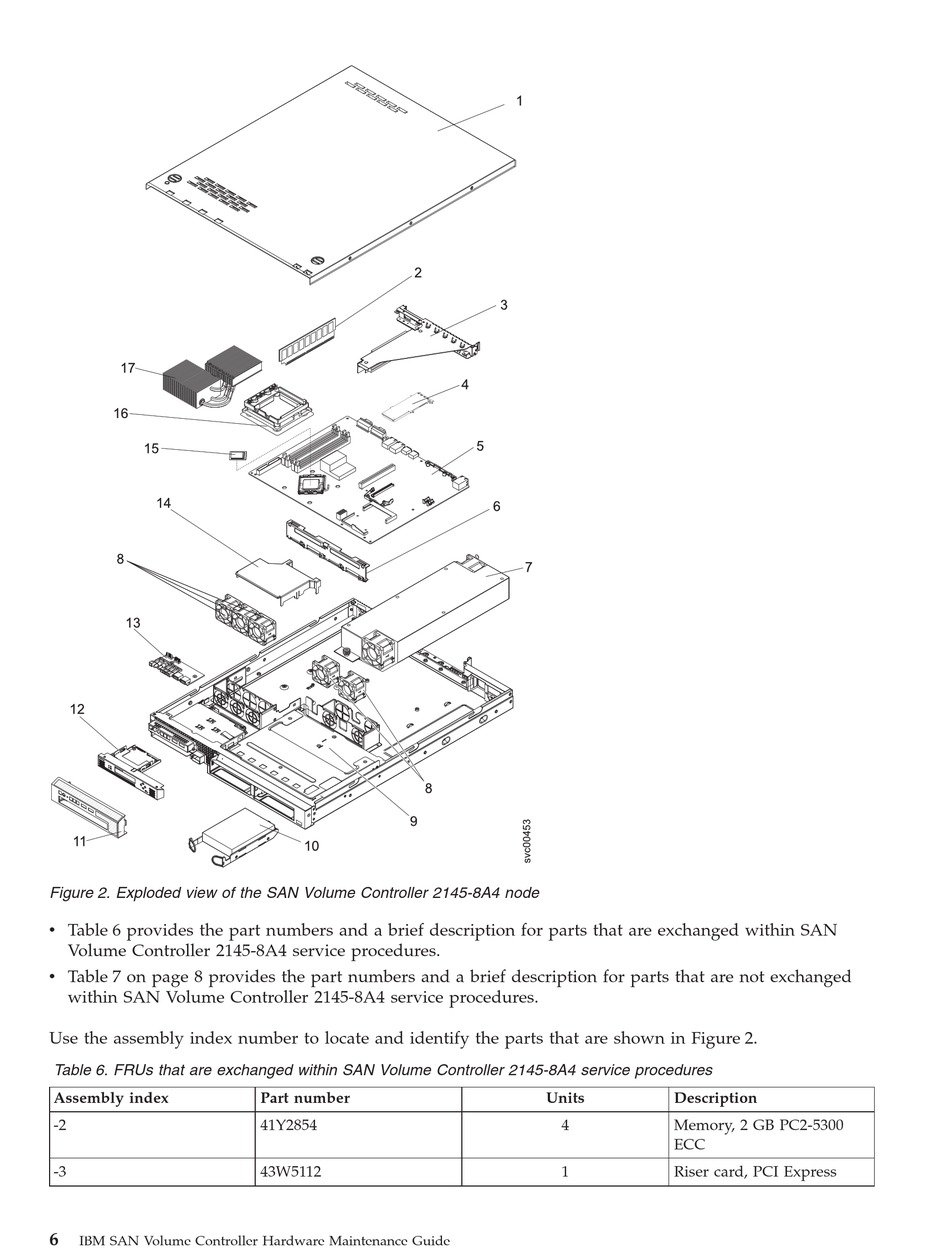

Figure 2. Exploded view of the SAN Volume Controller 2145-8A4 node
v Table 6 provides the part numbers and a brief description for parts that are exchanged within SAN
Volume Controller 2145-8A4 service procedures.
v Table 7 on page 8 provides the part numbers and a brief description for parts that are not exchanged
within SAN Volume Controller 2145-8A4 service procedures.
Use the assembly index number to locate and identify the parts that are shown in Figure 2.
Table 6. FRUs that are exchanged within SAN Volume Controller 2145-8A4 service procedures
Assembly index
-2
-3
6
IBM SAN Volume Controller Hardware Maintenance Guide
Part number
41Y2854
43W5112
Units Description
4 Memory, 2 GB PC2-5300
ECC
1 Riser card, PCI Express
