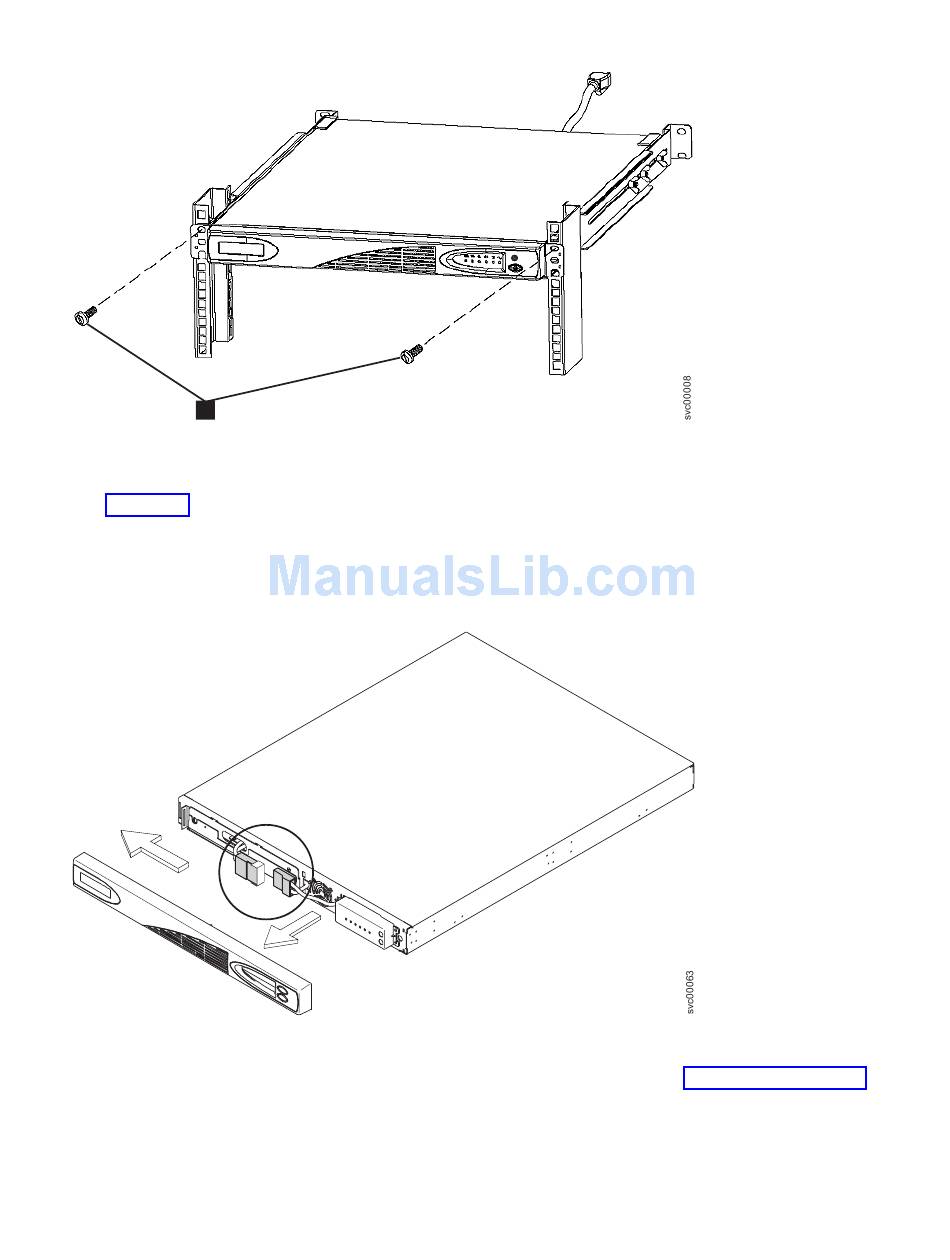

Figure 305. Mounting screws for the 2145 UPS-1U
5. Remove the 2145 UPS-1U front panel by pulling it towards you and to the left, as shown in
Figure 306.
Note: If you are having difficulty pulling the right side of the panel free from the 2145 UPS-1U,
insert a flat-blade screwdriver between the right side of the cover and the frame and gently pry it
free.
Figure 306. Removing the 2145 UPS-1U front panel
6. Remove the protective tape from the internal battery connector (circled in Figure 307 on page 278).
