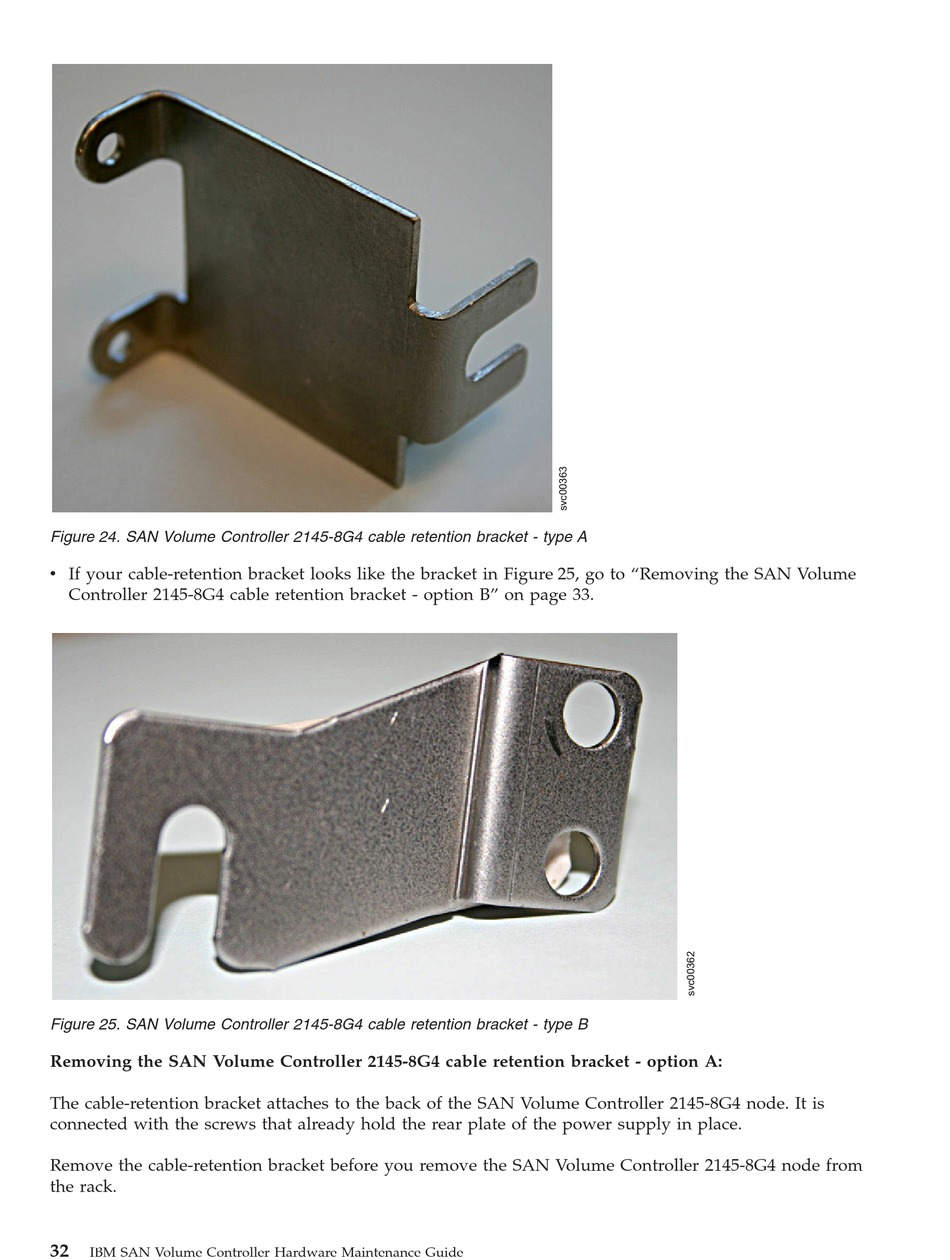

Figure 24. SAN Volume Controller 2145-8G4 cable retention bracket - type A
v If your cable-retention bracket looks like the bracket in Figure 25, go to "Removing the SAN Volume
Controller 2145-8G4 cable retention bracket - option B" on page 33.
Figure 25. SAN Volume Controller 2145-8G4 cable retention bracket - type B
Removing the SAN Volume Controller 2145-8G4 cable retention bracket - option A:
The cable-retention bracket attaches to the back of the SAN Volume Controller 2145-8G4 node. It is
connected with the screws that already hold the rear plate of the power supply in place.
Remove the cable-retention bracket before you remove the SAN Volume Controller 2145-8G4 node from
the rack.
