Replacing The Disk Drive; Removing The Sata Disk Drive - IBM SAN Volume Controller Hardware Maintenance Manual

2

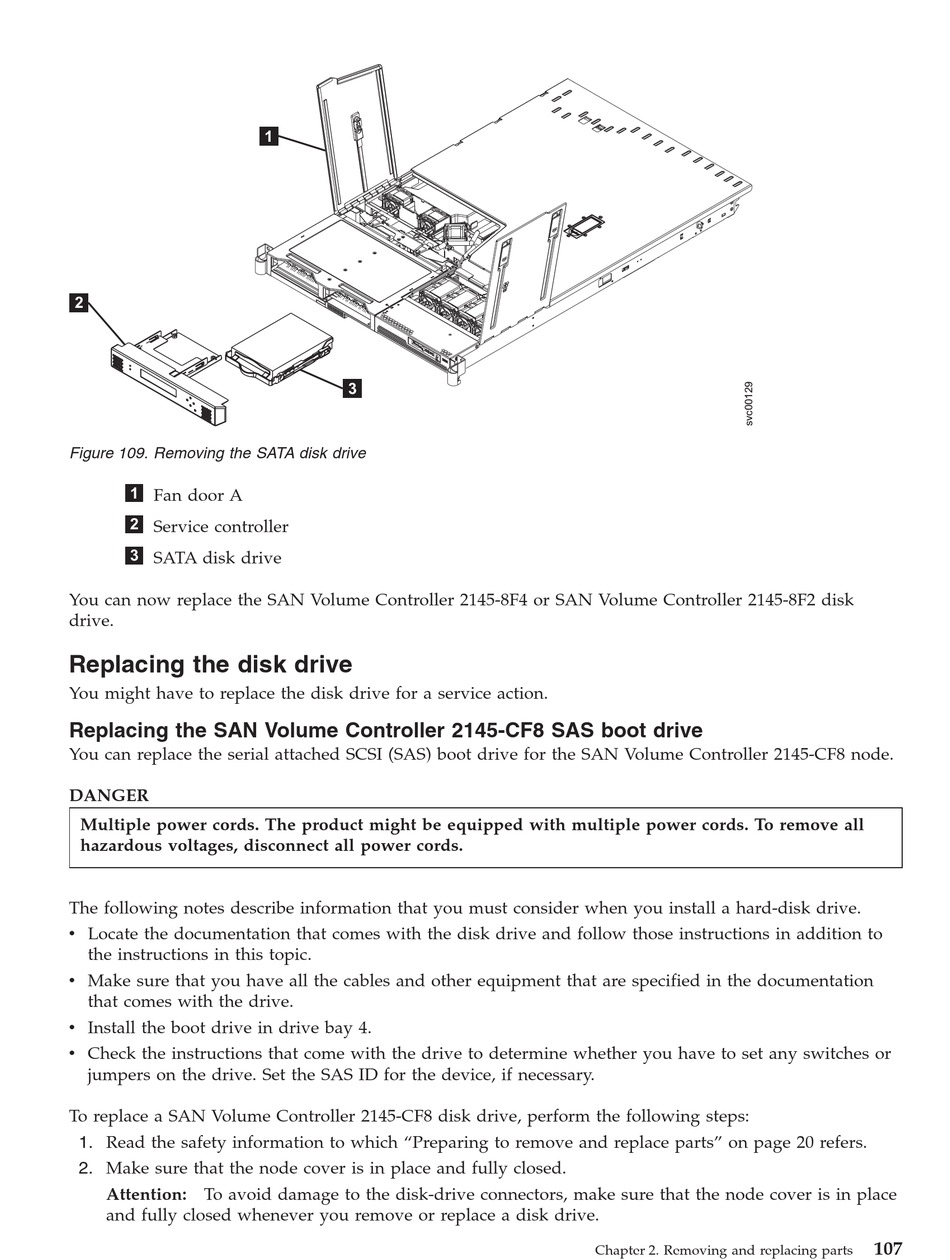

Figure 109. Removing the SATA disk drive
1
Fan door A
2
Service controller
3
SATA disk drive
You can now replace the SAN Volume Controller 2145-8F4 or SAN Volume Controller 2145-8F2 disk
drive.

Replacing the disk drive

You might have to replace the disk drive for a service action.
Replacing the SAN Volume Controller 2145-CF8 SAS boot drive
You can replace the serial attached SCSI (SAS) boot drive for the SAN Volume Controller 2145-CF8 node.
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords.
The following notes describe information that you must consider when you install a hard-disk drive.
v Locate the documentation that comes with the disk drive and follow those instructions in addition to
the instructions in this topic.
v Make sure that you have all the cables and other equipment that are specified in the documentation
that comes with the drive.
v Install the boot drive in drive bay 4.
v Check the instructions that come with the drive to determine whether you have to set any switches or
jumpers on the drive. Set the SAS ID for the device, if necessary.
To replace a SAN Volume Controller 2145-CF8 disk drive, perform the following steps:
1. Read the safety information to which "Preparing to remove and replace parts" on page 20 refers.
2. Make sure that the node cover is in place and fully closed.
Attention: To avoid damage to the disk-drive connectors, make sure that the node cover is in place
and fully closed whenever you remove or replace a disk drive.
