Getting Started Chapter

Installation

Connecting the 4x1 Multiview Seamless Switcher for HDMI

1. Connect up to four Hi-Def sources to the input ports (In 1 - In 4) ports on the 4x1
Multiview Seamless Switcher.
2. Connect an HD display to the HDMI Out port on the 4x1 Multiview Seamless Switcher.
3. OPTIONAL: Connect an RS-232 cable from the RS-232 port on the 4x1 Multiview
Seamless Switcher to the RS-232 connector on the automation controller.
4. OPTIONAL: Connect an Ethernet cable from the IP Control port on the 4x1 Multiview
Seamless Switcher to a Local Area Network (LAN).
5. OPTIONAL: Connect the included IR extender to the IR Ext port on the 4x1 Multiview
Seamless Switcher.
6. Connect the included 12V DC locking power supply to the power receptacle
on the 4x1 Multiview Seamless Switcher. Do not overtighten the locking power
connector.
7. Connect the power supply to an available electrical outlet.
HD Source
HD Source
IP Control

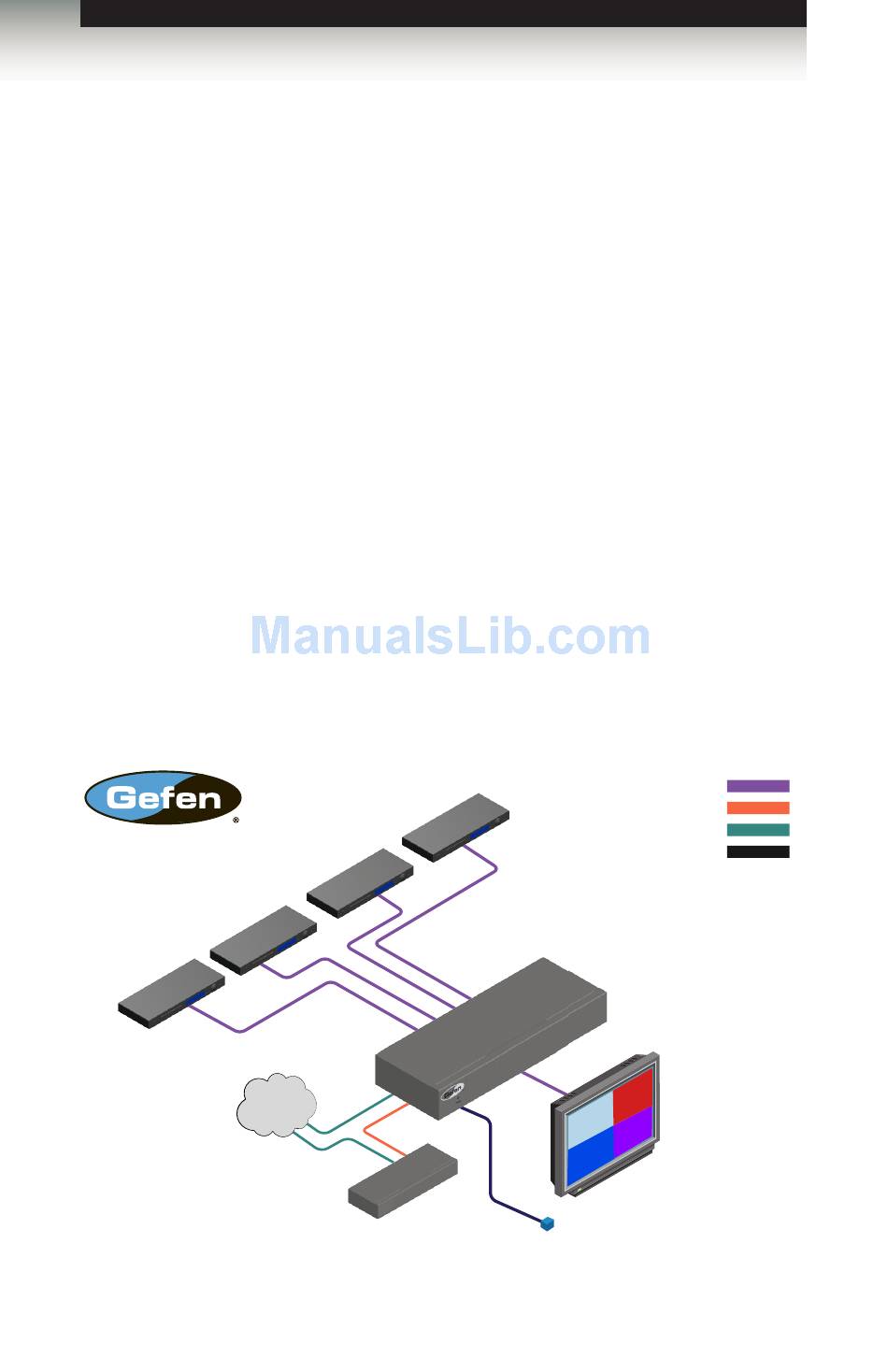

Sample Wiring Diagram

HD Source
HD Source
Network
Automation
Control
page | 9
Page Title
HDMI CABLE
RS-232 CABLE
CAT-5 CABLE
IR EXTENDER
Multiview Seamless
Switcher for HDMI
HD Display
EXT-HD-MVSL-441
