Optional

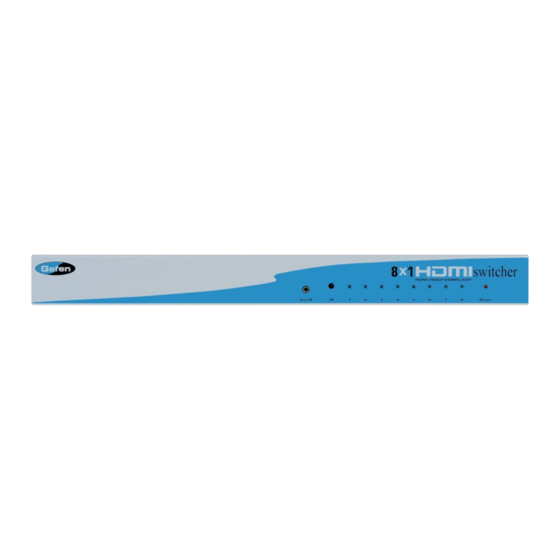

8x1 HDMI Switcher
Accessories
Access up to Eight Sources From One Display
8 Sources + 1 Display = Greater Integration Options
Gefen's 8x1 HDMI™ Switcher routes high definition video in multiple resolutions up to 1080p plus
multichannel digital audio from any of eight sources. Eight inputs accommodate the simultaneous
connection of up to eight high definition video sources, such as satellite systems and HD DVD
players. The output sends the high definition audio/video signals to a high definition display.
RMT IR Extender
Switching is done via the IR remote that is provided with the unit.
How It Works
You simply connect all your sources to the Switcher's inputs. Then connect the display on the
output port. Once the sources, the Switcher and the display(s) are powered and connected, you
simply select which source you want to view using the IR remote.
Note: This HDMI product supports BOTH Audio and Video signals.
DVI, HDCP & HDMI Defined
Features:
Switch easily between any eight HDMI™ sources
Extends the range of HDMI™ compliant device by equalizing and reclocking the HDMI
signal
Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and
computer resolutions up to 1920 x 1200 are easily achieved
Discrete IR remote (included)
Serial RS-232 remote port
HDMI™ pass-through
HDCP pass-through
Specifications:
Video Amplifier Bandwidth: 165 MHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Single Link Range: 1080p/1920 x 1200
HDMI Connector: type A 19 pin female
Remote Control Port: RS232 female, mini-stereo
Power Supply: 5V DC
Power Consumption: 20 watts (max)
Dimensions: 17" W x 1.75" H x 4.375" D
Shipping Weight: 12 lbs.
Package Includes:
The 8x1 HDMI Switcher
RMT-8IR Remote control
Eight 6-foot HDMI cables
5VDC Power Supply
User's Manual
Rack Ears
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-HDMI-841
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gefen EXT-HDMI-841
Summary of Contents for Gefen EXT-HDMI-841
-
Page 1: Specifications
Access up to Eight Sources From One Display 8 Sources + 1 Display = Greater Integration Options Gefen's 8x1 HDMI™ Switcher routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of eight sources. Eight inputs accommodate the simultaneous connection of up to eight high definition video sources, such as satellite systems and HD DVD players. - Page 2 8x1 HDMI Switcher U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 8x1 HDMI Switcher is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 8x1 HDMI Switcher RMT-8IR Installation RS-232 Interface Specifi cations Warranty... -
Page 5: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. The 8x1 HDMI Switcher allows eight HDMI devices to be switched easily through one HDMI compatible monitor or projector. -
Page 6: Features
FEATURES Features • Switch easily between any eight HDMI sources • Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 8: Connecting And Operating The 8X1 Hdmi Switcher
CONNECTING AND OPERATING THE 8x1 HDMI SWITCHER How to Connect the 8x1 HDMI Switcher to your devices 1. Connect the supplied HDMI cables from the HDMI sources into the HDMI Switcher Inputs. 2. Connect the cable from your display (HDTV or projector) into the HDMI Out of the 8x1 HDMI Switcher. -
Page 9: Rmt-8Ir Installation
RMT8-IR INSTALLATION 1. Remove battery cover from the back of the RMT8-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 10: Rs-232 Interface
RS-232 INTERFACE Receive Transmit Ground Binary Table ASCII Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 0011 0101 0011 0110 0011 0111 0011 1000 RS232 Settings Bits per second .......................19200 Data bits ........................8 Parity ........................None Stop bits ..........................1 Flow Control ...................... -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................1.65 Gbps Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range................1080p/1920 x 1200 HDMI Connector................Type A 19 pin female Remote Control Port..............RS232 female, mini-stereo Power Consumption .................. 20 watts (max) Power Supply ...................... -
Page 12: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
