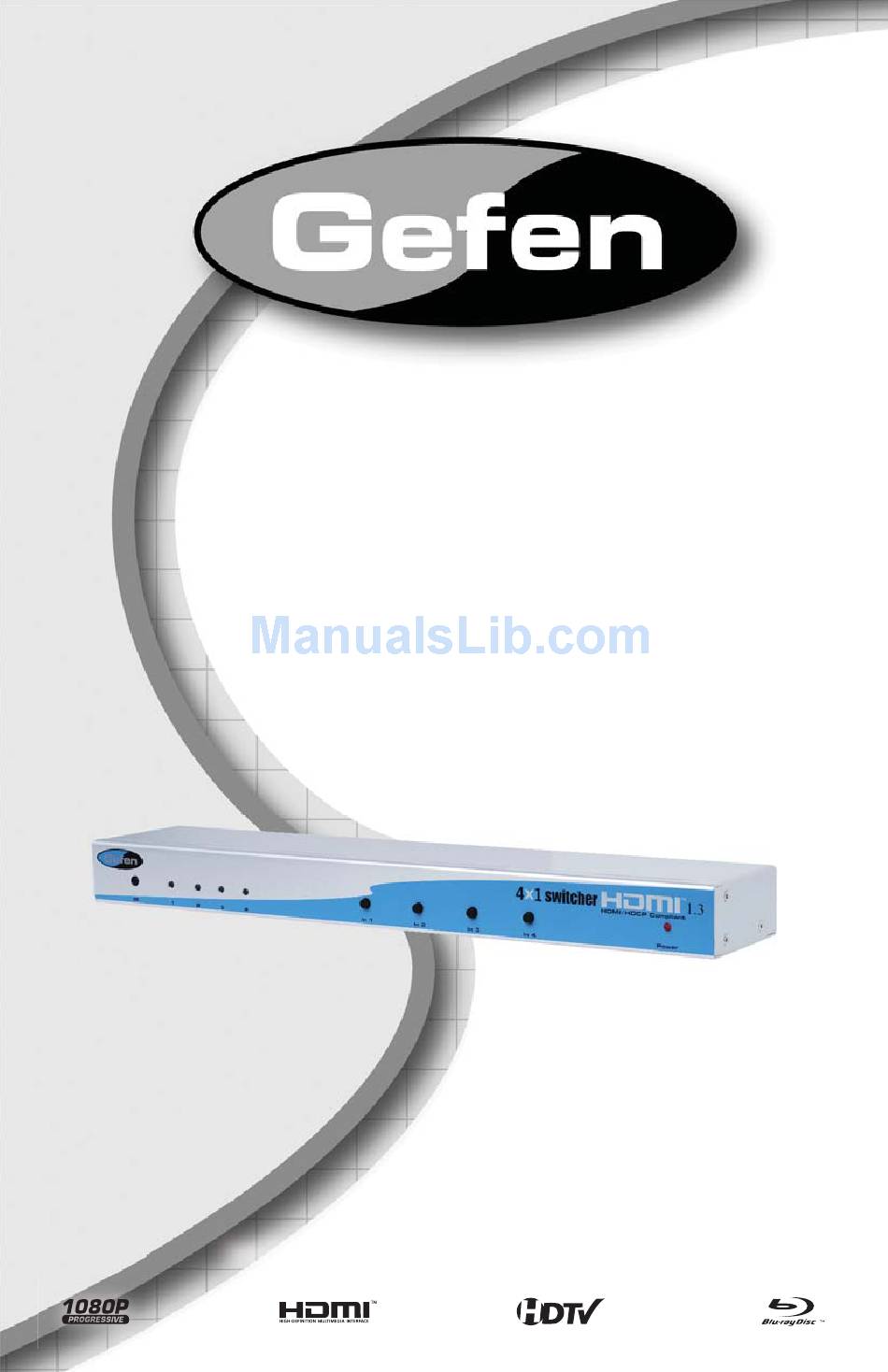

- Page 1 ® 4x1 Switcher for HDMI 1.3 EXT-HDMI1.3-441 USER MANUAL www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 4x1 Switcher for HDMI 1.3 is a trademark of Gefen Inc. HDMI is a trademark of HDMI.org ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 4x1 Switcher for HDMI 1.3 / Device Buttons RMT4-IR Installation IR Code Confl icts RS-232 Interface Specifi cations Warranty... -
Page 4: Introduction
HDMI cable to regenerate the HDMI signal. Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers. -
Page 5: Features
FEATURES Features • Switches easily between any four HDMI 1.3 sources • Maintains 480i/p, 576i/p, 720p, 1080i, and 1080p resolutions • Maintains highest HDMI single link video resolution • Supports HDCP compliant devices • HDMI or DVI to HDMI cables are used to connect the inputs and switcher output •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS FRONT IR Eye Input Indicator Input 1 Input 3 Power Indicator LED’s Selector Selector Input 2 Input 4 Selector Selector BACK Input 1 Input 2 Input 3 Input 4 HDMI RS-232 Output Control Port 5VDC Power Supply Input IR Eye Extension Port... - Page 7 CONNECTING AND OPERATING THE 4x1 SWITCHER How to Connect the 4x1 Switcher for HDMI 1.3 to your devices 1. Connect the supplied cables from the HDTV HDMI sources into the 4x1 Switcher’s inputs. 2. Connect the cable from your display (monitor or projector) into the HDMI output jack of the 4x1 Switcher.
-
Page 8: Rmt4-Ir Installation
RMT4-IR INSTALLATION 1. Remove battery cover from the back of the RMT4-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 9: Ir Code Confl Icts
IR CODE CONFLICTS How to Resolve IR Code Confl icts There are matching pairs of dip switches underneath the Switcher unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 7 & 8 underneath the unit are the matching switches. -
Page 10: Rs-232 Interface
RS-232 INTERFACE Binary Table ASCII Input Binary 0011 0001 0011 0010 0011 0011 0011 0100 Terminal Settings Bits per second ....................19200 Data bits ........................8 Parity ........................None Stop bits ........................1 Flow Control ....................... None... -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................340 MHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ................5 volts p-p (TTL) Single Link Range .........1080p/60 16 bit color depth, 1920x1200 HDMI Connector .................Type A 19 pin female Remote Control Port ..........RS232 female, mini-stereo 3.5mm Power Supply ....................5V DC Power Consumption ................10 watts (max) Dimensions ................13.8”W x 1.8”H x 2.8”D... -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
