Advanced Operation Chapter

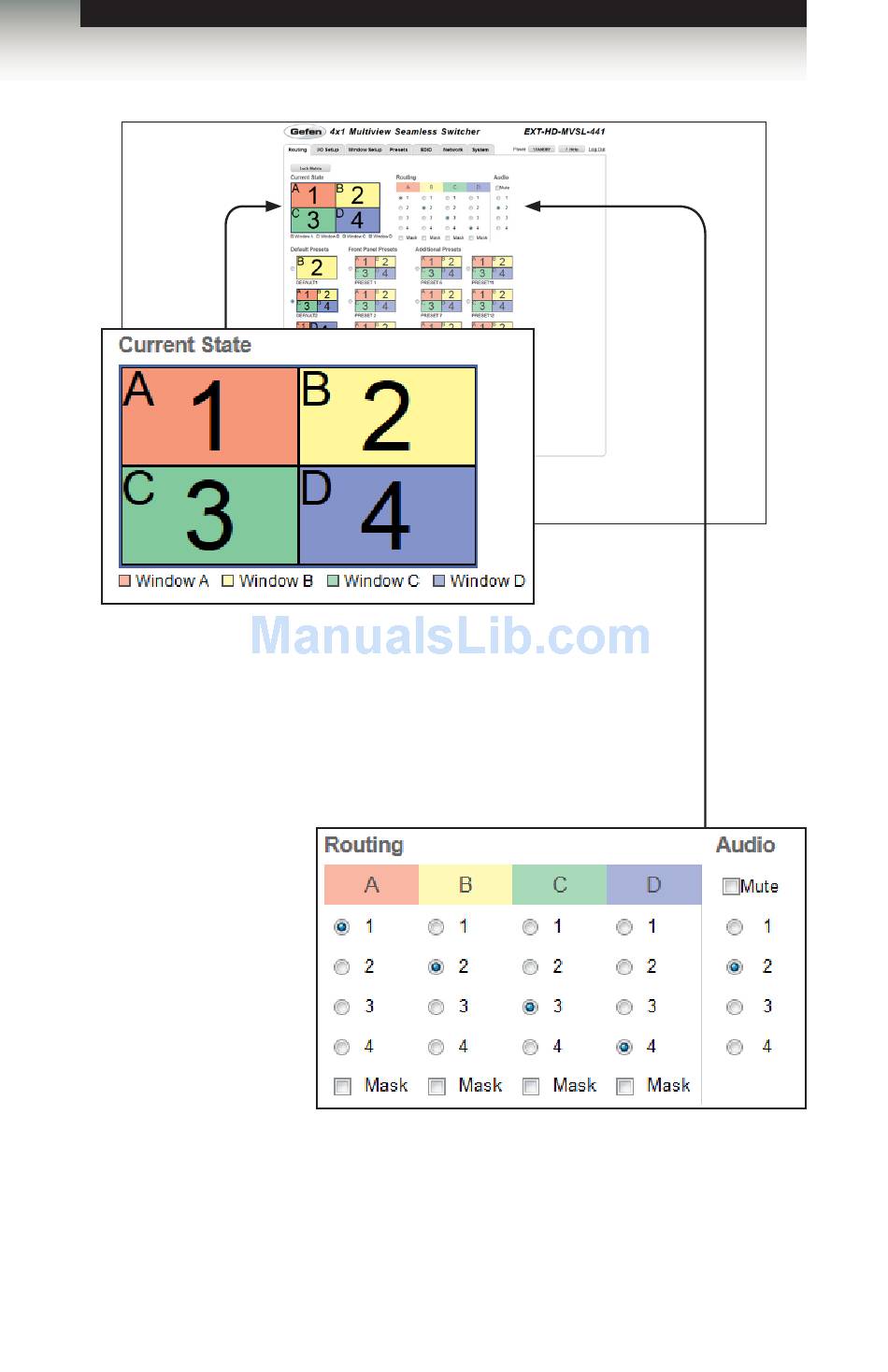

Current preset
Displays the current preset that is loaded into memory.
Each window is color-coded for easy identification. The letter in the
upper-left corner of each window represents the output.
The input used by each window output is displayed using a number
from 1 to 4.
Routing
Click the radio button to
select the desired input.
Each column represents
an output.
Mask
Click to place a check
mark in the check box
in order to mask the
selected output. Click to
clear the check box and
remove the mask.
Audio
Click the radio button to select the input to be used as the audio source.
Mute
Click to place a check mark in this check box in order to mute the selected input.
Click to clear the check box and un-mute the input.
page | 136
Web Interface
