- Page 1 ® 3x1 Switcher For EXT-HDMI1.3-341 User Manual www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 3x1 Switcher for HDMI 1.3 is a trademark of Gefen LLC HDMI is a trademark of HDMI.org ©...
- Page 3 CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting The 3x1 Switcher for HDMI 1.3 Specifi cations Warranty...
- Page 4 Please call us so we can better assist you with your particular needs. Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers.
- Page 5 FEATURES Features • Switches easily between any three HDMI 1.3 sources • Maintains 480i/p, 576i/p, 720p, 1080i, and 1080p resolutions • Maintains highest HDMI single link video resolution • Supports HDCP compliant devices • HDMI or DVI to HDMI cables are used to connect the inputs and switcher output •...
-
Page 6: Connecting The 3X1 Switcher For Hdmi
1.3. You can also use the Select Button on the front panel to cycle between the inputs. Wiring Diagram for the 3x1 Switcher for HDMI 1.3 HDMI CABLE HDMI 1.3 Source HDMI 1.3 Source HDMI 1.3 Source Switcher HDTV EXT-HDMI1.3-341... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions

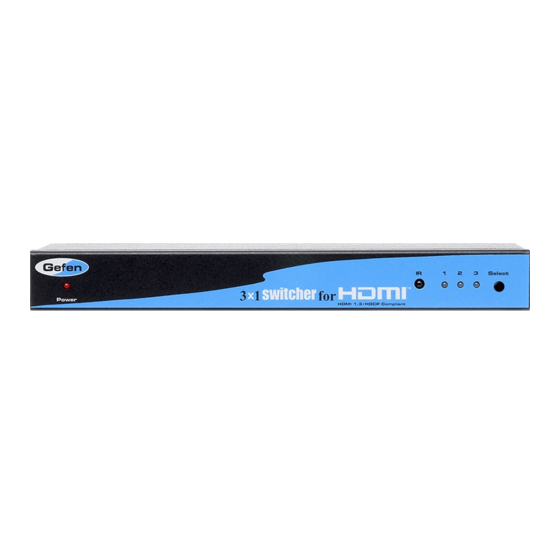

PANEL DESCRIPTIONS Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected between the unit and an open wall power socket. I/R (Infrared) Receiver This receiver will accept command for switching between input devices using the included RMT3-IR remote control. - Page 9 RMT3-IR INSTALLATION 1. Remove battery cover from the back of the RMT3-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down.
- Page 10 IR CODE CONFLICTS How to Resolve IR Code Confl icts There are matching pairs of dip switches underneath the Switcher unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 1 & 2 (switches 3 and 4 are not used) on the dip switch bank located underneath the unit.
-
Page 11: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ................225 MHz Input Video Signal ..................1.2 Volts p-p Input DDC Signal ................5 Volts p-p (TTL) Single Link Resolution .........1080p/60 10 bit Color Depth, 1920x1200 HDMI Connector ...............Type A 19 Pin Female Remote Control Port ..............Mini-Stereo 3.5mm Power Supply ....................5V DC Power Consumption ................5 Watts (max) Dimensions ................9.4”W x 1.1”H x 2.7”D... - Page 13 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenPRO.com support@gefen.com...
