Operating the 4x1 Multiview Seamless Switcher for HDMI Chapter
The 4x1 Multiview Seamless Switcher for HDMI can display up to four sources on one
display. When multiple sources are displayed on the screen, we refer to each source as a
window. In general terms, a window is defined as an input. However, before we discuss
multiple windows, we will define the operation of a single window.

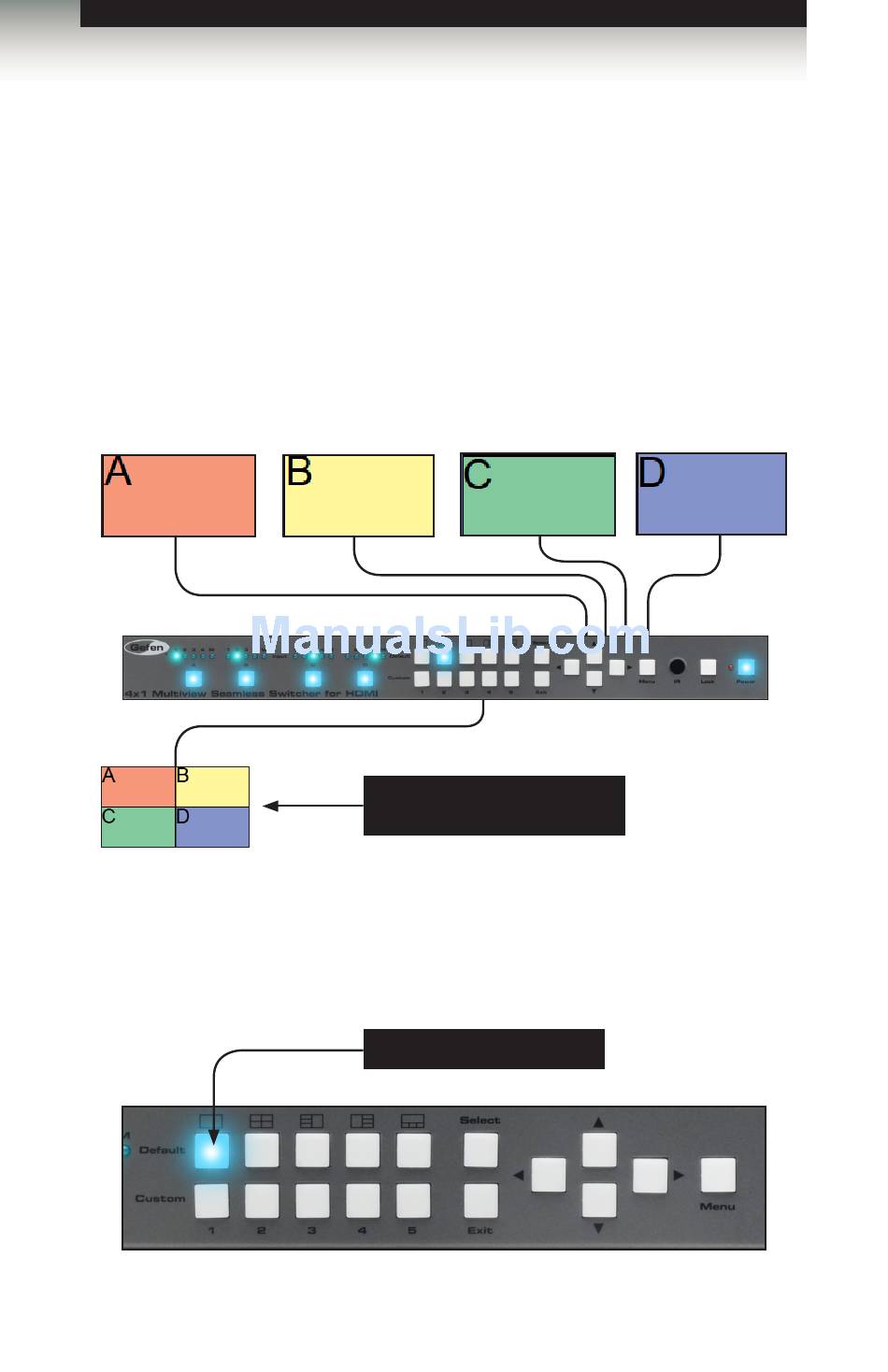

In our example, below, we have four Hi-Def sources connected to the 4x1 Multiview
Seamless Switcher for HDMI. Each source is represented by a colored rectangle.
When the 4x1 Multiview Seamless Switcher for HDMI is shipped from the factory,
the Default 2 preset will automatically be loaded when the unit is powered ON:
Input 1
Output
Now, let's look at one of the default presets that displays a single-window output:
1. Press the Default 1 button on the front panel.

Single Window Nomenclature

Input 2
Preset 2 is displayed, by
default
Press the Default 1 button
page | 14
Window Basics
Input 3 Input 4
