6
DSC OPERATION

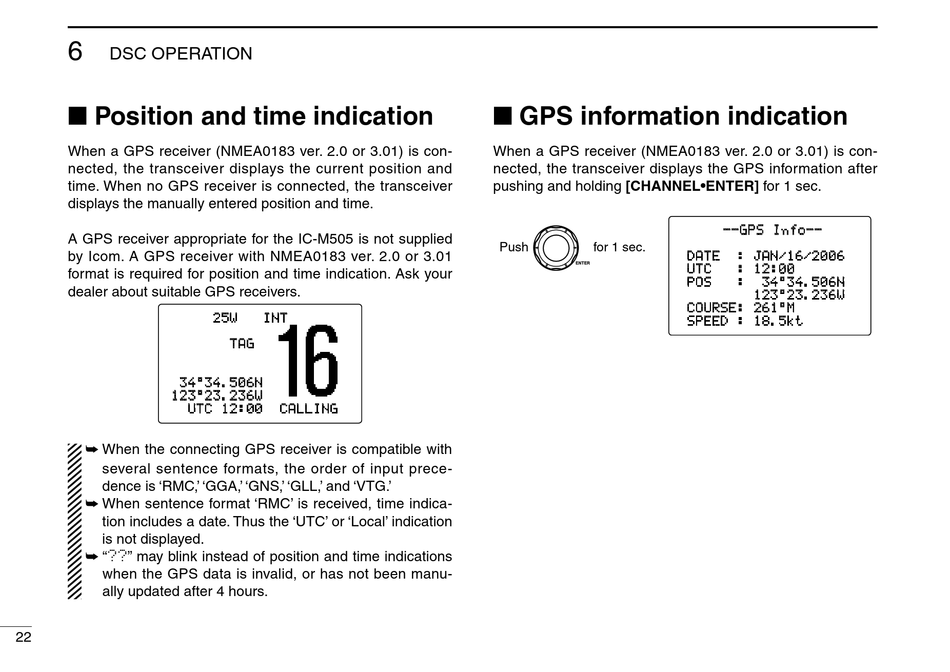

■ Position and time indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the current position and
time. When no GPS receiver is connected, the transceiver
displays the manually entered position and time.
A GPS receiver appropriate for the IC-M505 is not supplied
by Icom. A GPS receiver with NMEA0183 ver. 2.0 or 3.01
format is required for position and time indication. Ask your
dealer about suitable GPS receivers.
34°34.506N
123°23.236W
UTC 12:00
➥ When the connecting GPS receiver is compatible with
several sentence formats, the order of input prece-
dence is 'RMC,' 'GGA,' 'GNS,' 'GLL,' and 'VTG.'
➥ When sentence format 'RMC' is received, time indica-
tion includes a date. Thus the 'UTC' or 'Local' indication
is not displayed.
➥ "??" may blink instead of position and time indications
when the GPS data is invalid, or has not been manu-
ally updated after 4 hours.
22
25W INT
TAG
CALLING

■ GPS information indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the GPS information after
pushing and holding [CHANNEL•ENTER] for 1 sec.
Push for 1 sec.
--GPS Info--
DATE : JAN/16/2006
UTC : 12:00
POS : 34°34.506N
123°23.236W
COURSE: 261°M
SPEED : 18.5kt
