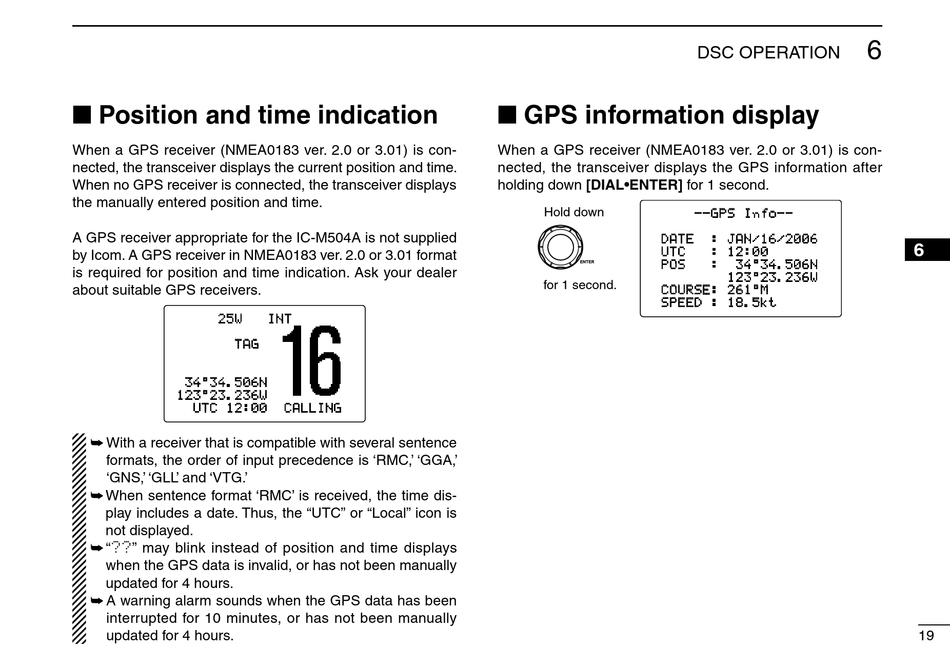

■ Position and time indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the current position and time.
When no GPS receiver is connected, the transceiver displays
the manually entered position and time.
A GPS receiver appropriate for the IC-M504A is not supplied
by Icom. A GPS receiver in NMEA0183 ver. 2.0 or 3.01 format
is required for position and time indication. Ask your dealer
about suitable GPS receivers.
25W
TAG
34°34.506N
123°23.236W
UTC 12:00
➥ With a receiver that is compatible with several sentence
formats, the order of input precedence is 'RMC,' 'GGA,'
'GNS,' 'GLL' and 'VTG.'
➥ When sentence format 'RMC' is received, the time dis-
play includes a date. Thus, the "UTC" or "Local" icon is
not displayed.
➥ "??" may blink instead of position and time displays
when the GPS data is invalid, or has not been manually
updated for 4 hours.
➥ A warning alarm sounds when the GPS data has been
interrupted for 10 minutes, or has not been manually
updated for 4 hours.
INT
CALLING

■ GPS information display

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the GPS information after
holding down [DIAL•ENTER] for 1 second.
Hold down
DATE
UTC
POS
for 1 second.
COURSE: 261°M
SPEED : 18.5kt
6
DSC OPERATION
--GPS Info--
: JAN/16/2006
: 12:00
: 34°34.506N
123°23.236W
