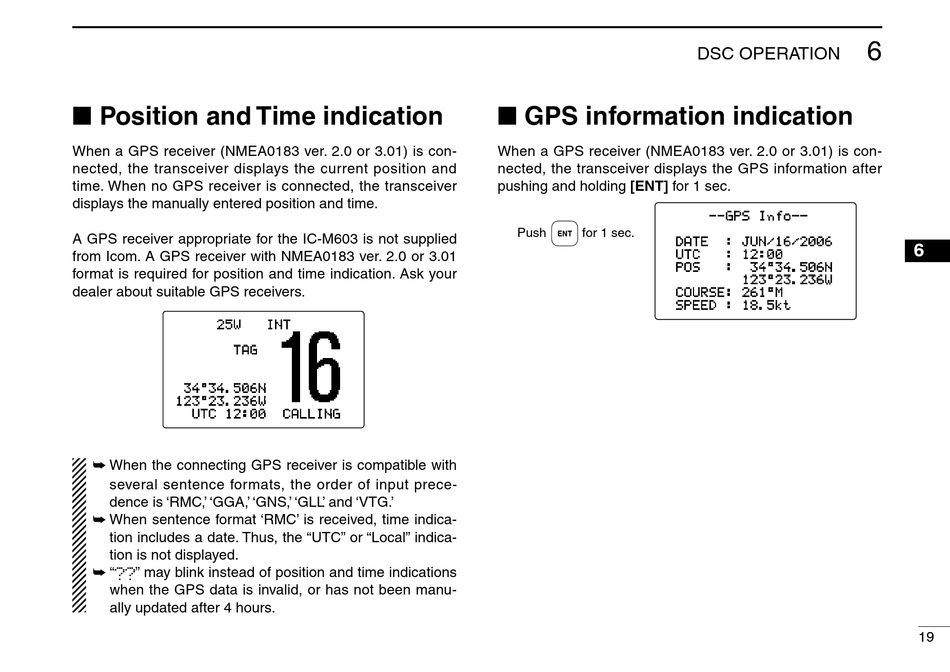

■ Position and Time indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the current position and
time. When no GPS receiver is connected, the transceiver
displays the manually entered position and time.
A GPS receiver appropriate for the IC-M603 is not supplied
from Icom. A GPS receiver with NMEA0183 ver. 2.0 or 3.01
format is required for position and time indication. Ask your
dealer about suitable GPS receivers.
25W
TAG
34°34.506N
123°23.236W
UTC 12:00
➥ When the connecting GPS receiver is compatible with
several sentence formats, the order of input prece-
dence is 'RMC,' 'GGA,' 'GNS,' 'GLL' and 'VTG.'
➥ When sentence format 'RMC' is received, time indica-
tion includes a date. Thus, the "UTC" or "Local" indica-
tion is not displayed.
➥ "??" may blink instead of position and time indications
when the GPS data is invalid, or has not been manu-
ally updated after 4 hours.
INT
CALLING

■ GPS information indication

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the GPS information after
pushing and holding [ENT] for 1 sec.
Push for 1 sec.
DATE
UTC
POS
COURSE: 261°M
SPEED : 18.5kt
6
DSC OPERATION
--GPS Info--
: JUN/16/2006
: 12:00
: 34°34.506N
123°23.236W
6
19
