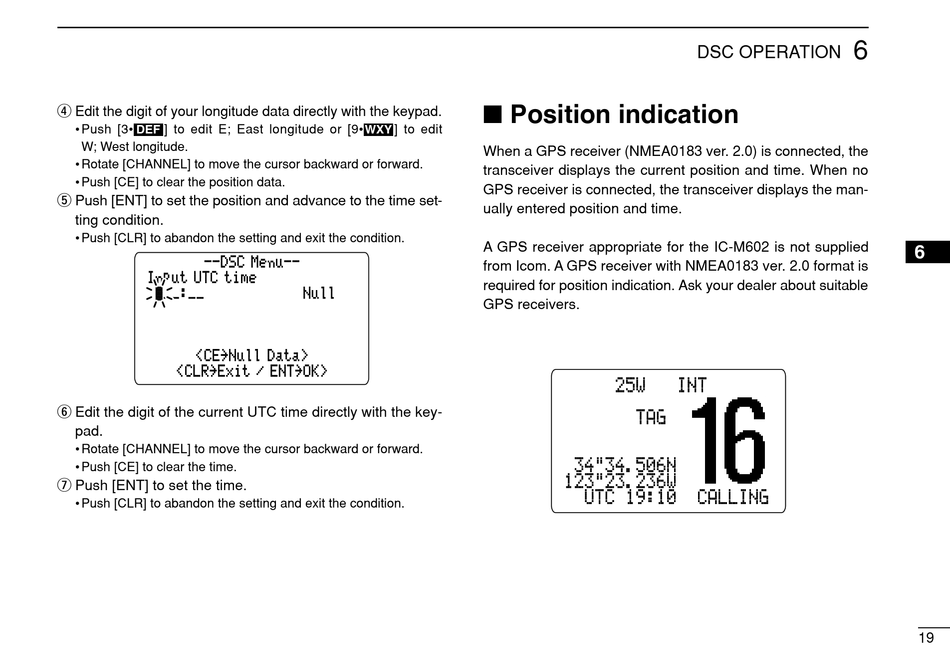

r Edit the digit of your longitude data directly with the keypad.
• Push [3• ] to edit E; East longitude or [9•
DEF
W; West longitude.
• Rotate [CHANNEL] to move the cursor backward or forward.
• Push [CE] to clear the position data.
t Push [ENT] to set the position and advance to the time set-
ting condition.
• Push [CLR] to abandon the setting and exit the condition.
--DSC Menu--
Input UTC time
˘ __:__˘˘˘˘˘˘˘˘˘˘˘˘Null
<CE˘Null Data>
<CLR˘Exit / ENT˘OK>
y Edit the digit of the current UTC time directly with the key-
pad.
• Rotate [CHANNEL] to move the cursor backward or forward.
• Push [CE] to clear the time.
u Push [ENT] to set the time.
• Push [CLR] to abandon the setting and exit the condition.

I Position indication

] to edit
WXY
When a GPS receiver (NMEA0183 ver. 2.0) is connected, the
transceiver displays the current position and time. When no
GPS receiver is connected, the transceiver displays the man-
ually entered position and time.
A GPS receiver appropriate for the IC-M602 is not supplied
from Icom. A GPS receiver with NMEA0183 ver. 2.0 format is
required for position indication. Ask your dealer about suitable
GPS receivers.
DSC OPERATION
BUSY-25W---INT---CALL

LOCAL--DUP

SCRAM--TAG

NORMAL-SCAN

-34"34.506N

123"23.236W

--UTC-19:10--CALLING
6
6
19
