5
DV MODE OPERATION (Optional UT-123 is required)

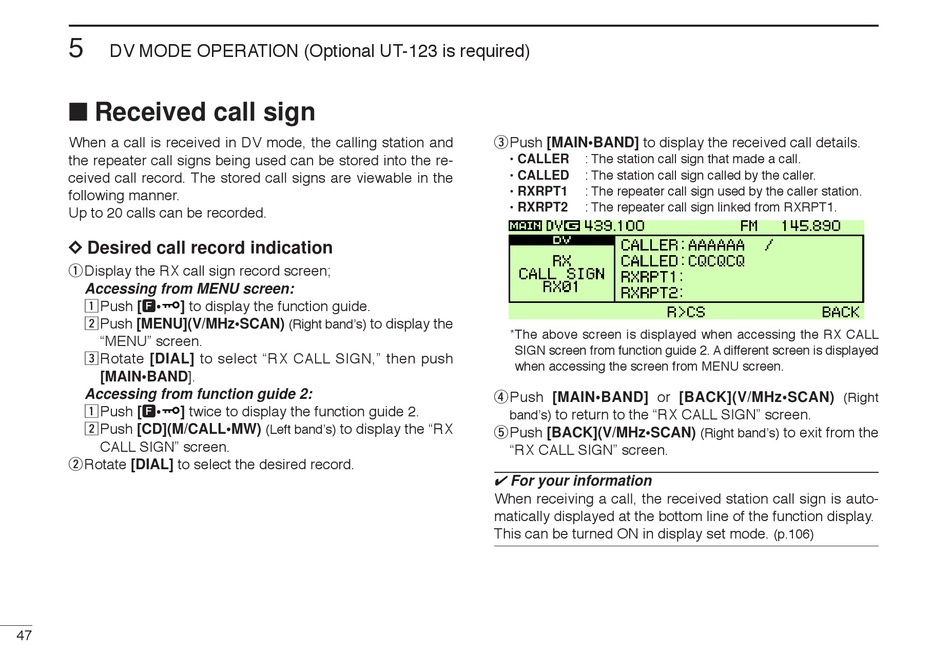

■ Received call sign

When a call is received in DV mode, the calling station and
the repeater call signs being used can be stored into the re-
ceived call record. The stored call signs are viewable in the
following manner.
Up to 20 calls can be recorded.
D D Desired call record indication
q Display the RX call sign record screen;
Accessing from MENU screen:
z Push [F•
] to display the function guide.
xPush [MENU](V/MHz•SCAN)
"MENU" screen.
cRotate [DIAL] to select "RX CALL SIGN," then push
[MAIN•BAND].
Accessing from function guide 2:
z Push [F•
] twice to display the function guide 2.
xPush [CD](M/CALL•MW)
CALL SIGN" screen.
wRotate [DIAL] to select the desired record.
47
to display the
(Right band's)
to display the "RX
(Left band's)
ePush [MAIN•BAND] to display the received call details.
• CALLER : The station call sign that made a call.
• CALLED : The station call sign called by the caller.
• RXRPT1 : The repeater call sign used by the caller station.
• RXRPT2 : The repeater call sign linked from RXRPT1.
*The above screen is displayed when accessing the RX CALL
SIGN screen from function guide 2. A different screen is displayed
when accessing the screen from MENU screen.
rPush [MAIN•BAND] or [BACK](V/MHz•SCAN)
to return to the "RX CALL SIGN" screen.
band's)
tPush [BACK](V/MHz•SCAN)
"RX CALL SIGN" screen.
✔ For your information
When receiving a call, the received station call sign is auto-
matically displayed at the bottom line of the function display.
This can be turned ON in display set mode.
(Right
to exit from the
(Right band's)
(p.106)
