7
DV MODE OPERATION (Optional UT-121 is required)

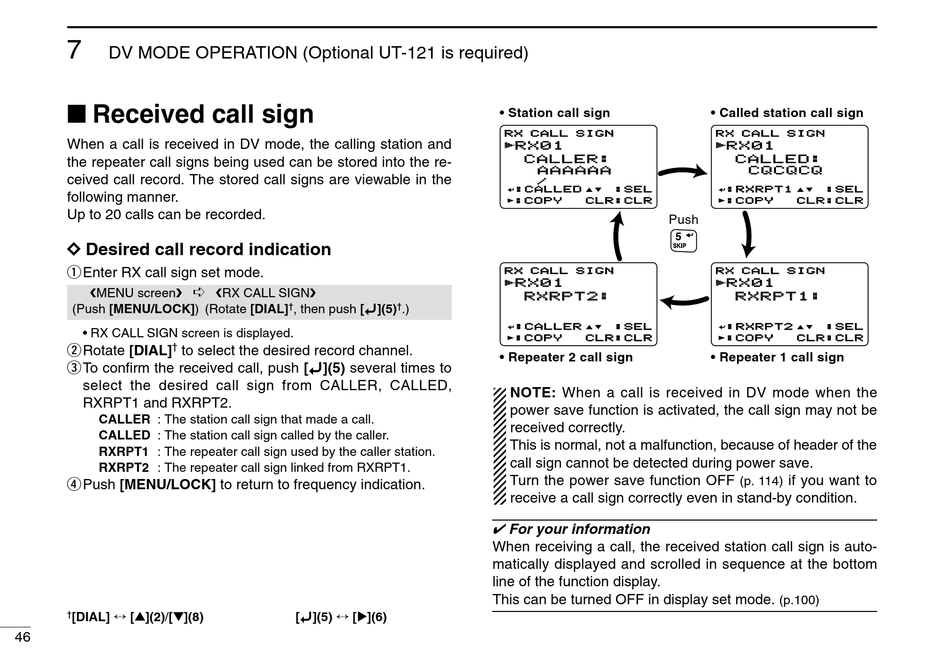

I Received call sign

When a call is received in DV mode, the calling station and
the repeater call signs being used can be stored into the re-
ceived call record. The stored call signs are viewable in the
following manner.
Up to 20 calls can be recorded.
D D Desired call record indication
q Enter RX call sign set mode.
➪
MENU screen
(Push [MENU/LOCK]) (Rotate [DIAL]
• RX CALL SIGN screen is displayed.
wRotate [DIAL]
†
to select the desired record channel.
eTo confirm the received call, push [ï](5) several times to
select the desired call sign from CALLER, CALLED,
RXRPT1 and RXRPT2.
CALLER : The station call sign that made a call.
CALLED : The station call sign called by the caller.
RXRPT1 : The repeater call sign used by the caller station.
RXRPT2 : The repeater call sign linked from RXRPT1.
r Push [MENU/LOCK] to return to frequency indication.
[DIAL] ↔ [∫ ∫ ](2)/[√ √ ](8)
†
46
RX CALL SIGN
†
, then push [ï](5)
[ï](5) ↔ [≈ ≈ ](6)
• Station call sign
RX CALL SIGN
RX01 RX01
r
CALLER: CALLER:
AAAAAA AAAAAA
/
:CALLED
:COPY
RX CALL SIGN
RX01 RX01
r
RXRPT2: RXRPT2:
†
.)
:CALLER
:COPY
• Repeater 2 call sign
NOTE: When a call is received in DV mode when the
power save function is activated, the call sign may not be
received correctly.
This is normal, not a malfunction, because of header of the
call sign cannot be detected during power save.
Turn the power save function OFF
receive a call sign correctly even in stand-by condition.
✔ For your information
When receiving a call, the received station call sign is auto-
matically displayed and scrolled in sequence at the bottom
line of the function display.
This can be turned OFF in display set mode.
• Called station call sign
RX CALL SIGN
RX01 RX01
r
CALLED: CALLED:
CQCQCQ CQCQCQ
:SEL :RXRPT1
CLR:CLR :COPY
Push
RX CALL SIGN
RX01 RX01
r
RXRPT1: RXRPT1:
:SEL :RXRPT2
CLR:CLR :COPY
• Repeater 1 call sign
(p. 114)
:SEL
CLR:CLR
:SEL
CLR:CLR
if you want to
(p.100)
