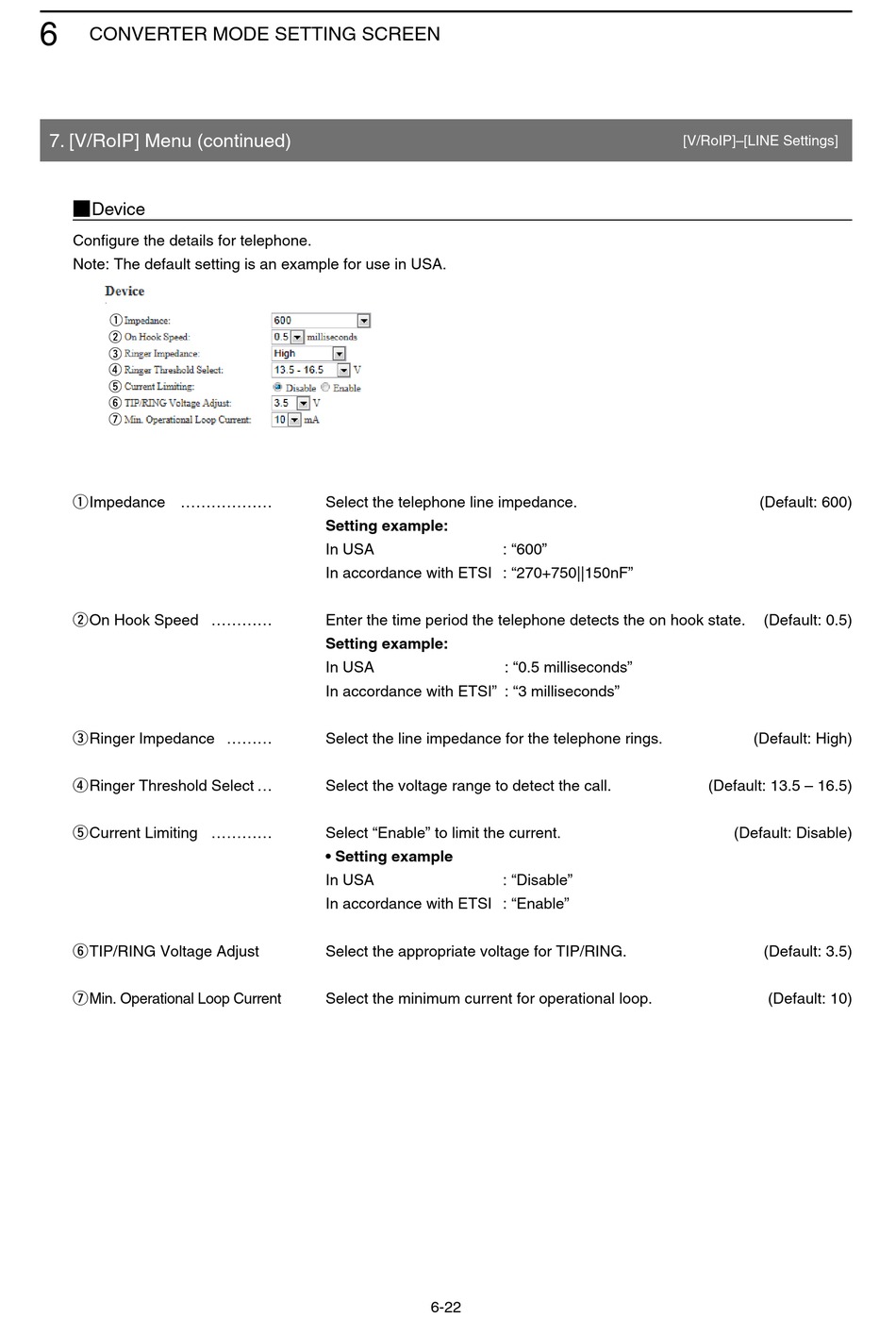

CONVERTER MODE SETTING SCREEN
7. [V/RoIP] Menu (continued)

M Device

Configure the details for telephone.
Note: The default setting is an example for use in USA.
q Impedance ..................
w On Hook Speed ............
e Ringer Impedance .........
r Ringer Threshold Select ...
t Current Limiting ............
y TIP/RING Voltage Adjust
u Min. Operational Loop Current
Select the telephone line impedance.
Setting example:
In USA
In accordance with ETSI : "270+750||150nF"
Enter the time period the telephone detects the on hook state.
Setting example:
In USA
In accordance with ETSI" : "3 milliseconds"
Select the line impedance for the telephone rings.
Select the voltage range to detect the call.
Select "Enable" to limit the current.
• Setting example
In USA
In accordance with ETSI : "Enable"
Select the appropriate voltage for TIP/RING.
Select the minimum current for operational loop.
6-22
: "600"
: "0.5 milliseconds"
: "Disable"
[V/RoIP]–[LINE Settings]
(Default: 600)
(Default: 0.5)
(Default: High)
(Default: 13.5 – 16.5)
(Default: Disable)
(Default: 3.5)
(Default: 10)
