5

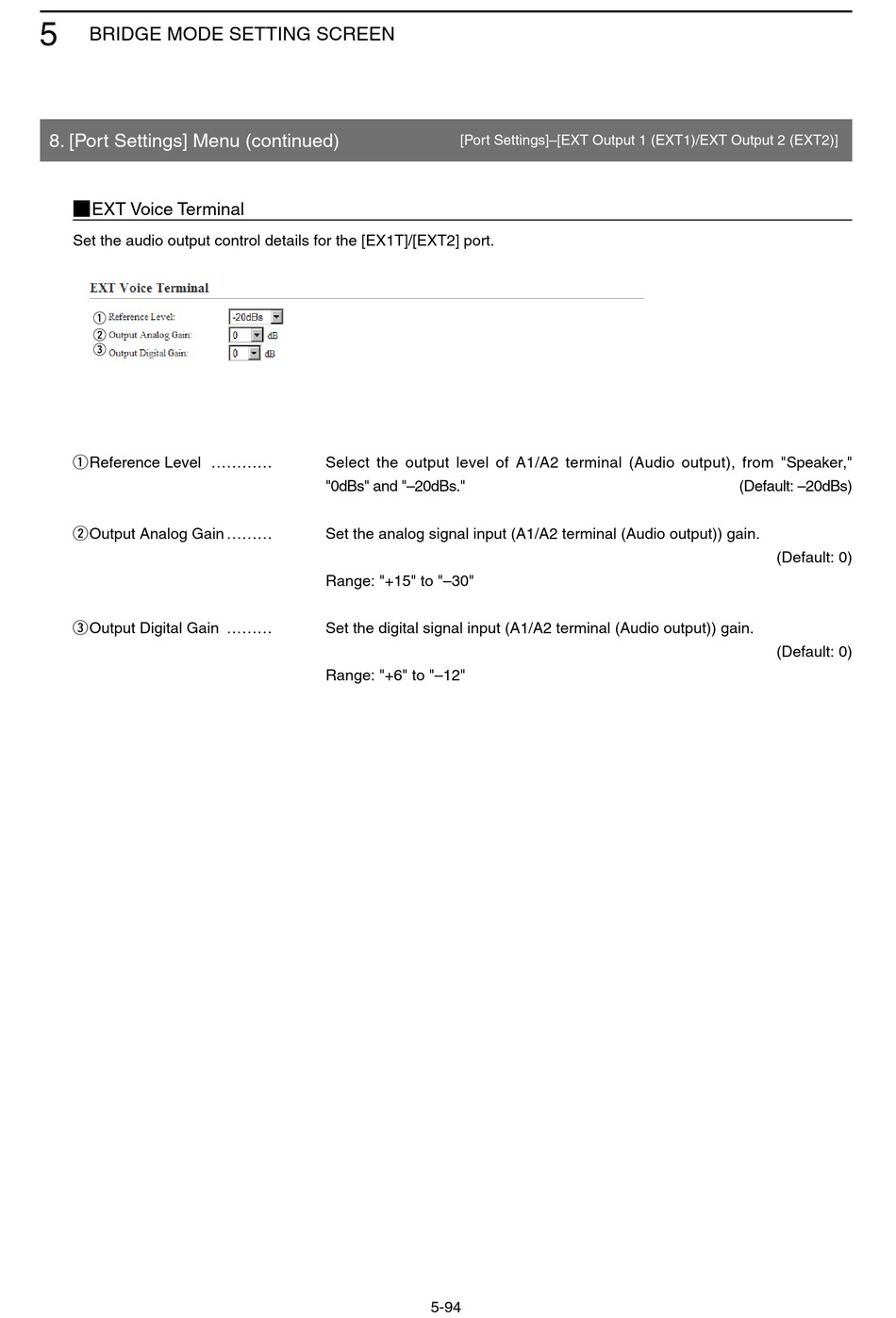

BRIDGE MODE SETTING SCREEN
8. [Port Settings] Menu (continued)

M EXT Voice Terminal

Set the audio output control details for the [EX1T]/[EXT2] port.
q Reference Level ............
w Output Analog Gain .........
e Output Digital Gain .........
[Port Settings]–[EXT Output 1 (EXT1)/EXT Output 2 (EXT2)]
Select the output level of A1/A2 terminal (Audio output), from "Speaker,"
"0dBs" and "–20dBs."
Set the analog signal input (A1/A2 terminal (Audio output)) gain.
Range: "+15" to "–30"
Set the digital signal input (A1/A2 terminal (Audio output)) gain.
Range: "+6" to "–12"
5-94
(Default: –20dBs)
(Default: 0)
(Default: 0)
