Table of Contents
(350)
Removing Engine/Transmission.............................. 3-6
Top-Side Components............................................. 3-8
Removing Top-Side Components ........................... 3-8
Servicing Top-Side Components........................... 3-12
Installing Top-Side Components ........................... 3-19
Left-Side Components .......................................... 3-24
Removing Left-Side Components ......................... 3-24
Installing Left-Side Components ........................... 3-26
Right-Side Components ........................................ 3-27
Removing Right-Side Components....................... 3-27
Servicing Right-Side Components ........................ 3-31
Installing Right-Side Components......................... 3-32
Center Crankcase Components............................ 3-35
Separating Crankcase Halves............................... 3-35
Disassembling Crankcase Half ............................. 3-35
Servicing Center Crankcase Components............ 3-37
Assembling Crankcase Half .................................. 3-40
Joining Crankcase Halves..................................... 3-42
Installing Engine/Transmission.............................. 3-42
Removing Engine/
Transmission
Many service procedures can be performed without
removing the engine/transmission from the frame.
Closely observe the note introducing each sub-section
for this important information.
 AT THIS POINT
If the technician's objective is to service Top-Side
Components, Left-Side Components, or Right-Side
Components, the engine/transmission does not have
to be removed from the frame.
 AT THIS POINT
If the technician's objective is to service/replace
left-side cover oil seals or the oil strainer (from
beneath the engine/transmission), the engine/trans-
mission does not have to be removed from the frame.
Secure the ATV on a support stand to elevate the
wheels.
! WARNING
Make sure the ATV is solidly supported on the support
stand to avoid injury.
1. Remove the front rack, left and right footwells,
and front body panel (see Steering/Frame); then
disconnect the negative battery cable from the bat-
tery.
3-6
www.mymowerparts.com
Manual
Table of Contents
2. Remove the heat shield; then remove the gas tank
(see Fuel/Lubrication/Cooling).

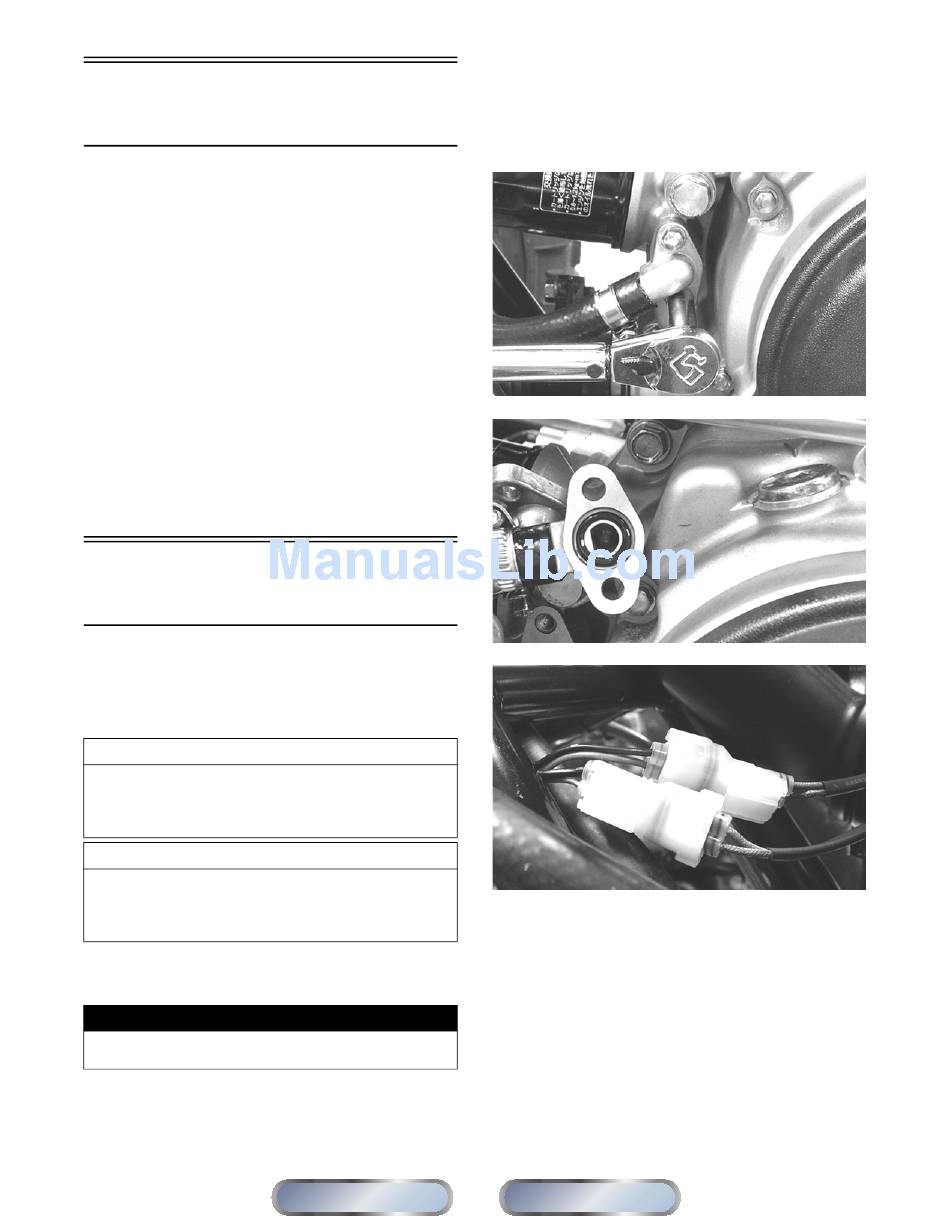

3. Remove the oil fittings from the engine and
account for two O-rings; then disconnect the oil
temperature connector and cooling fan connector.
4. Disconnect the speedometer sensor; then remove the
E-clip securing the shift rod to the shift arm and dis-
connect the shift rod. Account for a bushing and flat
washer.
Section
Table of Contents
KC251
KC250
KC249
