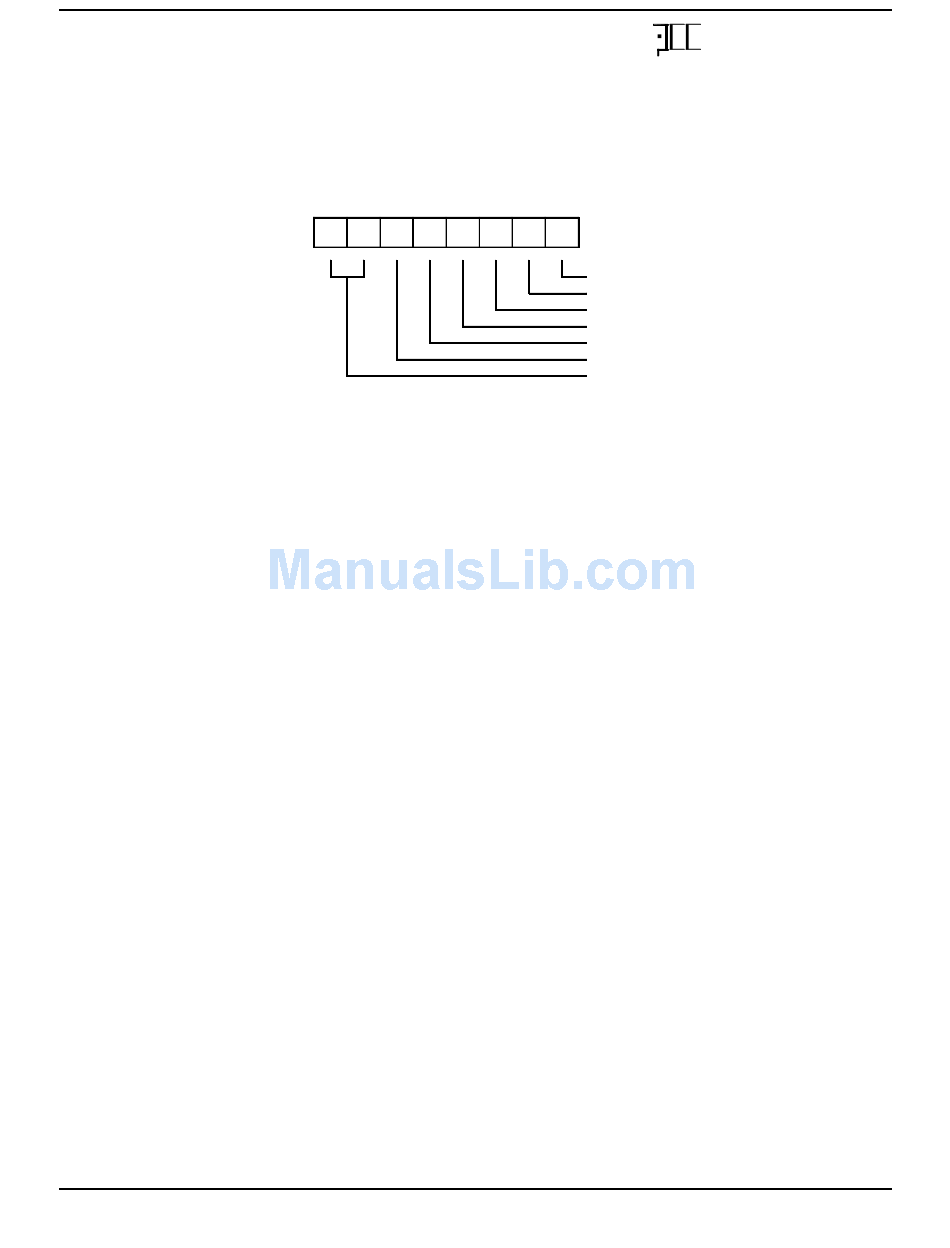

System Status Register 2

7
6
Bit
Name
Function
0
Reserved, mask to zero when read
1
60PE
68060 Parity Error
1
A parity error was detected during a 68060 DRAM read
0
No 68060 Parity error since last read of System Status Register 2
2
SDMAPE
SCSI DMA Parity Error
1
A parity error was detected during a SCSI DMA DRAM read
0
No SCSI DMA Parity error since last read of System Status Register 2
3
SCV64PE
SCV64 Parity Error
1
A parity error was detected during a SCV64 DRAM read
0
No SCV64 Parity error since last read of System Status Register 2
4
EPAKPE
EPAK Master Parity Error
1
A parity error was detected during a EPAK Master DRAM read
0
No EPAK Parity error since last read of System Status Register 2
5
SCSIP
SCSI Present
1
SCSI Controller present
0
SCSI Controller depopulated
7-6
Reserved, mask to zero when read
Address 60000000h
Byte Read Only
5
4
3
2
1
0
Extensible Single Board Computer/Controller User's Manual 65
Performance Computer
Reserved
60PE
SCSIPE
DARFPE
EPAKPE
SCSIP
Reserved
