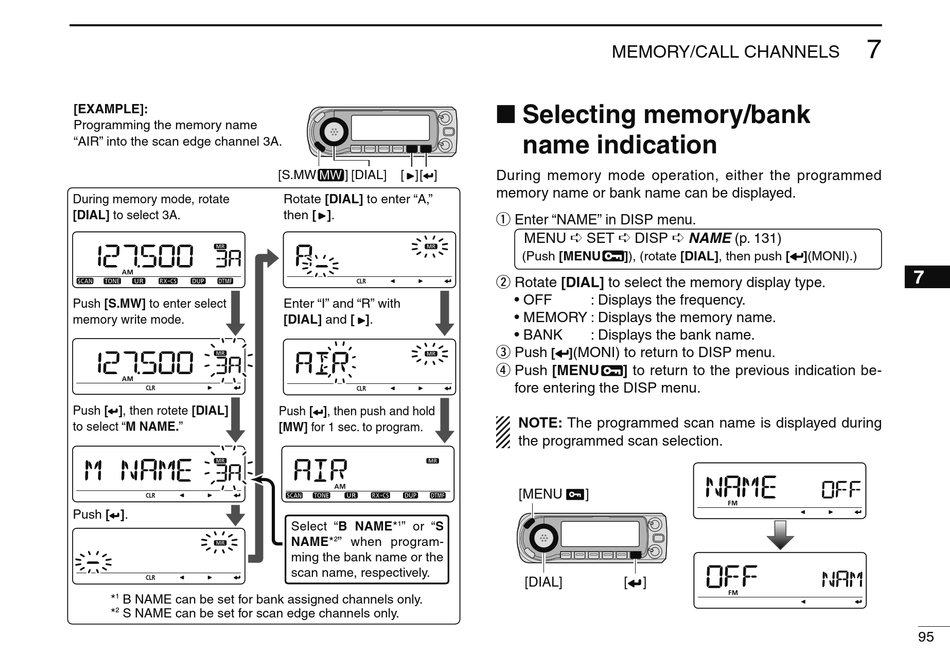

Selecting Memory/Bank Name Indication - Icom ID-E880 Instruction Manual

[EXAMPLE]:
Programming the memory name
"AIR" into the scan edge channel 3A.
During memory mode, rotate
[DIAL] to select 3A.
Push [S.MW] to enter select
memory write mode.
Push [ ], then rotete [DIAL]
to select "M NAME."
Push [ ].
* 1 B NAME can be set for bank assigned channels only.
* 2 S NAME can be set for scan edge channels only.
[S.MW ] [DIAL] [ ] [ ]
Rotate [DIAL] to enter "A,"
then [ ].
Enter "I" and "R" with
[DIAL] and [ ].
Push [ ], then push and hold
[MW] for 1 sec. to program.
1
Select "B NAME* " or "S
NAME* 2 " when program-
ming the bank name or the
scan name, respectively.
MEMORY/CALL CHANNELS
Selecting memory/bank
name indication
During memory mode operation, either the programmed
memory name or bank name can be displayed.
q Enter "NAME" in DISP menu.
MENU SET DISP
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
w Rotate [DIAL] to select the memory display type.
• OFF : Displays the frequency.
• MEMORY : Displays the memory name.
• BANK : Displays the bank name.
e Push
(MONI) to return to DISP menu.
[ ]
r Push [MENU
] to return to the previous indication be-
fore entering the DISP menu.
NOTE: The programmed scan name is displayed during
the programmed scan selection.
[MENU ]
[DIAL] [ ]
7
