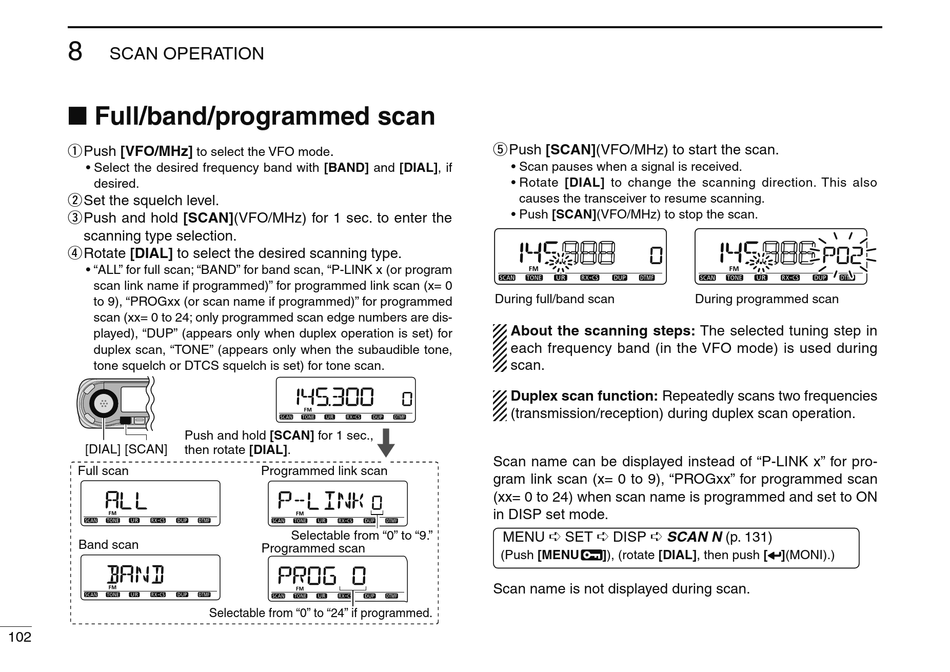

Full/Band/Programmed Scan - Icom ID-E880 Instruction Manual

8
SCAN OPERATION

Full/band/programmed scan

q Push [VFO/MHz]
• Select the desired frequency band with [BAND] and [DIAL], if
desired.
w Set the squelch level.
e Push and hold [SCAN](VFO/MHz) for 1 sec. to enter the
scanning type selection.
r Rotate [DIAL] to select the desired scanning type.
• "ALL" for full scan; "BAND" for band scan, "P-LINK x (or program
scan link name if programmed)" for programmed link scan (x= 0
to 9), "PROGxx (or scan name if programmed)" for programmed
scan (xx= 0 to 24; only programmed scan edge numbers are dis-
played), "DUP" (appears only when duplex operation is set) for
duplex scan, "TONE" (appears only when the subaudible tone,
tone squelch or DTCS squelch is set) for tone scan.
Push and hold [SCAN] for 1 sec.,
[DIAL] [SCAN]
then rotate [DIAL].
Full scan
Band scan
102
.
to select the VFO mode
Programmed link scan
Selectable from "0" to "9."
Programmed scan
Selectable from "0" to "24" if programmed.
t Push [SCAN](VFO/MHz) to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction. This also
causes the transceiver to resume scanning.
• Push [SCAN](VFO/MHz) to stop the scan.
During full/band scan
About the scanning steps: The selected tuning step in
each frequency band (in the VFO mode) is used during
scan.
Duplex scan function: Repeatedly scans two frequencies
(transmission/reception) during duplex scan operation.
Scan name can be displayed instead of "P-LINK x" for pro-
gram link scan (x= 0 to 9), "PROGxx" for programmed scan
(xx= 0 to 24) when scan name is programmed and set to ON
in DISP set mode.
MENU SET DISP SCAN N (p. 131)
(Push [MENU ]), (rotate [DIAL], then push [ ](MONI).)
Scan name is not displayed during scan.
During programmed scan
