5

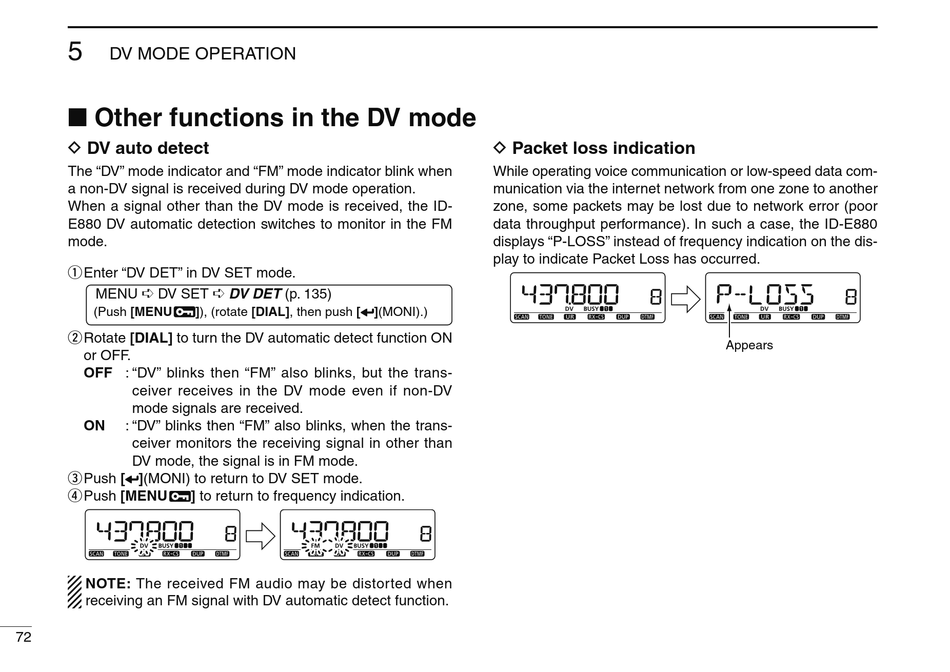

DV MODE OPERATION
Other functions in the DV mode
D DV auto detect
The "DV" mode indicator and "FM" mode indicator blink when
a non-DV signal is received during DV mode operation.
When a signal other than the DV mode is received, the ID-
E880 DV automatic detection switches to monitor in the FM
mode.
q Enter "DV DET" in DV SET mode.
MENU
DV SET
(Push [MENU
w Rotate [DIAL] to turn the DV automatic detect function ON
or OFF.
OFF : "DV" blinks then "FM" also blinks, but the trans-
ceiver receives in the DV mode even if non-DV
mode signals are received.
ON
: "DV" blinks then "FM" also blinks, when the trans-
ceiver monitors the receiving signal in other than
DV mode, the signal is in FM mode.
e Push [ ](MONI) to return to DV SET mode.
r Push [MENU
] to return to frequency indication.
NOTE: The received FM audio may be distorted when
receiving an FM signal with DV automatic detect function.
72
DV DET (p. 135)
]), (rotate [DIAL], then push [ ](MONI).)
D Packet loss indication
While operating voice communication or low-speed data com-
munication via the internet network from one zone to another
zone, some packets may be lost due to network error (poor
data throughput performance). In such a case, the ID-E880
displays "P-LOSS" instead of frequency indication on the dis-
play to indicate Packet Loss has occurred.
Appears
