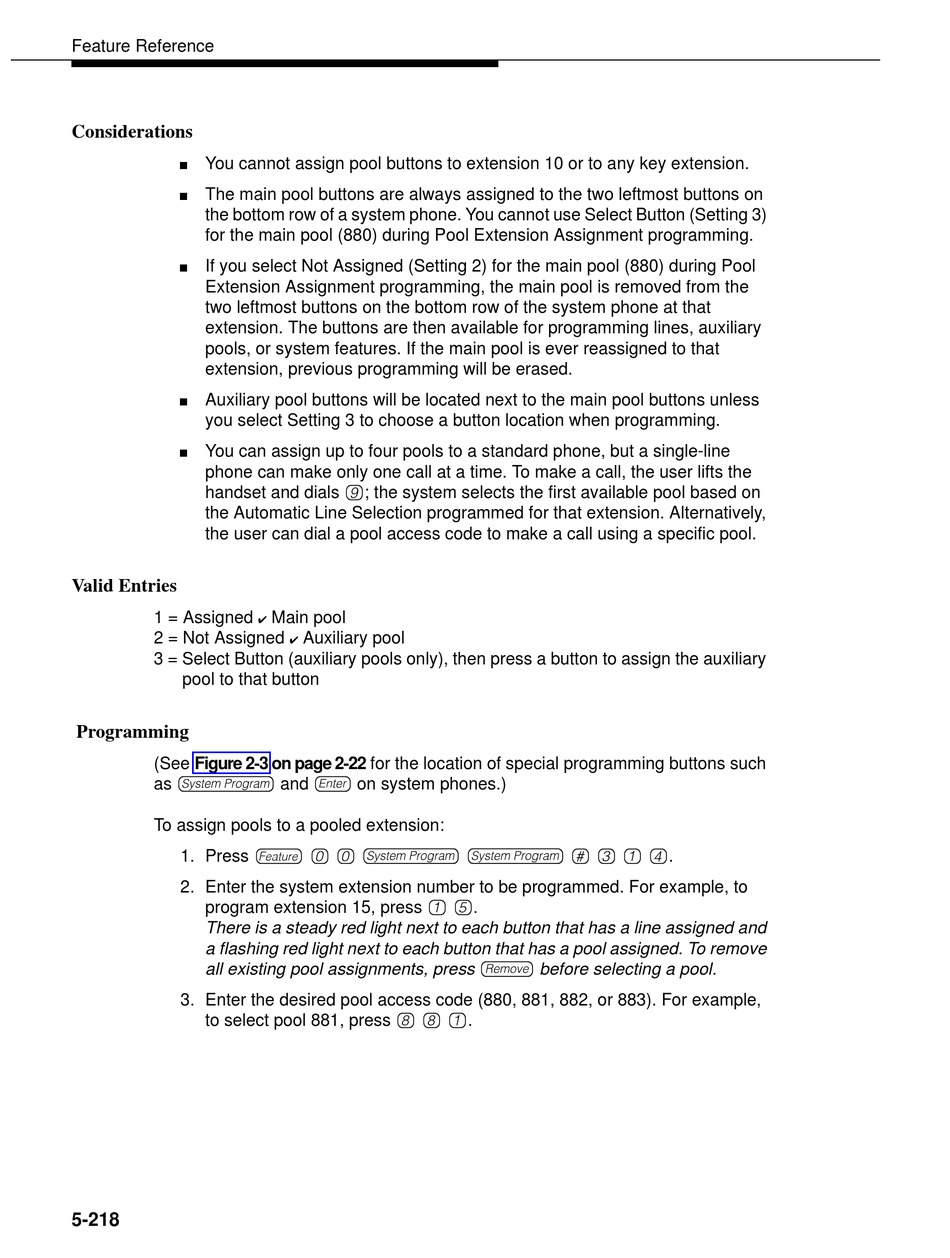

Lucent Technologies PARTNER Advanced Communications System Programming And Use Instructions page 328

Feature Reference
Considerations
You cannot assign pool buttons to extension 10 or to any key extension.
The main pool buttons are always assigned to the two leftmost buttons on
the bottom row of a system phone. You cannot use Select Button (Setting 3)
for the main pool (880) during Pool Extension Assignment programming.
If you select Not Assigned (Setting 2) for the main pool (880) during Pool
Extension Assignment programming, the main pool is removed from the
two leftmost buttons on the bottom row of the system phone at that
extension. The buttons are then available for programming lines, auxiliary
pools, or system features. If the main pool is ever reassigned to that
extension, previous programming will be erased.
Auxiliary pool buttons will be located next to the main pool buttons unless
you select Setting 3 to choose a button location when programming.
You can assign up to four pools to a standard phone, but a single-line
phone can make only one call at a time. To make a call, the user lifts the
handset and dials
the Automatic Line Selection programmed for that extension. Alternatively,
the user can dial a pool access code to make a call using a specific pool.
Valid Entries
1 = Assigned
2 = Not Assigned
3 = Select Button (auxiliary pools only), then press a button to assign the auxiliary
pool to that button
Programming
(See Figure 2-3 on page 2-22 for the location of special programming buttons such
s
as
To assign pools to a pooled extension:
1. Press
2. Enter the system extension number to be programmed. For example, to
program extension 15, press
There is a steady red light next to each button that has a line assigned and
a flashing red light next to each button that has a pool assigned. To remove
all existing pool assignments, press
3. Enter the desired pool access code (880, 881, 882, or 883). For example,
to select pool 881, press
5-218
9
; the system selects the first available pool based on
Main pool
Auxiliary pool
e
and on system phones.)
f 0 0 s s # 3 1 4
1 5
8 8 1
.
r
before selecting a pool.
.
.
