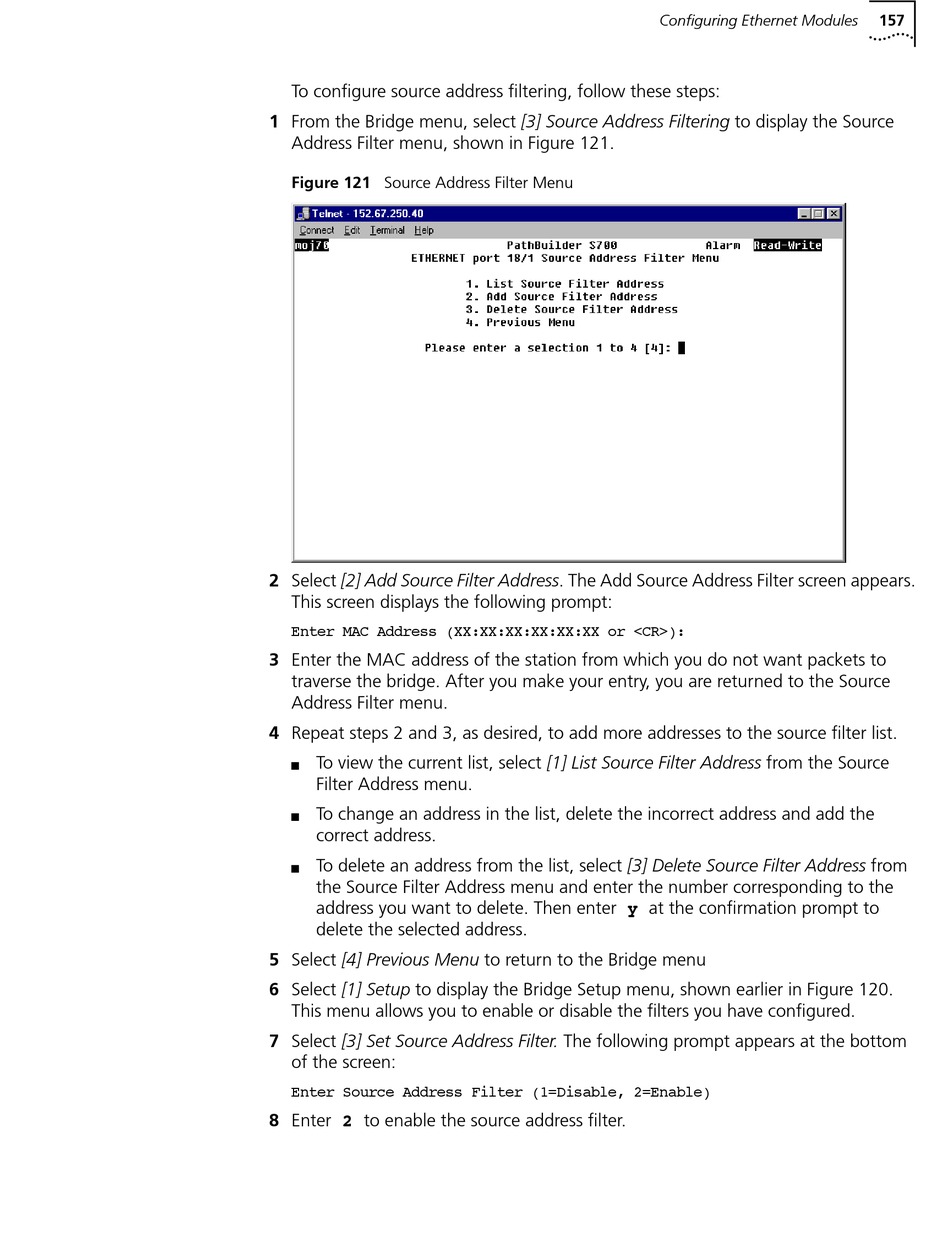

3Com 3C63400-3AC-C - PathBuilder S700 Switch Reference Manual page 171

To configure source address filtering, follow these steps:
1 From the Bridge menu, select [3] Source Address Filtering to display the Source
Address Filter menu, shown in Figure 121.
Figure 121 Source Address Filter Menu
2 Select [2] Add Source Filter Address. The Add Source Address Filter screen appears.
This screen displays the following prompt:
Enter MAC Address (XX:XX:XX:XX:XX:XX or <CR>):
3 Enter the MAC address of the station from which you do not want packets to
traverse the bridge. After you make your entry, you are returned to the Source
Address Filter menu.
4 Repeat steps 2 and 3, as desired, to add more addresses to the source filter list.
To view the current list, select [1] List Source Filter Address from the Source
n
Filter Address menu.
To change an address in the list, delete the incorrect address and add the
n
correct address.
To delete an address from the list, select [3] Delete Source Filter Address from
n
the Source Filter Address menu and enter the number corresponding to the
address you want to delete. Then enter y at the confirmation prompt to
delete the selected address.
5 Select [4] Previous Menu to return to the Bridge menu
6 Select [1] Setup to display the Bridge Setup menu, shown earlier in Figure 120.
This menu allows you to enable or disable the filters you have configured.
7 Select [3] Set Source Address Filter. The following prompt appears at the bottom
of the screen:
Enter Source Address Filter (1=Disable, 2=Enable)
8 Enter 2 to enable the source address filter.
Configuring Ethernet Modules 157
