Step 5: Connect a
Management Terminal
In order to configure application connections and an IP address for SNMP support,
you must connect a management terminal to the PathBuilder S700. To do this, you
use the 10Base T, RS-232, and SLIP ports on the rear of the PathBuilder S700.
To connect a network management terminal, follow these steps:
1 Connect a VT 100 terminal to the RS-232 (console) port.
2 Use the VT100 terminal to input an IP address for the PathBuilder S700. See
"Setting up Communication Parameters" in Chapter 3, for details.
3 Establish communication between the PathBuilder S700 and any management
terminal in one of these ways:
Direct RS-232 using the VT100 terminal or VT100 emulator, as described above
n
Direct 10BaseT using an IP Telnet session
n
SLIP or PPP over a dialup network using an IP Telnet session
n

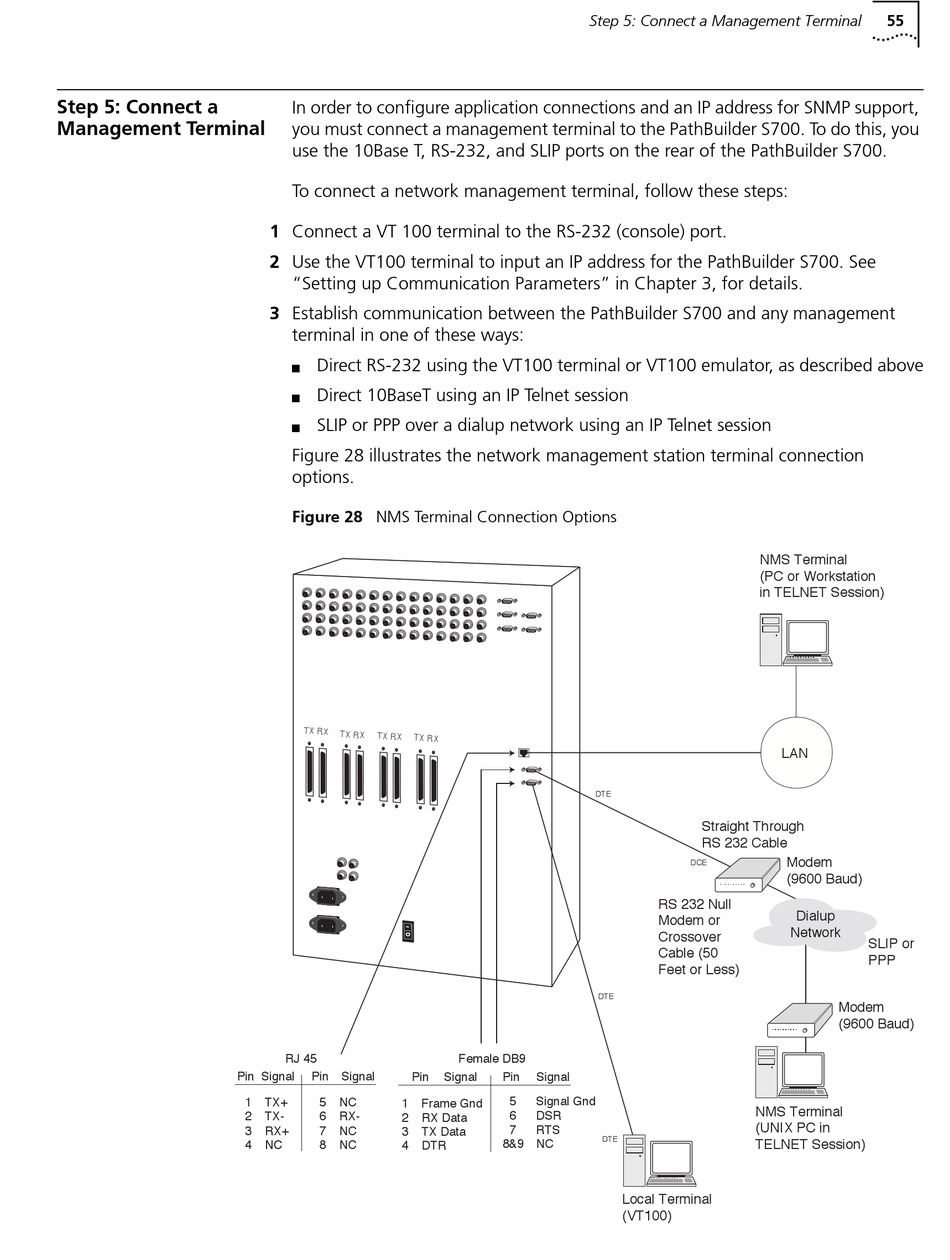

Figure 28 illustrates the network management station terminal connection
options.
Figure 28 NMS Terminal Connection Options
RJ 45
Pin Signal Pin Signal
Pin
1 TX+ 5 NC
1
2 TX- 6 RX-
2
3 RX+ 7 NC
3
4 NC 8 NC
4

Step 5: Connect a Management Terminal

DTE
DTE
Female DB9
Signal Pin Signal
5 Signal Gnd
Frame Gnd
6 DSR
RX Data
7 RTS
TX Data
8&9 NC
DTR
NMS Terminal
(PC or Workstation
in TELNET Session)
Straight Through
RS 232 Cable
DCE
RS 232 Null
Modem or
Crossover
Cable (50
Feet or Less)
NMS Terminal
(UNIX PC in
DTE
TELNET Session)
Local Terminal
(VT100)
55
LAN
Modem
(9600 Baud)
Dialup
Network
SLIP or
PPP
Modem
(9600 Baud)
