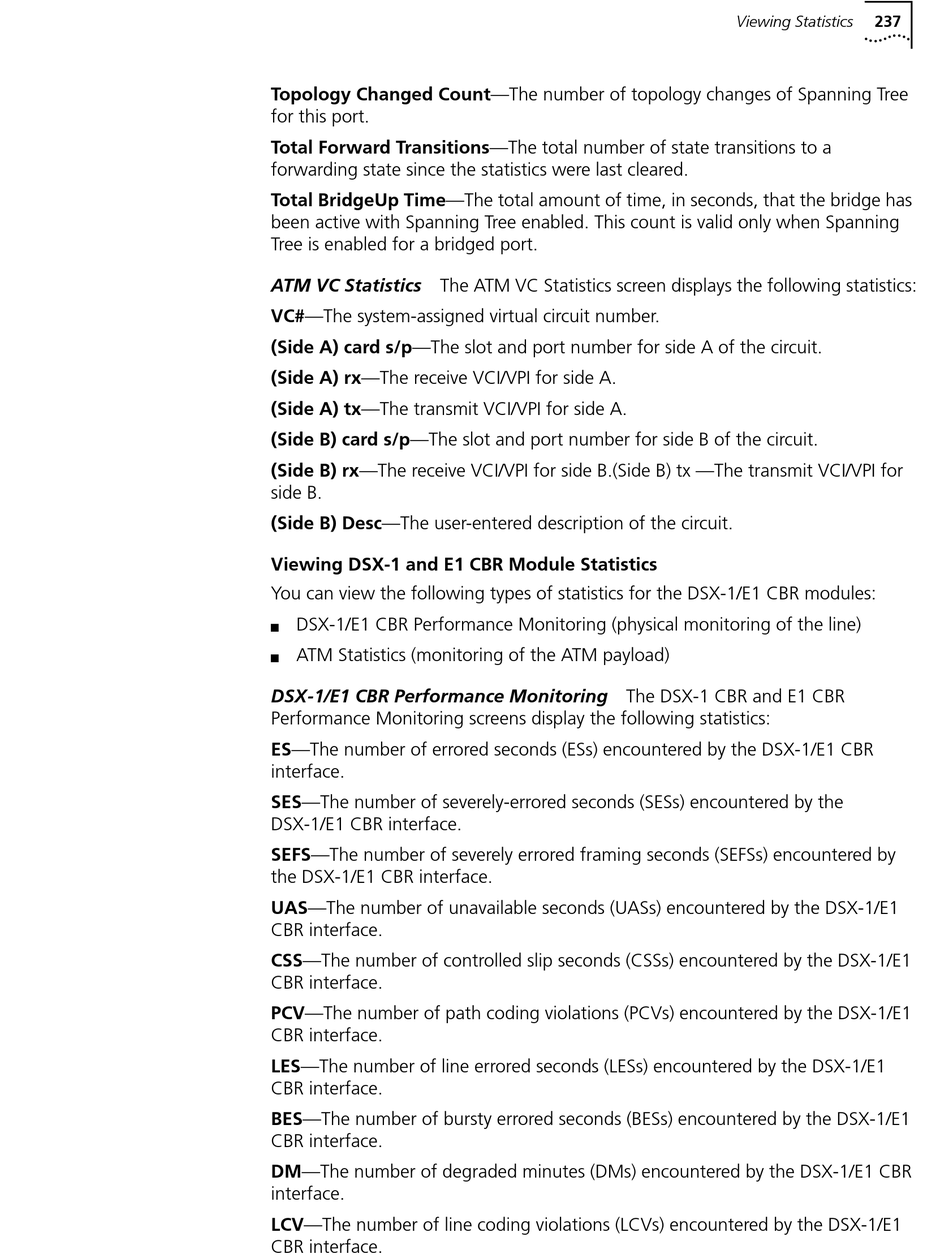

Topology Changed Count—The number of topology changes of Spanning Tree
for this port.
Total Forward Transitions—The total number of state transitions to a
forwarding state since the statistics were last cleared.
Total BridgeUp Time—The total amount of time, in seconds, that the bridge has
been active with Spanning Tree enabled. This count is valid only when Spanning
Tree is enabled for a bridged port.
ATM VC Statistics The ATM VC Statistics screen displays the following statistics:
VC#—The system-assigned virtual circuit number.
(Side A) card s/p—The slot and port number for side A of the circuit.
(Side A) rx—The receive VCI/VPI for side A.
(Side A) tx—The transmit VCI/VPI for side A.
(Side B) card s/p—The slot and port number for side B of the circuit.
(Side B) rx—The receive VCI/VPI for side B.(Side B) tx —The transmit VCI/VPI for
side B.
(Side B) Desc—The user-entered description of the circuit.
Viewing DSX-1 and E1 CBR Module Statistics
You can view the following types of statistics for the DSX-1/E1 CBR modules:
DSX-1/E1 CBR Performance Monitoring (physical monitoring of the line)
n
ATM Statistics (monitoring of the ATM payload)
n
DSX-1/E1 CBR Performance Monitoring The DSX-1 CBR and E1 CBR
Performance Monitoring screens display the following statistics:
ES—The number of errored seconds (ESs) encountered by the DSX-1/E1 CBR
interface.
SES—The number of severely-errored seconds (SESs) encountered by the
DSX-1/E1 CBR interface.
SEFS—The number of severely errored framing seconds (SEFSs) encountered by
the DSX-1/E1 CBR interface.
UAS—The number of unavailable seconds (UASs) encountered by the DSX-1/E1
CBR interface.
CSS—The number of controlled slip seconds (CSSs) encountered by the DSX-1/E1
CBR interface.
PCV—The number of path coding violations (PCVs) encountered by the DSX-1/E1
CBR interface.
LES—The number of line errored seconds (LESs) encountered by the DSX-1/E1
CBR interface.
BES—The number of bursty errored seconds (BESs) encountered by the DSX-1/E1
CBR interface.
DM—The number of degraded minutes (DMs) encountered by the DSX-1/E1 CBR
interface.
LCV—The number of line coding violations (LCVs) encountered by the DSX-1/E1
CBR interface.
Viewing Statistics
237
