162 C 5: C
HAPTER ONFIGURING
P B S700 M
ATH UILDER ODULES
To configure IP over ATM for an Ethernet port, follow these steps:
1 Access the IP over ATM menu for the Ethernet port for which you want to
configure IP over ATM.
a From the main menu, select [2] Configuration Management.
b Select [4] Manage IP over ATM. The Manage IP over ATM port selection menu
appears, as shown in Figure 125.

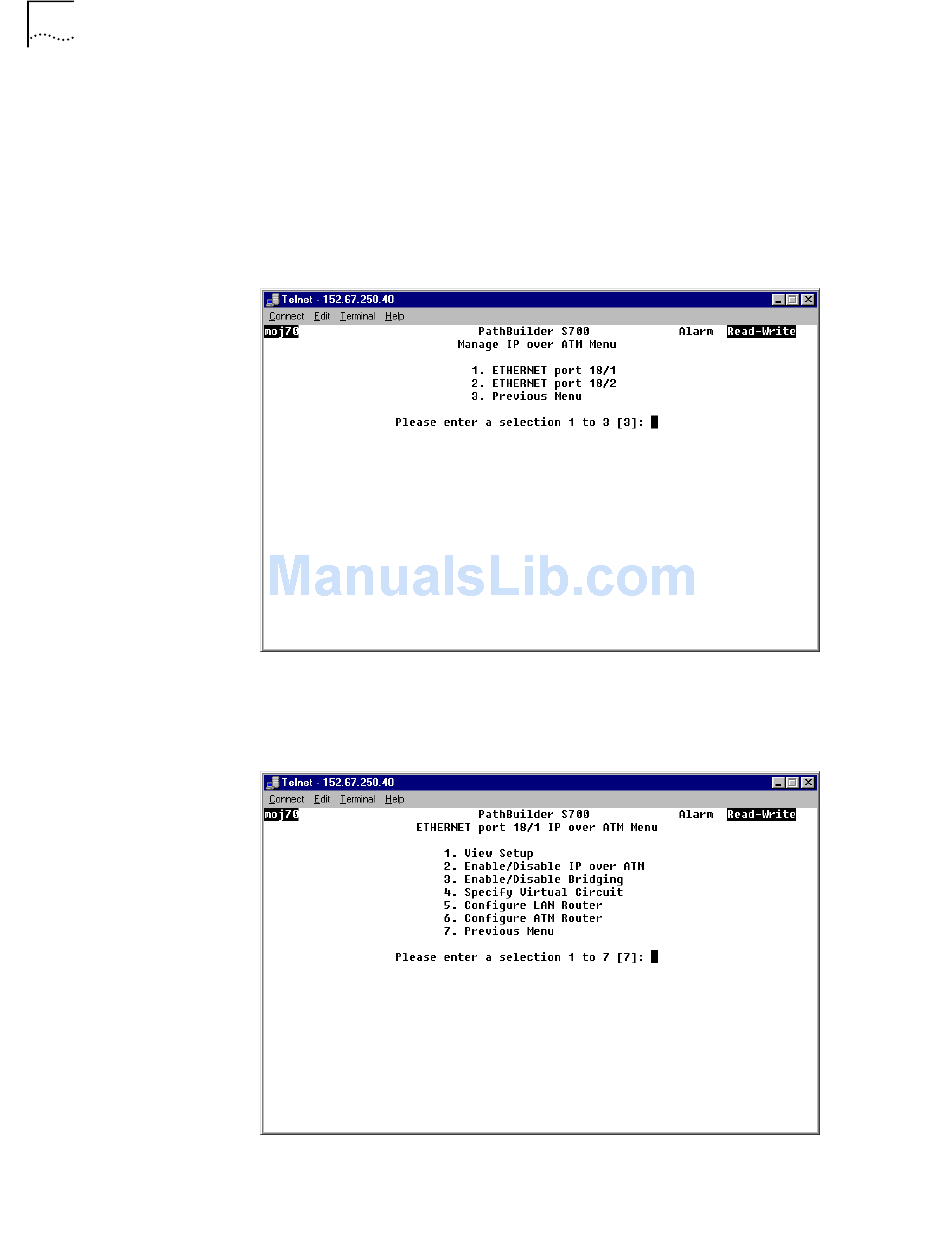

Figure 125 IP over ATM Port Selection Menu
c Enter the number corresponding to the Ethernet port for which you want to
configure IP over ATM. The IP over ATM menu for the selected port appears, as
shown in Figure 126.
Figure 126 IP over ATM Menu
2 If desired, view the current IP over ATM configuration.
a select [1] View Setup. Figure 127 shows a representative IP over ATM Setup
screen.
