Rx Avable Cell Rate (cps)—The available cell rate for active Rx links in this group:
0-28,728 cps for DS1, M=128; 0-35,920 cps for E1, M=128. The available cell rate
indicates how much bandwidth can be carried across the group. It varies,
depending on how many links in the group are actually working.
# Tx Configured Links—The number of configured transmit links.
# Rx Configured Links—The number of configured receive links.
#Tx Active links—The number of active transmit links.
#Rx Active links—The number of active receive links.
The only type of configuration you can perform on a DS1 UNI or E1 UNI card is to
put it in service or out of service. To put a DS1/E1 UNI card in service or out of
service, follow these steps:
1 From the List Card menu, shown earlier in Figure 81, select the number
corresponding to the slot in which the DS1 UNI or E1 UNI card is installed to
display the DS1 UNI or E1 UNI Configuration menu, shown earlier in Figure 95.
2 From the DS1 UNI or E1 UNI Configuration menu, select [5] Card Information to
display the Card Configuration menu. Figure 112 shows the E1 UNI Card
Configuration menu. The DS1 UNI Card Configuration menu is the same.
3 Select [1] Set Admin Service and enter [2] to put the card in service or [1] to take it
out of service.

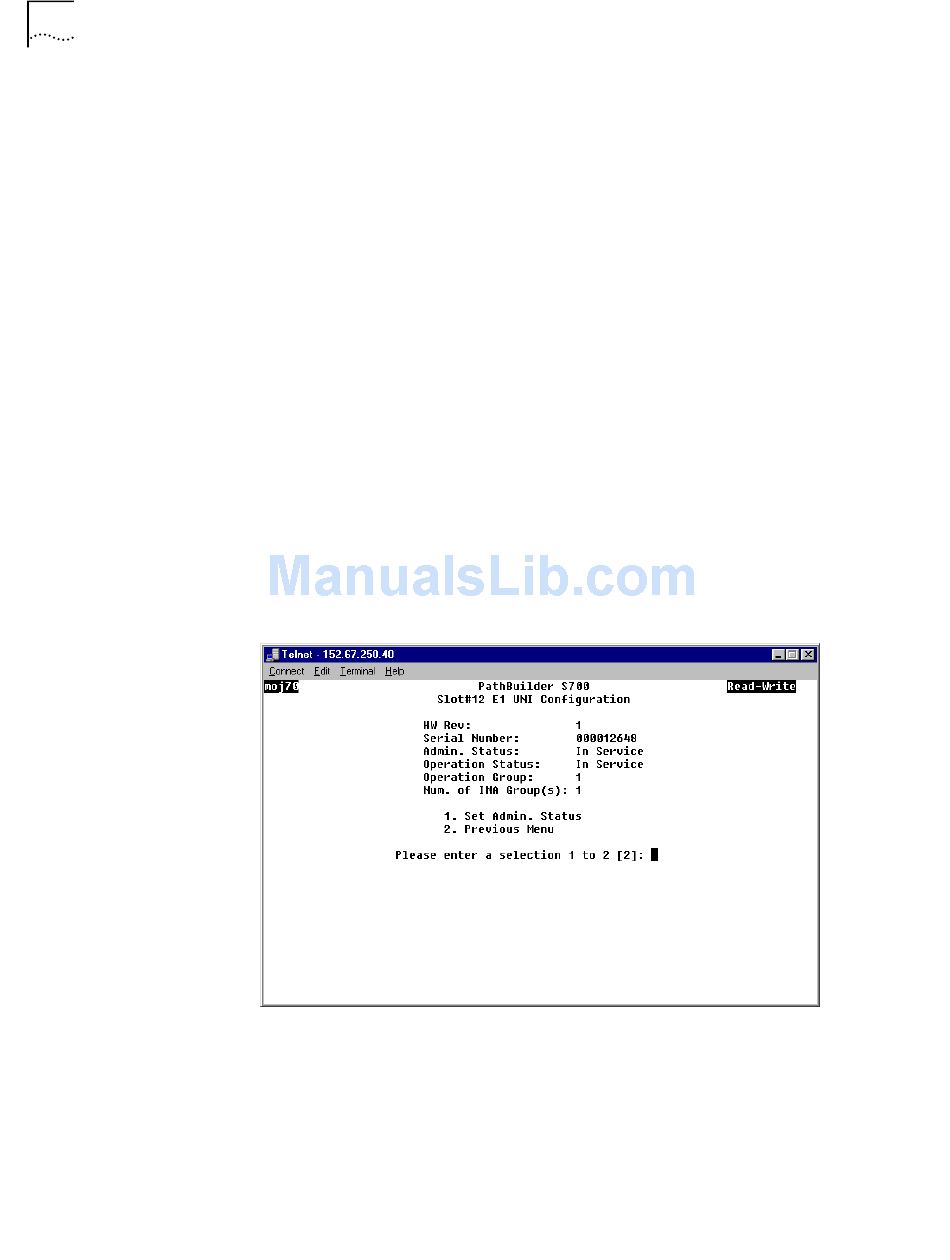

Figure 112 E1 UNI Card Configuration Menu
In addition to the current DS1/E1 card configuration, the DS1/E1 UNI Card
Configuration menu lists the following group-related information:
Operation Group—The active IMA groups in the card.
Num. of IMA Group(s)—The number of IMA groups created (but not necessarily
active) on the card.
, P
,
A
ORTS
AND
PPLICATIONS
