3

Logging On

G
ETTING
This chapter tells you how to log on to the PathBuilder S700 WAN access switch
(PathBuilder S700), how to use the PathBuilder S700 menus, and how to perform
initial configuration using the NMS menus. It contains the following sections:
Logging On
n
Using the Menus
n
Performing Initial Configuration
n
You enter initial configuration information via the local VT100 user interface.

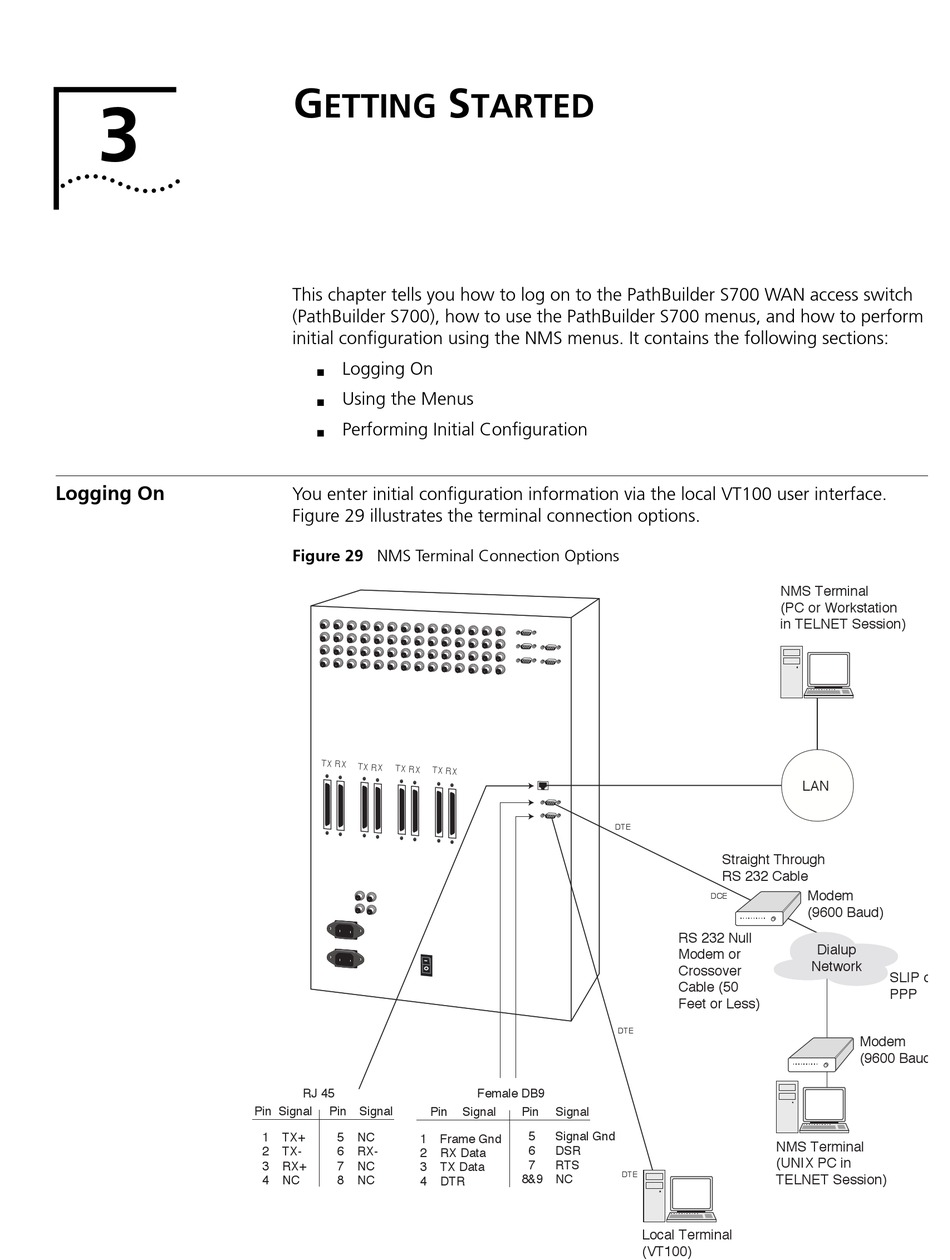

Figure 29 illustrates the terminal connection options.
Figure 29 NMS Terminal Connection Options
RJ 45
Pin Signal Pin Signal
Pin
1 TX+ 5 NC
1
2 TX- 6 RX-
2
3 RX+ 7 NC
3
4 NC 8 NC
4
S
TARTED
DTE
DTE
Female DB9
Signal Pin Signal
5 Signal Gnd
Frame Gnd
6 DSR
RX Data
7 RTS
TX Data
8&9 NC
DTR
NMS Terminal
(PC or Workstation
in TELNET Session)
LAN
Straight Through
RS 232 Cable
DCE
RS 232 Null
Modem or
Crossover
Cable (50
Feet or Less)
NMS Terminal
(UNIX PC in
DTE
TELNET Session)
Local Terminal
(VT100)
Modem
(9600 Baud)
Dialup
Network
SLIP o
PPP
Modem
(9600 Baud
