Viewing IMA Group
Status
1 From the List Card menu, shown earlier in Figure 81, select the number
2 Select [4] IMA Group Status to open the IMA Group Status Selection menu, shown
3 Enter the number corresponding to the group for which you want to view IMA
Rx Test Pattern—The received test pattern received: 0-254; 255 indicates that no
pattern has been received.
Test Procedure—The status of the test procedure: disabled, operating, or link
failed.
To view IMA status for a selected group, follow these steps:
corresponding to the slot in which the DS1 UNI or E1 UNI card is installed to open
the UNI Configuration menu, shown earlier in Figure 95.
in Figure 110. The IMA Group Status Selection menu lists existing IMA groups.

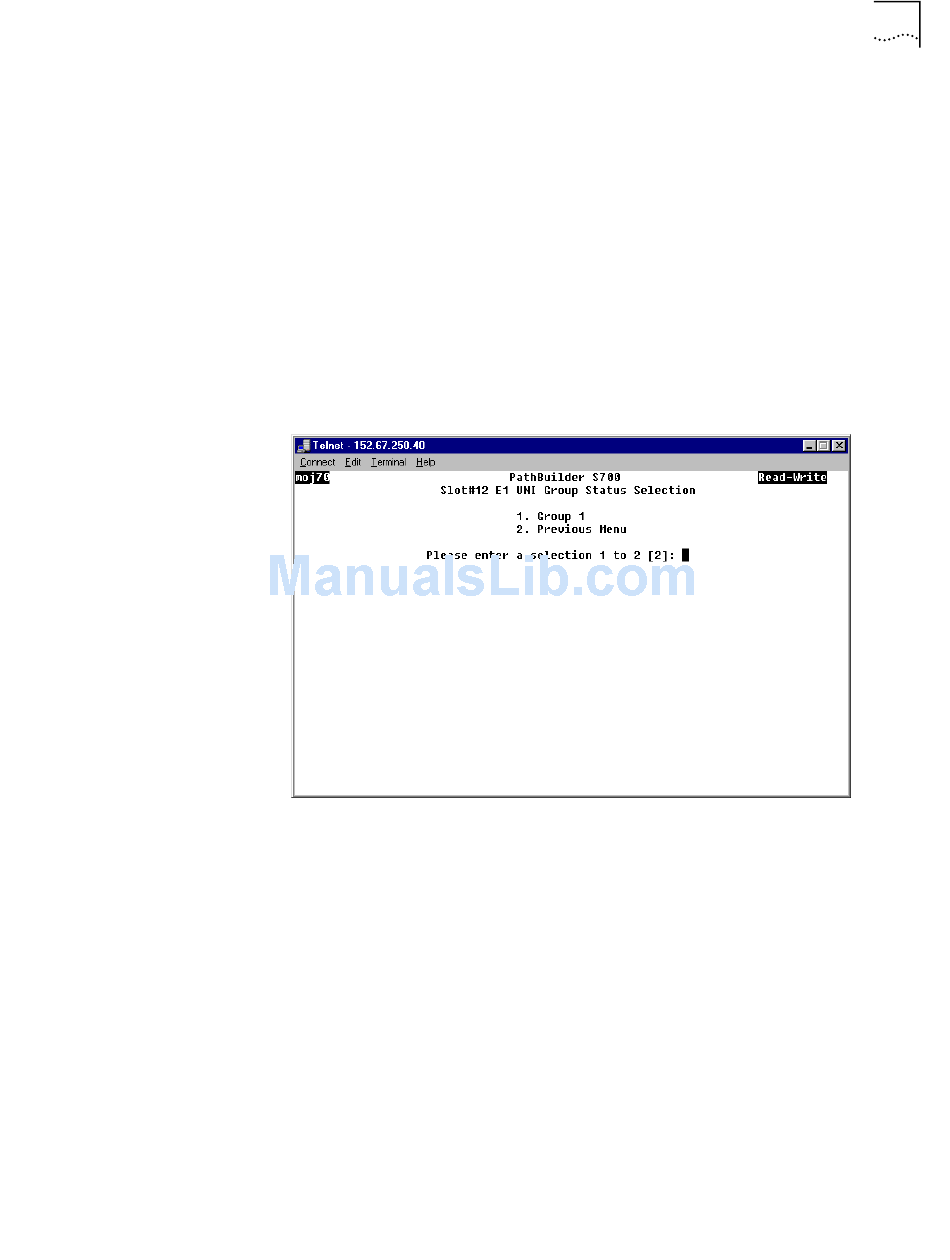

Figure 110 Group Status Selection Menu
status. The IMA Group Status screen for that group appears, as shown in
Figure 111.
