2 From the Manage Bridge menu, select [1] Bridge Configuration to display the
Bridge Configuration menu, shown in Figure 117. The current aging timer setting
is displayed below the menu title (3 minutes in the sample menu shown in the
figure).

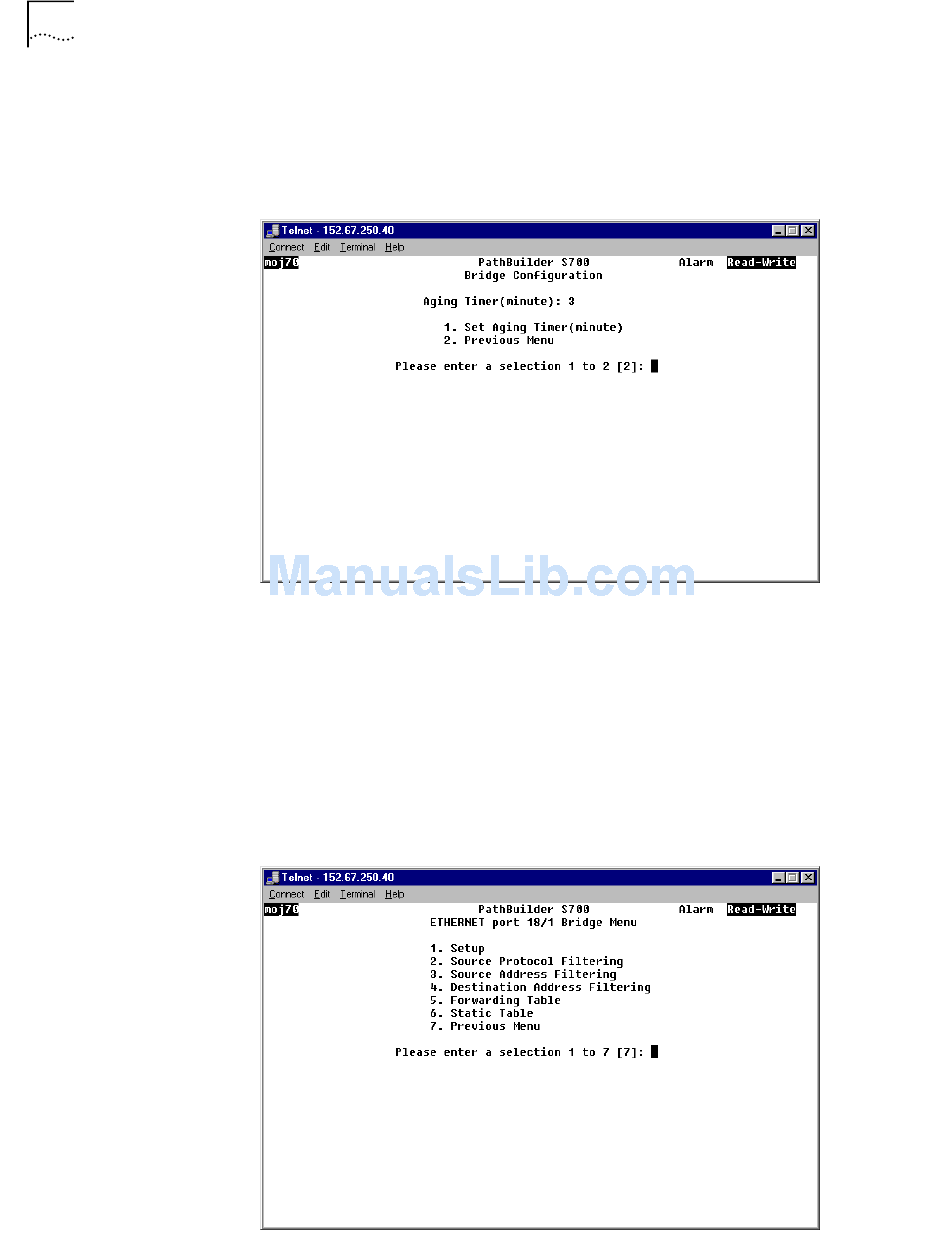

Figure 117 Bridge Configuration Menu
3 Select [1] Set Aging Timer. The following prompt appears at the bottom of the
screen:
Enter Aging Timer (minute):
4 Enter the desired timer interval, in minutes.
5 Select [2] Previous Menu to return to the Manage Bridge menu.
6 From the Manage Bridge menu, select the number corresponding to the slot and
port combination for which you want to configure a bridge. The Bridge Menu for
the selected slot/port combination appears. Figure 118 shows a representative
Bridge menu.
Figure 118 Bridge Menu
