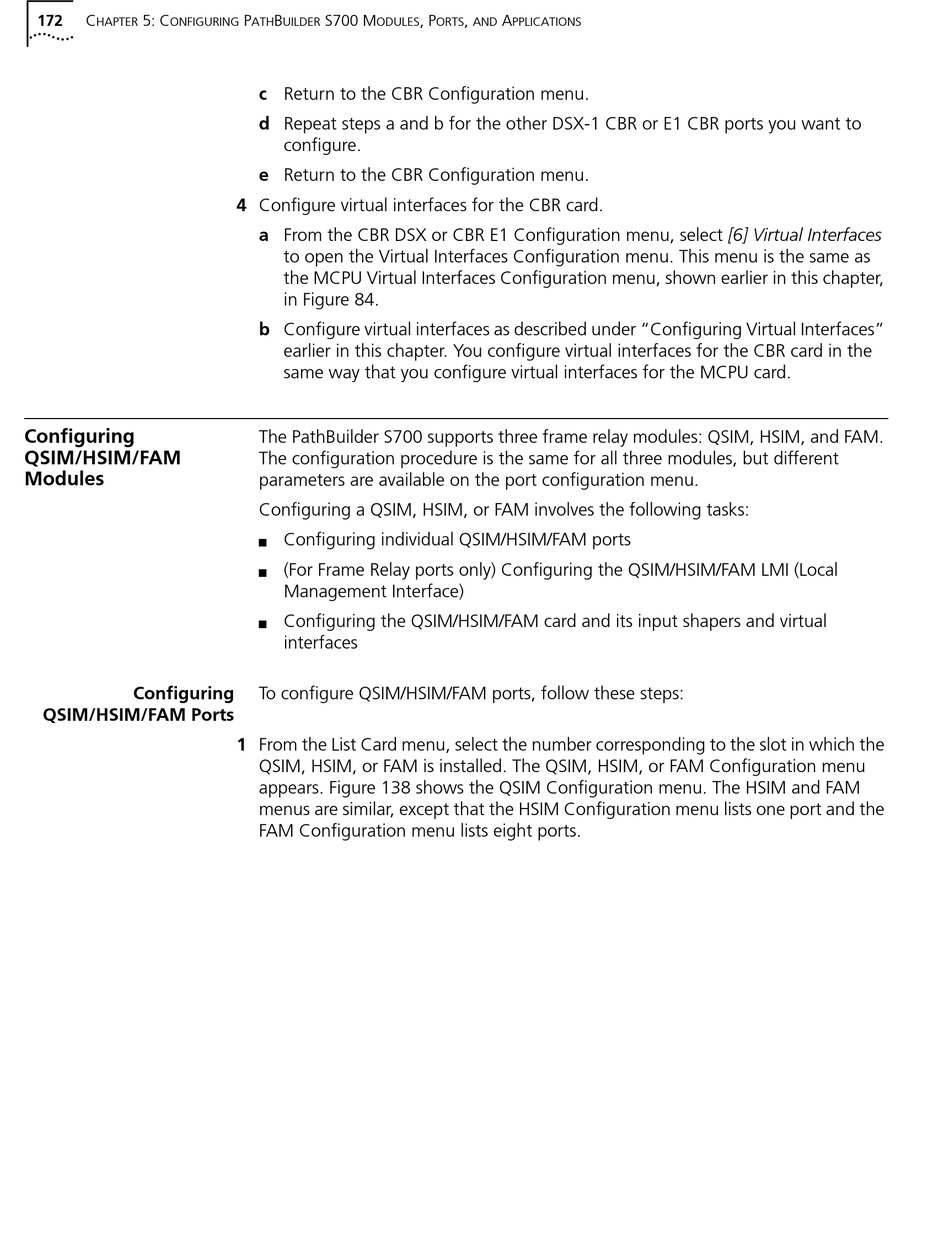

172 C 5: C
HAPTER ONFIGURING
Configuring
QSIM/HSIM/FAM
Modules
Configuring
QSIM/HSIM/FAM Ports
P B S700 M
ATH UILDER ODULES
c Return to the CBR Configuration menu.
d Repeat steps a and b for the other DSX-1 CBR or E1 CBR ports you want to
configure.
e Return to the CBR Configuration menu.
4 Configure virtual interfaces for the CBR card.
a From the CBR DSX or CBR E1 Configuration menu, select [6] Virtual Interfaces
to open the Virtual Interfaces Configuration menu. This menu is the same as
the MCPU Virtual Interfaces Configuration menu, shown earlier in this chapter,
in Figure 84.
b Configure virtual interfaces as described under "Configuring Virtual Interfaces"
earlier in this chapter. You configure virtual interfaces for the CBR card in the
same way that you configure virtual interfaces for the MCPU card.
The PathBuilder S700 supports three frame relay modules: QSIM, HSIM, and FAM.
The configuration procedure is the same for all three modules, but different
parameters are available on the port configuration menu.
Configuring a QSIM, HSIM, or FAM involves the following tasks:
Configuring individual QSIM/HSIM/FAM ports
n
(For Frame Relay ports only) Configuring the QSIM/HSIM/FAM LMI (Local
n
Management Interface)
Configuring the QSIM/HSIM/FAM card and its input shapers and virtual
n
interfaces
To configure QSIM/HSIM/FAM ports, follow these steps:
1 From the List Card menu, select the number corresponding to the slot in which the
QSIM, HSIM, or FAM is installed. The QSIM, HSIM, or FAM Configuration menu
appears. Figure 138 shows the QSIM Configuration menu. The HSIM and FAM
menus are similar, except that the HSIM Configuration menu lists one port and the
FAM Configuration menu lists eight ports.
, P , A
ORTS AND PPLICATIONS
