Connecting an
OC3/STM-1 UNI Module
Slot 1
Connect the OC3/STM-1 UNI module using the Internal SC type connector. As
shown in Figure 10, the OC3-STM-1 UNI module supports two types of fiber optic
cable.
Use multi-mode cable to generate UNI traffic over a port interface.
n
Use single-mode cable to generate UNI traffic over a trunk interface.
n

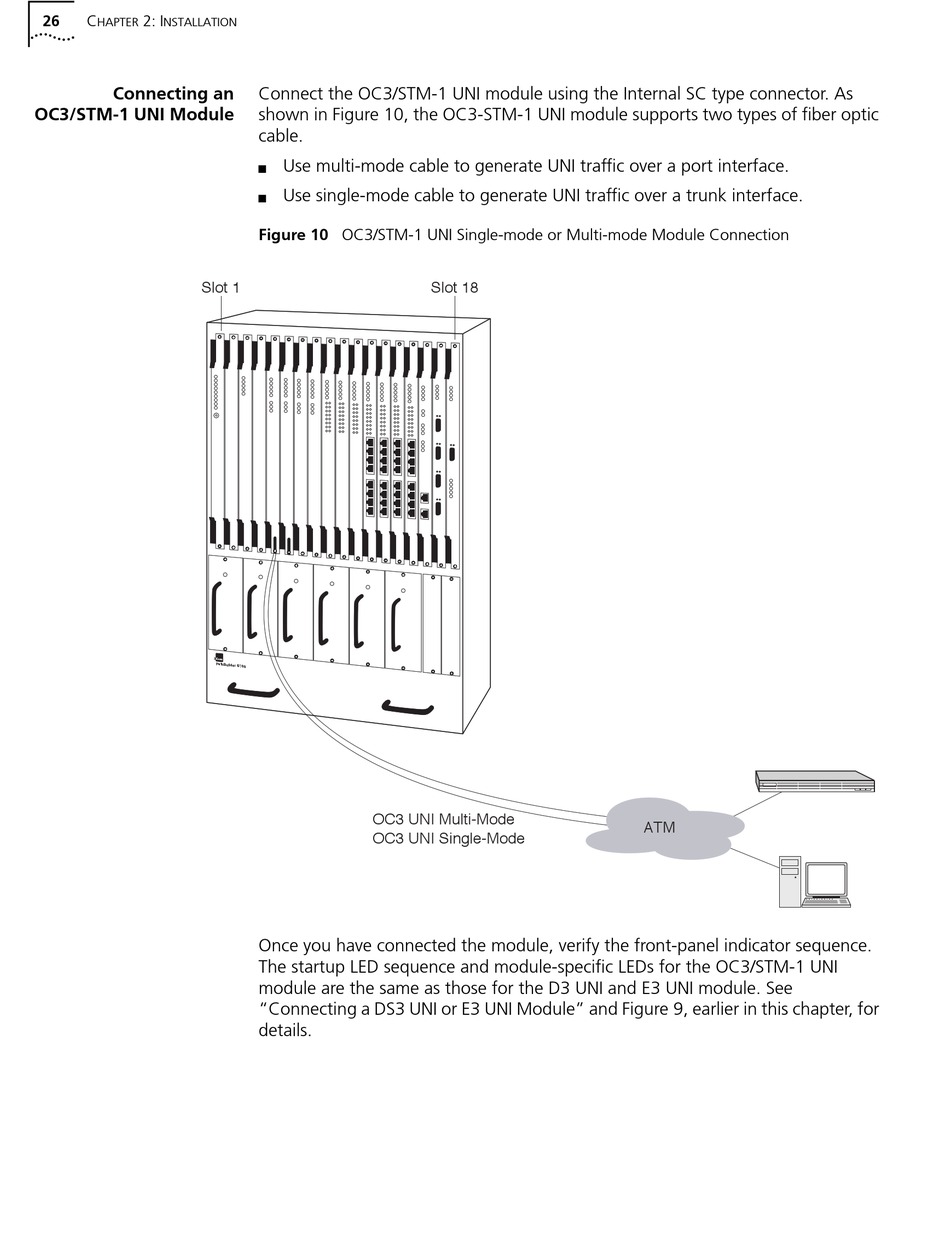

Figure 10 OC3/STM-1 UNI Single-mode or Multi-mode Module Connection
Slot 18
OC3 UNI Multi-Mode
OC3 UNI Single-Mode
Once you have connected the module, verify the front-panel indicator sequence.
The startup LED sequence and module-specific LEDs for the OC3/STM-1 UNI
module are the same as those for the D3 UNI and E3 UNI module. See
"Connecting a DS3 UNI or E3 UNI Module" and Figure 9, earlier in this chapter, for
details.
ATM
