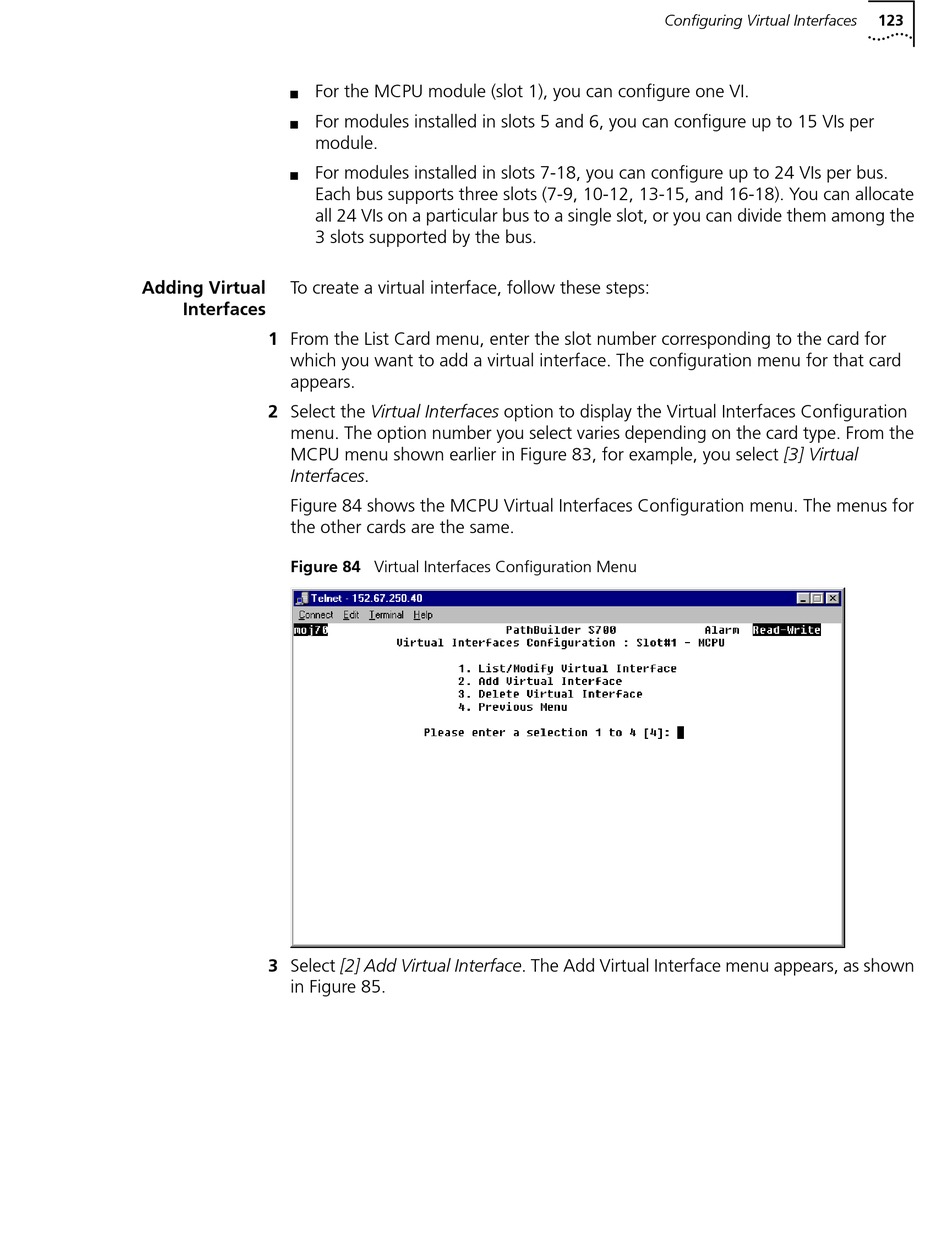

For the MCPU module (slot 1), you can configure one VI.
n
For modules installed in slots 5 and 6, you can configure up to 15 VIs per
n
module.
For modules installed in slots 7-18, you can configure up to 24 VIs per bus.
n
Each bus supports three slots (7-9, 10-12, 13-15, and 16-18). You can allocate
all 24 VIs on a particular bus to a single slot, or you can divide them among the
3 slots supported by the bus.
Adding Virtual To create a virtual interface, follow these steps:
Interfaces
1 From the List Card menu, enter the slot number corresponding to the card for
which you want to add a virtual interface. The configuration menu for that card
appears.
2 Select the Virtual Interfaces option to display the Virtual Interfaces Configuration
menu. The option number you select varies depending on the card type. From the
MCPU menu shown earlier in Figure 83, for example, you select [3] Virtual
Interfaces.
Figure 84 shows the MCPU Virtual Interfaces Configuration menu. The menus for
the other cards are the same.
Figure 84 Virtual Interfaces Configuration Menu
3 Select [2] Add Virtual Interface. The Add Virtual Interface menu appears, as shown
in Figure 85.
Configuring Virtual Interfaces 123
