100 C 4: P B
HAPTER ATH UILDER
S700 M A
ODULE AND PPLICATION

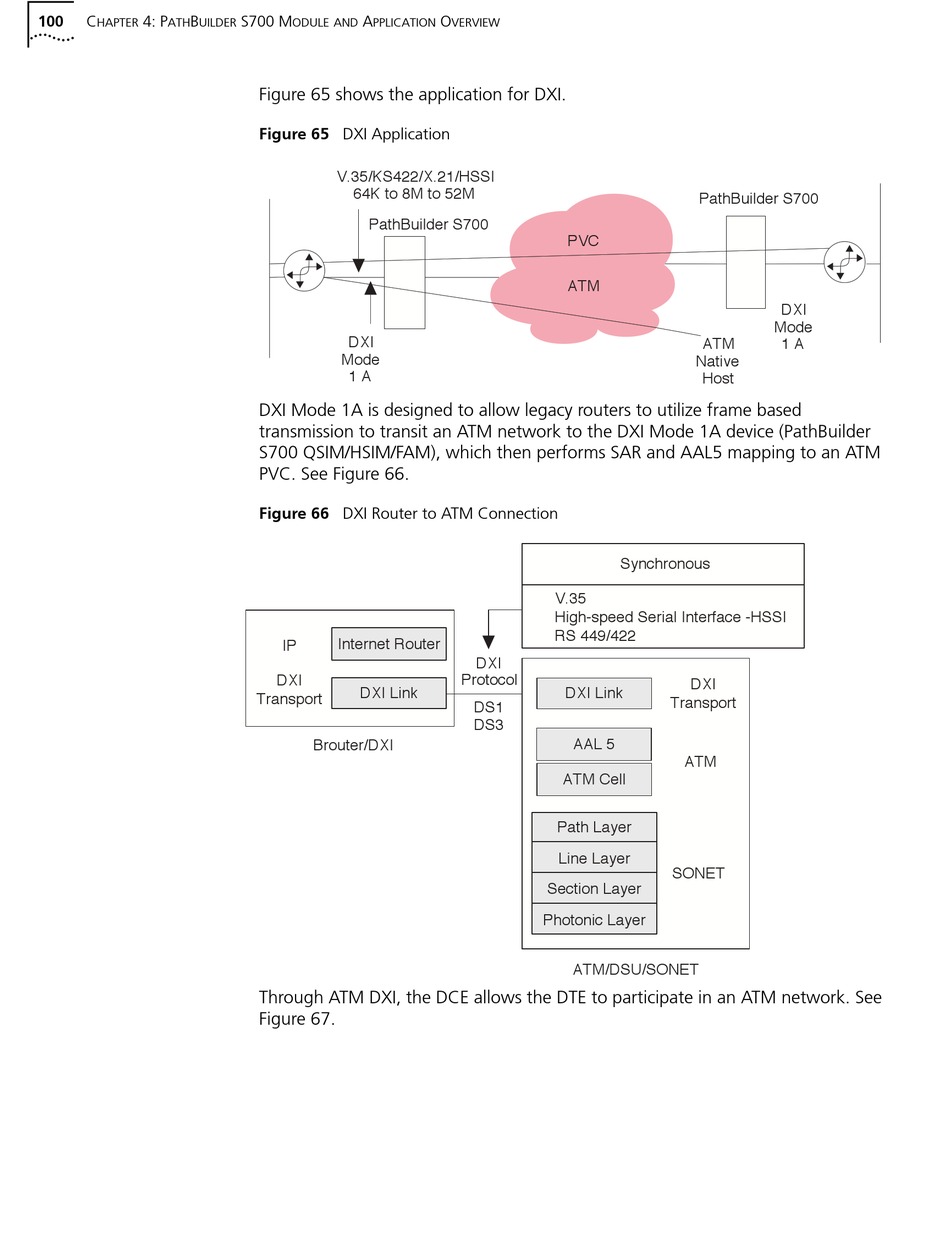

Figure 65 shows the application for DXI.
Figure 65 DXI Application
V.35/KS422/X.21/HSSI
64K to 8M to 52M
PathBuilder S700
DXI
Mode
1 A
DXI Mode 1A is designed to allow legacy routers to utilize frame based
transmission to transit an ATM network to the DXI Mode 1A device (PathBuilder
S700 QSIM/HSIM/FAM), which then performs SAR and AAL5 mapping to an ATM
PVC. See Figure 66.
Figure 66 DXI Router to ATM Connection
Internet Router
IP
DXI
DXI Link
Transport
Brouter/DXI
Internet Router
IP
DXI
DXI Link
Transport
Brouter/DXI
Through ATM DXI, the DCE allows the DTE to participate in an ATM network. See
Figure 67.
